2273109 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

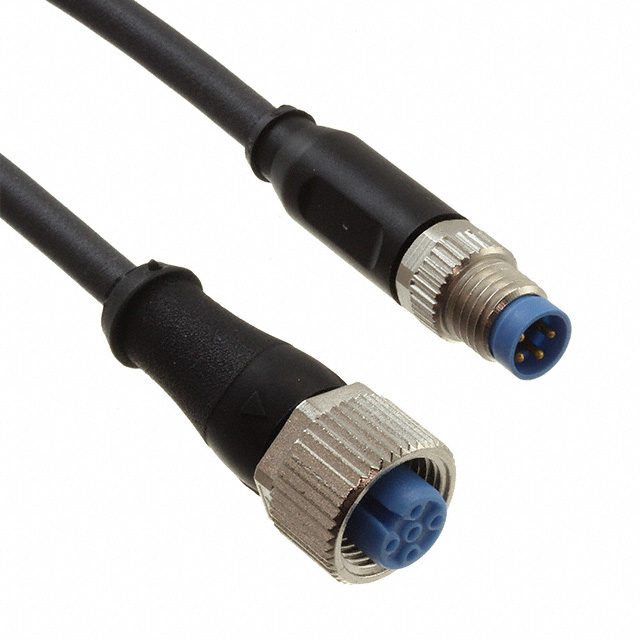

CIRC CBL 4POS RCPT TO PLUG 3.28'

Part	1st Connector Orientation	Color	Cable Material	1st Connector Number of Positions	2nd Connector Number of Positions	1st Connector Number of Positions Loaded	1st Connector Shell Size - Insert	Cable Type	1st Connector Gender	Length [x]	Length [x]	2nd Connector Number of Positions Loaded	2nd Connector Type	1st Connector Type	Usage	2nd Connector Shell Size - Insert	Shielding	1st Connector Mounting Type	2nd Connector Mounting Type	Ingress Protection	Assembly Configuration	Length	Length
TE Connectivity Raychem Cable Protection 2273109-3	AA	Black	Polyurethane (PUR)	4	4	All	M12	Round	Female Sockets	1 m	3.28 ft	All	Plug	Receptacle	Industrial Environments	M8	Unshielded	Free Hanging (In-Line)	Free Hanging (In-Line)	IP65 IP67	Standard
TE Connectivity Raychem Cable Protection 1-2273109-5	AA	Black	Polyvinyl Chloride (PVC)	4	4	All	M12	Round	Female Sockets	2 m	6.56 ft	All	Plug	Receptacle	Industrial Environments	M8	Unshielded	Free Hanging (In-Line)	Free Hanging (In-Line)	IP65 IP67	Standard
TE Connectivity Raychem Cable Protection 1-2273109-2	AA	Black	Polyvinyl Chloride (PVC)	4	4	All	M12	Round	Female Sockets			All	Plug	Receptacle	Industrial Environments	M8	Unshielded	Free Hanging (In-Line)	Free Hanging (In-Line)	IP65 IP67	Standard	600 mm	1.97 ft
TE Connectivity Raychem Cable Protection 2273109-2	AA	Black	Polyurethane (PUR)	4	4	All	M12	Round	Female Sockets			All	Plug	Receptacle	Industrial Environments	M8	Unshielded	Free Hanging (In-Line)	Free Hanging (In-Line)	IP65 IP67	Standard	600 mm	1.97 ft
TE Connectivity Raychem Cable Protection 2273109-4	AA	Black	Polyurethane (PUR)	4	4	All	M12	Round	Female Sockets			All	Plug	Receptacle	Industrial Environments	M8	Unshielded	Free Hanging (In-Line)	Free Hanging (In-Line)	IP65 IP67	Standard	1.5 m	4.92 '
