174973 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

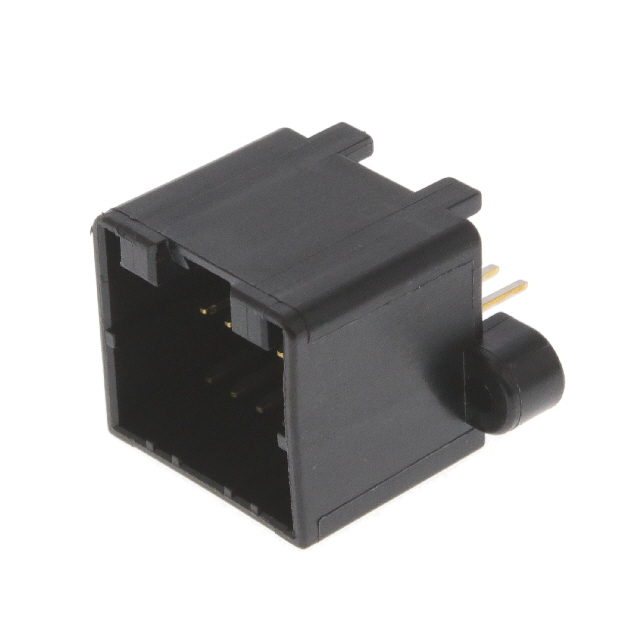

CONN HEADER VERT 12POS 2.5MM
| Part | Style | Contact Type | Insulation Material | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Current Rating (Amps) | Applications | Row Spacing - Mating [x] | Row Spacing - Mating | Number of Positions | Contact Finish - Post | Features | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Termination | Insulation Color | Contact Material | Contact Shape | Mounting Type | Number of Rows | Contact Length - Mating | Contact Length - Mating | Shrouding | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Board to Cable/Wire | Tab | Polybutylene Terephthalate (PBT) | All | -30 ░C | 105 ░C | Locking Ramp | Varies by Wire Gauge | Automotive General Purpose | 0.205 in | 5.2 mm | 12 | Tin | Mounting Flange | 2.5 mm | 0.098 in | 0.146 in | 3.7 mm | Solder | Black | Brass | Rectangular | Through Hole | 2 | 7 mm | 0.276 in | Shrouded - 4 Wall | 0.756 in | 19.2 mm |
