TPS53667 Series
Manufacturer: Texas Instruments
Beta
⌘K
EVAIL MOD
| Part | Regulator Topology | Supplied Contents | Outputs and Type | Outputs and Type | Main Purpose | Board Type | Frequency - Switching | Current - Output | Utilized IC / Part | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Output Configuration | Clock Sync | Serial Interfaces | Package / Case | Supplier Device Package | Frequency - Switching [Max] | Frequency - Switching [Min] | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Topology | Output Type | Output Phases | Number of Outputs | Function | Synchronous Rectifier | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

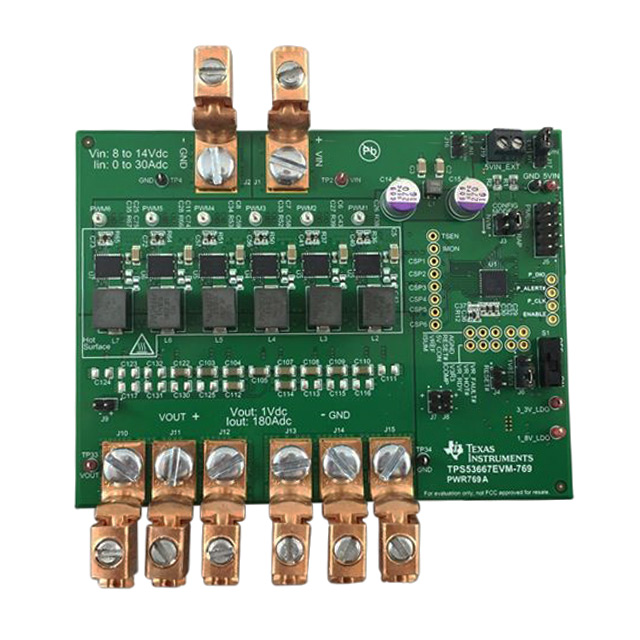

 Texas Instruments | Buck | Board(s) | Non-Isolated | 1 | DC/DC Step Down | Fully Populated | 500 kHz | 180 A | TPS53667 | 1 V | 14 V | 8 V | |||||||||||||||||||
 Texas Instruments | 150 °C | -40 °C | Surface Mount | Positive | PMBus | 40-WFQFN Exposed Pad | 40-WQFN (6x6) | 1.1 MHz | 270 kHz | 4.5 V | 17 V | Buck | PWM Signal | 6 | 6 | Step-Down | Current Limit Enable | ||||||||||||||
Texas Instruments | 150 °C | -40 °C | Surface Mount | Positive | PMBus | 40-WFQFN Exposed Pad | 40-WQFN (6x6) | 1.1 MHz | 270 kHz | 4.5 V | 17 V | Buck | PWM Signal | 6 | 6 | Step-Down | Current Limit Enable |
