DLW44SM Series

Catalog

CMC 3.1A 2LN 100 OHM SMD

Part	Package / Case	Filter Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Impedance @ Frequency	Mounting Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Number of Lines	Height (Max) [z]	Height (Max) [z]
Murata Electronics DLW44SM101SK2L	Horizontal 4 PC Pad	Power Line	0.157 "	4 mm	0.157 in	4 mm	100 Ohms	Surface Mount	3.1 A	22.4 mOhm	60 VDC	-40 C	105 ░C	2	1.5 mm	0.059 in
Murata Electronics DLW44SM242SK2L	Horizontal 4 PC Pad	Power Line	0.157 "	4 mm	0.157 in	4 mm	2.4 kOhms	Surface Mount	1.4 A	105 mOhm	60 VDC	-40 C	105 ░C	2	1.5 mm	0.059 in

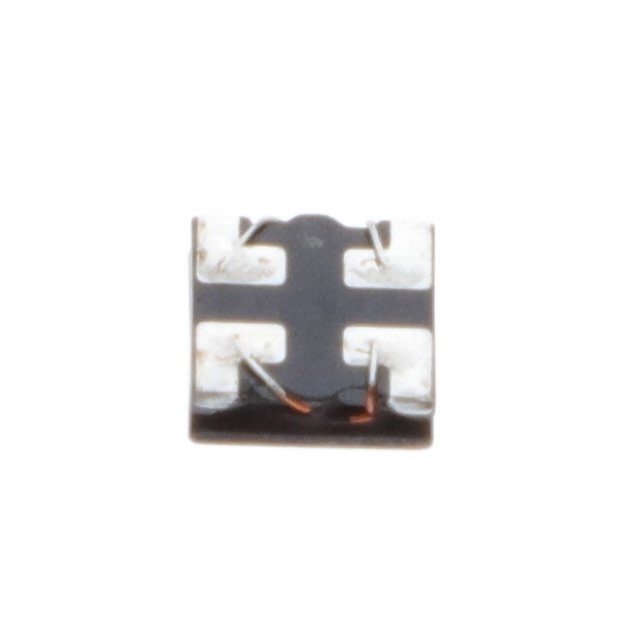

Murata Electronics DLW44SM302SK2L	Horizontal 4 PC Pad	Power Line	0.157 "	4 mm	0.157 in	4 mm	2200 Ohms	Surface Mount	1.1 A	168 mOhm	60 VDC	-40 C	105 ░C	2	1.5 mm	0.059 in
Murata Electronics DLW44SM172SK2L	Horizontal 4 PC Pad	Power Line	0.157 "	4 mm	0.157 in	4 mm	1.7 kOhms	Surface Mount	1.5 A	84 mOhm	60 VDC	-40 C	105 ░C	2	1.5 mm	0.059 in
