L6R30 Series

Catalog

AC/DC WALL MOUNT ADAPTER 12V 30W

Part	Voltage - Output	Standard Number	Approval Agency	Form	Efficiency	Region Utilized	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Input Connector	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Power (Watts)	Current - Output (Max) [Max]	Polarization	Output Connector	Output Connector [diameter]	Output Connector [x]	Operating Temperature [Max]	Input Type	No Load Power Consumption	Weight	Weight
Tri-Mag, LLC L6R30-120	12 V	62368-1	cUL FCC UL	Wall Mount	Level VI	North America	1.3 in	2.8 in	33 mm	1.7 in	43.2 mm	71.1 mm	NEMA 1-15P	1.5 m	59 in	264 VAC	90 VAC	ITE (Commercial)	30 Watts	2.5 A	Positive Center	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	40 °C	Fixed Blade	100 mW

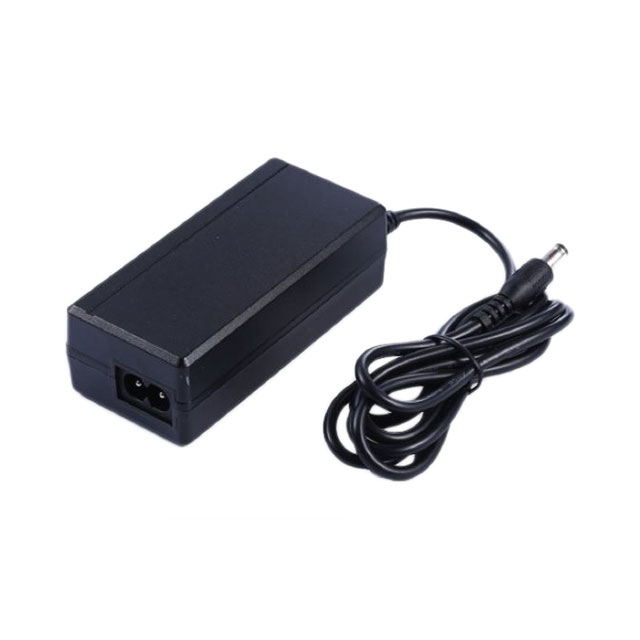

Tri-Mag, LLC L6R30D-120-C8	12 V	62368-1	cUL FCC UL	Desktop (Class II)	Level VI	International	1.08 "	3.62 "	27.5 mm	1.79 in	45.4 mm	91.9 mm	IEC 320-C8	1.5 m	59 in	264 VAC	90 VAC	ITE (Commercial)	30 Watts	2.5 A	Positive Center	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	40 °C	Cord (Sold Separately)	100 mW	0.309 lb	140 g
Tri-Mag, LLC L6R30D-300-C8	30 V	62368-1	cUL FCC UL	Desktop (Class II)	Level VI	International	1.08 "	3.62 "	27.5 mm	1.79 in	45.4 mm	91.9 mm	IEC 320-C8	1.5 m	59 in	264 VAC	90 VAC	ITE (Commercial)	30 Watts	1 A	Positive Center	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	40 °C	Cord (Sold Separately)	100 mW	0.309 lb	140 g
Tri-Mag, LLC L6R30-300	30 V	62368-1	cUL FCC UL	Wall Mount	Level VI	North America	1.3 in	2.8 in	33 mm	1.7 in	43.2 mm	71.1 mm	NEMA 1-15P	1.5 m	59 in	264 VAC	90 VAC	ITE (Commercial)	30 Watts	1 A	Positive Center	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	40 °C	Fixed Blade	100 mW
