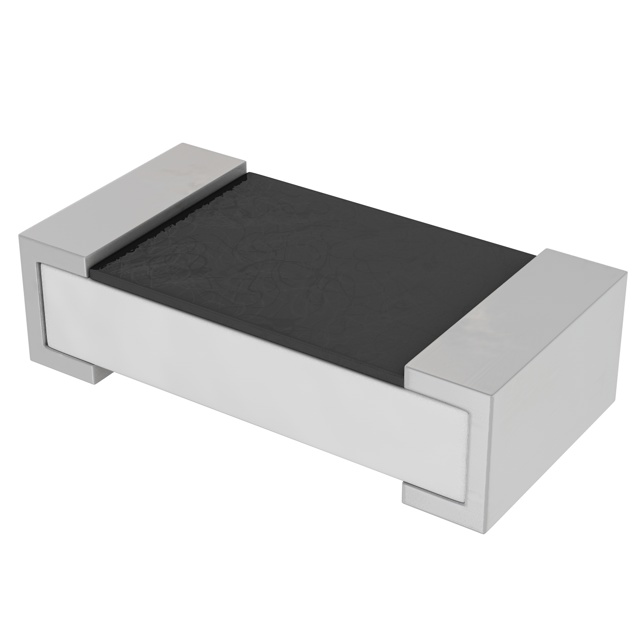

RC0603 Series

Manufacturer: YAGEO

Catalog

Catalog

RES 270K OHM 1% 1/10W 0603

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Ratings	Number of Terminations [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Tolerance	Package / Case	Package / Case	Power (Watts)	Power (Watts)	Composition
YAGEO RC0603FR-07270KP	155 C	-55 C	270 kOhms	7C1 RoHS w/out Exemption (100% Pb-Free)	2	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	100 ppm/°C	1 %	1608 Metric	0603	0.1 W	0.1 W	Thick Film
YAGEO RC0603JR-0724KP	155 C	-55 C	24 kOhms	7C1 RoHS w/out Exemption (100% Pb-Free)	2	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	100 ppm/°C	5 %	1608 Metric	0603	0.1 W	0.1 W	Thick Film
YAGEO RC0603FR-07100RP	155 C	-55 C	100 Ohms	7C1 RoHS w/out Exemption (100% Pb-Free)	2	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	100 ppm/°C	1 %	1608 Metric	0603	0.1 W	0.1 W	Thick Film
YAGEO RC0603FR-071M33P	155 C	-55 C	1.33 MOhms	7C1 RoHS w/out Exemption (100% Pb-Free)	2	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	100 ppm/°C	1 %	1608 Metric	0603	0.1 W	0.1 W	Thick Film
YAGEO RC0603FR-073KP	155 C	-55 C	3 kOhms	7C1 RoHS w/out Exemption (100% Pb-Free)	2	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	100 ppm/°C	1 %	1608 Metric	0603	0.1 W	0.1 W	Thick Film
YAGEO RC0603FR-07270RP	155 C	-55 C	270 Ohms	7C1 RoHS w/out Exemption (100% Pb-Free)	2	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	100 ppm/°C	1 %	1608 Metric	0603	0.1 W	0.1 W	Thick Film
YAGEO RC0603FR-07140KP	155 C	-55 C	140 kOhms	7C1 RoHS w/out Exemption (100% Pb-Free)	2	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	100 ppm/°C	1 %	1608 Metric	0603	0.1 W	0.1 W	Thick Film
YAGEO RC0603FR-07100KP	155 C	-55 C	100 kOhms	7C1 RoHS w/out Exemption (100% Pb-Free)	2	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	100 ppm/°C	1 %	1608 Metric	0603	0.1 W	0.1 W	Thick Film
YAGEO RC0603FR-071K6P	155 C	-55 C	1.6 kOhms	7C1 RoHS w/out Exemption (100% Pb-Free)	2	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	100 ppm/°C	1 %	1608 Metric	0603	0.1 W	0.1 W	Thick Film
YAGEO RC0603FR-0739RP	155 C	-55 C	39 Ohms	7C1 RoHS w/out Exemption (100% Pb-Free)	2	0.55 mm	0.022 in	0.031 in	1.6 mm	0.8 mm	0.063 "	100 ppm/°C	1 %	1608 Metric	0603	0.1 W	0.1 W	Thick Film
