AF120 Series
Manufacturer: ATP Electronics, Inc.
Beta
⌘K
SSD 120GB M.2 PCIE 3D NVME
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Speed - Read | Memory Type | Memory Size | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Speed - Write | Form Factor | Type | Form Factor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

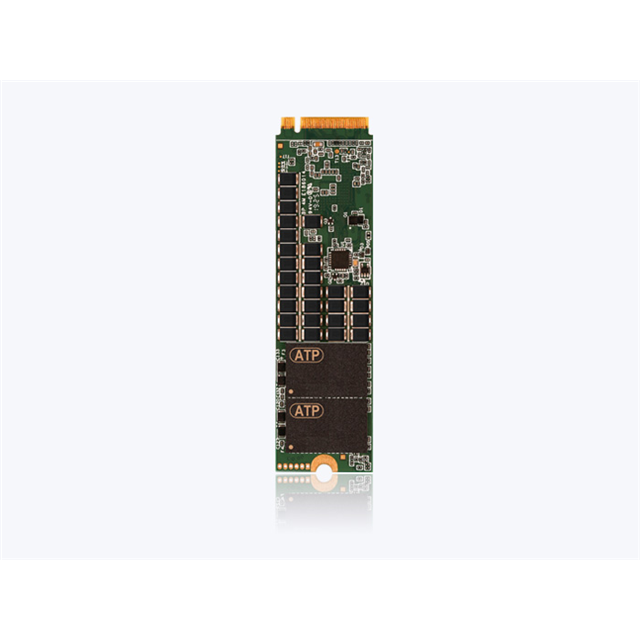

 ATP Electronics, Inc. | 85 °C | -40 C | 1.83 GB/s | Solid State Drive (SSD) FLASH - NAND (3D) | 120 GB | 3.5 mm | 22 mm | 80 mm | 580 MB/s | M.2 Module PCIe | NVMe | |

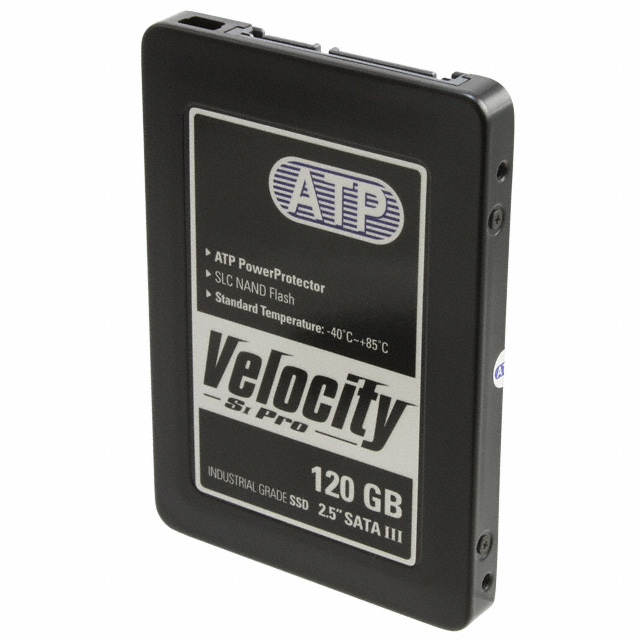

 ATP Electronics, Inc. | 85 °C | -40 C | 500 MB/s | Solid State Drive (SSD) FLASH - NAND (SLC) | 120 GB | 9.5 mm | 2.75 in | 100 mm | 500 MB/s | SATA III | 2.5 " | |

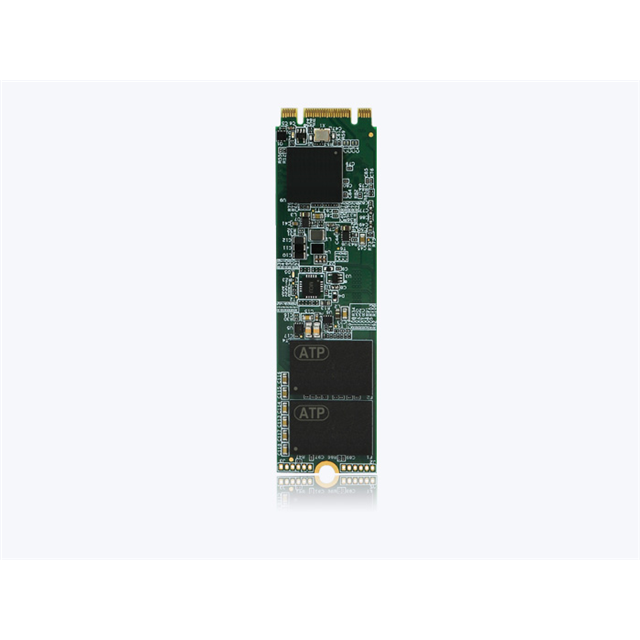

 ATP Electronics, Inc. | 85 °C | -40 C | 560 MB/s | Solid State Drive (SSD) FLASH - NAND (3D) | 120 GB | 3.35 mm | 22 mm | 80 mm | 415 MB/s | M.2 Module | SATA III | |

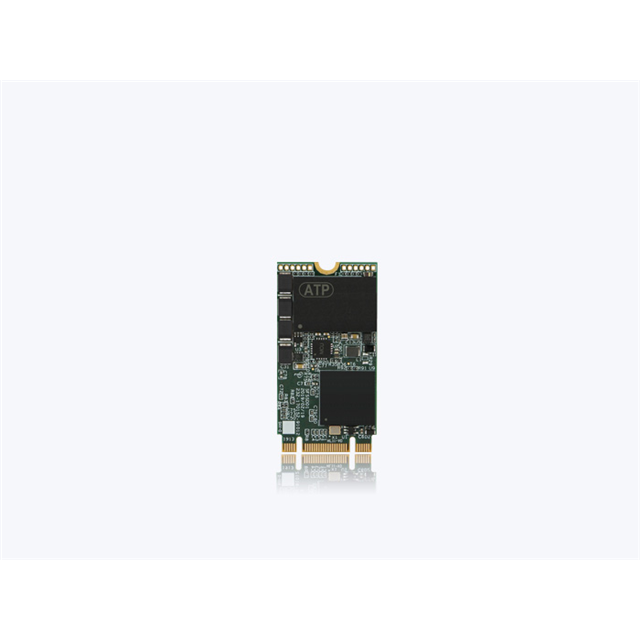

 ATP Electronics, Inc. | 85 °C | -40 C | 560 MB/s | Solid State Drive (SSD) FLASH - NAND (3D) | 120 GB | 3.5 mm | 22 mm | 42 mm | 415 MB/s | M.2 Module | SATA III | |
 ATP Electronics, Inc. | 85 °C | -40 C | 560 MB/s | Solid State Drive (SSD) FLASH - NAND (3D) | 120 GB | 7 mm | 69.9 mm | 100 mm | 415 MB/s | SATA III | 2.5 " |
