045280 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 12POS 3MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Insulation Height	Insulation Height	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Applications	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Mating	Connector Type	Number of Positions	Contact Type	Mounting Type	Features	Style	Fastening Type	Number of Rows	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Post	Shrouding
Molex 0452801203	2.54 µm	100 µin	UL94 V-0	11.6 mm	0.457 in	Black	3 mm	0.118 in	Glass Filled Nylon Polyamide (PA)	Copper Alloy	4.9 mm	0.193 in	General Purpose Medical Military Telecommunications	Square	30 Áin	0.76 Ám	All	Gold	Header	12	Male Pin	Through Hole	Blind Mating Board Guide	Board to Board Cable	Push-Pull	2	0.118 in	3 mm	Press-Fit Solder	Tin-Lead	Shrouded - 4 Wall

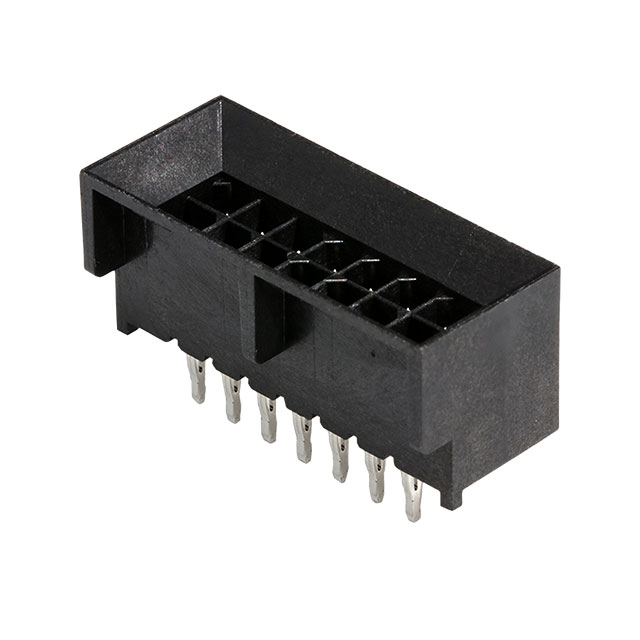

Molex 0452801452	0.25 çm	10 çin	UL94 V-0	11.6 mm	0.457 in	Black	3 mm	0.118 in	Glass Filled Nylon Polyamide (PA)	Copper Alloy	4.9 mm	0.193 in	General Purpose Medical Military Telecommunications	Square	15 µin	0.38 µm	All	Gold	Header	14	Male Pin	Through Hole	Blind Mating Board Guide	Board to Board Cable	Push-Pull	2	0.118 in	3 mm	Press-Fit Solder	Tin	Shrouded - 4 Wall
Molex 0452802203	2.54 µm	100 µin	UL94 V-0	11.6 mm	0.457 in	Black	3 mm	0.118 in	Glass Filled Nylon Polyamide (PA)	Copper Alloy	4.9 mm	0.193 in	General Purpose Medical Military Telecommunications	Square	30 Áin	0.76 Ám	All	Gold	Header	22 positions	Male Pin	Through Hole	Blind Mating Board Guide	Board to Board Cable	Push-Pull	2	0.118 in	3 mm	Press-Fit Solder	Tin-Lead	Shrouded - 4 Wall

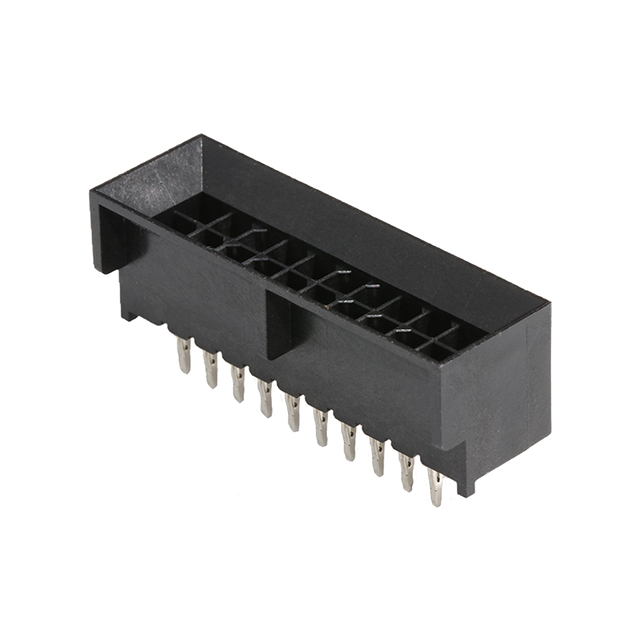

Molex 0452802001			UL94 V-0	11.6 mm	0.457 in	Black	3 mm	0.118 in	Glass Filled Nylon Polyamide (PA)	Copper Alloy	4.9 mm	0.193 in	General Purpose Medical Military Telecommunications	Square	200 µin	5.08 µm	All		Header	20	Male Pin	Through Hole	Blind Mating Board Guide	Board to Board Cable	Push-Pull	2	0.118 in	3 mm	Press-Fit Solder	Tin	Shrouded - 4 Wall
Molex 0452801053	0.25 çm	10 çin	UL94 V-0	11.6 mm	0.457 in	Black	3 mm	0.118 in	Glass Filled Nylon Polyamide (PA)	Copper Alloy	4.9 mm	0.193 in	General Purpose Medical Military Telecommunications	Square	30 Áin	0.76 Ám	All	Gold	Header	10	Male Pin	Through Hole	Blind Mating Board Guide	Board to Board Cable	Push-Pull	2	0.118 in	3 mm	Press-Fit Solder	Tin	Shrouded - 4 Wall
Molex 0452800401			UL94 V-0	11.6 mm	0.457 in	Black	3 mm	0.118 in	Glass Filled Nylon Polyamide (PA)	Copper Alloy	4.9 mm	0.193 in	General Purpose Medical Military Telecommunications	Square	200 µin	5.08 µm	All		Header	4	Male Pin	Through Hole	Blind Mating Board Guide	Board to Board Cable	Push-Pull	2	0.118 in	3 mm	Press-Fit Solder	Tin	Shrouded - 4 Wall

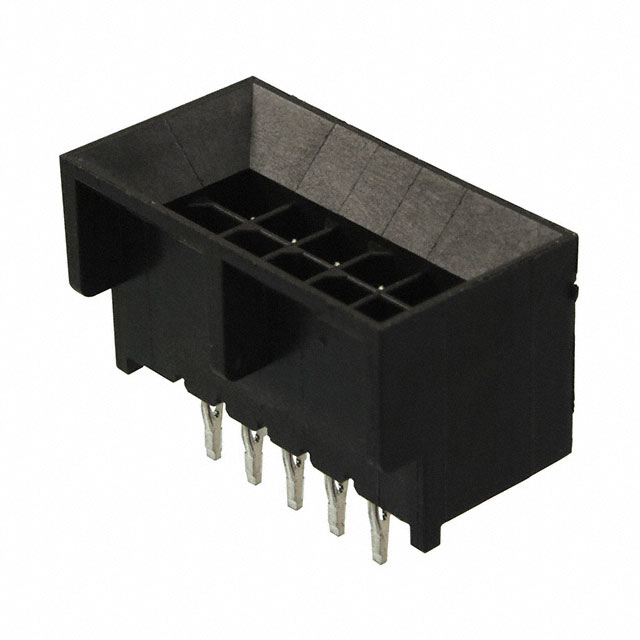

Molex 0452801001			UL94 V-0	11.6 mm	0.457 in	Black	3 mm	0.118 in	Glass Filled Nylon Polyamide (PA)	Copper Alloy	4.9 mm	0.193 in	General Purpose Medical Military Telecommunications	Square	200 µin	5.08 µm	All		Header	10	Male Pin	Through Hole	Blind Mating Board Guide	Board to Board Cable	Push-Pull	2	0.118 in	3 mm	Press-Fit Solder	Tin	Shrouded - 4 Wall
Molex 0452800653	0.25 çm	10 çin	UL94 V-0	11.6 mm	0.457 in	Black	3 mm	0.118 in	Glass Filled Nylon Polyamide (PA)	Copper Alloy	4.9 mm	0.193 in	General Purpose Medical Military Telecommunications	Square	30 Áin	0.76 Ám	All	Gold	Header	6	Male Pin	Through Hole	Blind Mating Board Guide	Board to Board Cable	Push-Pull	2	0.118 in	3 mm	Press-Fit Solder	Tin	Shrouded - 4 Wall

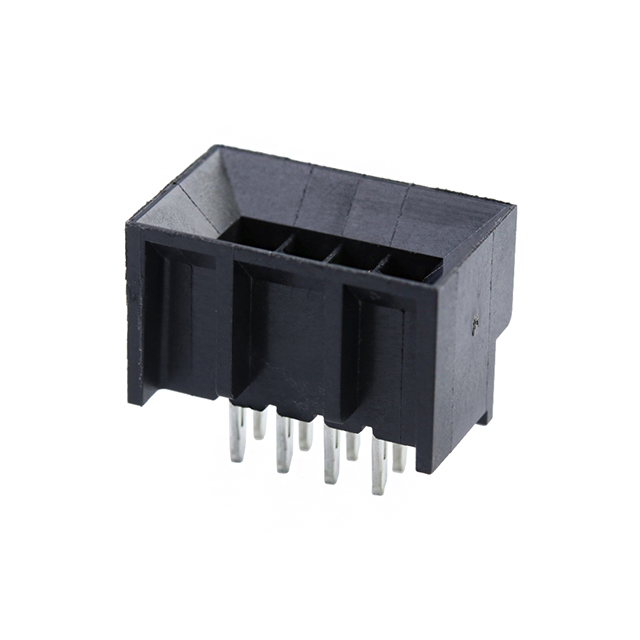

Molex 0452800853	0.25 çm	10 çin	UL94 V-0	11.6 mm	0.457 in	Black	3 mm	0.118 in	Glass Filled Nylon Polyamide (PA)	Copper Alloy	4.9 mm	0.193 in	General Purpose Medical Military Telecommunications	Square	30 Áin	0.76 Ám	All	Gold	Header	8	Male Pin	Through Hole	Blind Mating Board Guide	Board to Board Cable	Push-Pull	2	0.118 in	3 mm	Press-Fit Solder	Tin	Shrouded - 4 Wall
Molex 0452800802	2.54 µm	100 µin	UL94 V-0	11.6 mm	0.457 in	Black	3 mm	0.118 in	Glass Filled Nylon Polyamide (PA)	Copper Alloy	4.9 mm	0.193 in	General Purpose Medical Military Telecommunications	Square	15 µin	0.38 µm	All	Gold	Header	8	Male Pin	Through Hole	Blind Mating Board Guide	Board to Board Cable	Push-Pull	2	0.118 in	3 mm	Press-Fit Solder	Tin-Lead	Shrouded - 4 Wall
