PT 2,5 Series

Catalog

FIXED TERMINAL BLOCKS PT 2.5/10-5.0-H

Part	Mounting Type	Wire Termination	Positions Per Level	Voltage	Current	Wire Gauge [Min]	Wire Gauge [Max]	Mating Orientation	Number of Levels	Pitch	Pitch	Color	Screw Thread	Housing Material	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Max]	Features
Phoenix Contact 1935857	Through Hole	Screw - Leaf Spring Wire Guard	10	300 VDC	20 A	12 AWG	20 AWG	Horizontal with Board	1	0.197 in	5 mm	Green

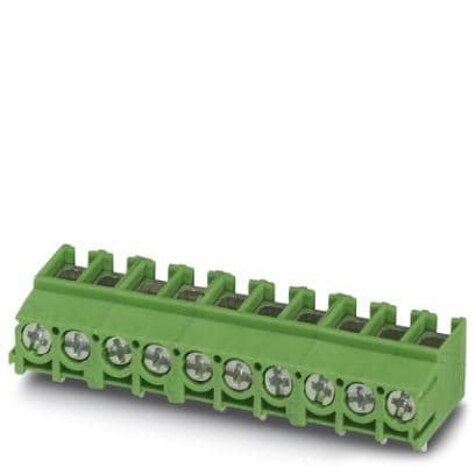

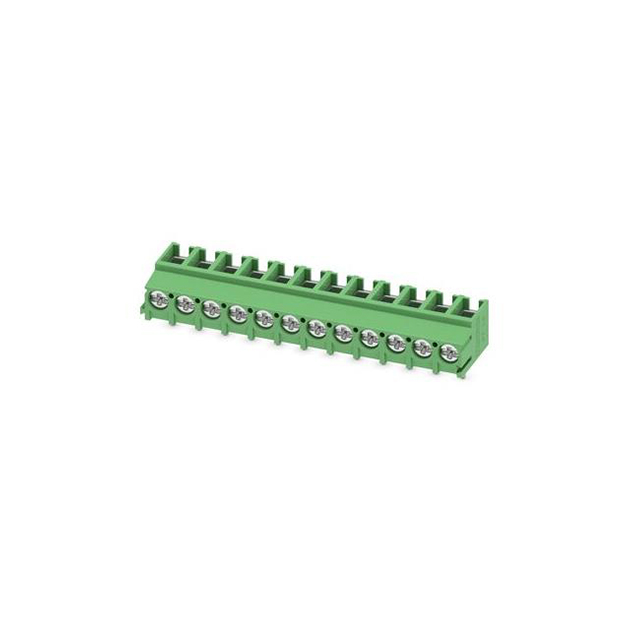

Phoenix Contact 1987821	Through Hole	Screw	12	300 VDC	20 A	12 AWG	20 AWG	Vertical with Board	1	0.197 in	5 mm	Green	M3	Polyamide (PA) Nylon	3.9 Lb-In	4.4 Lb-In	0.45 Nm	0.5 Nm	Interlocking (Side)

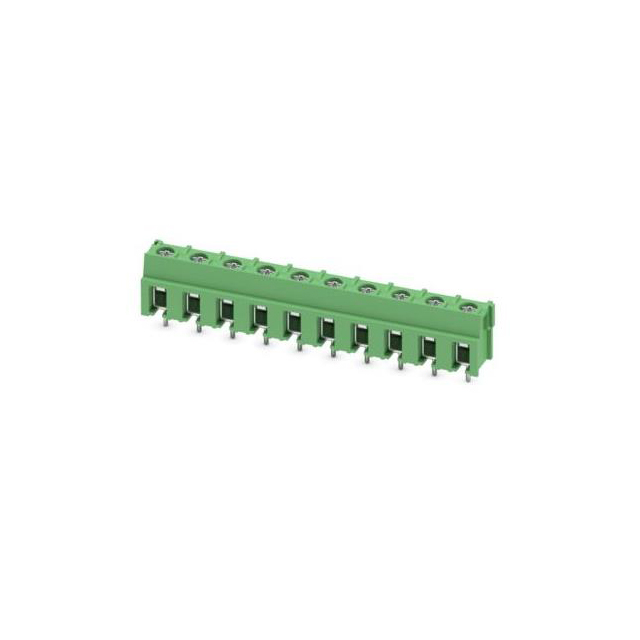

Phoenix Contact 1988189	Through Hole	Screw - Leaf Spring Wire Guard	10	300 VDC	20 A	12 AWG	20 AWG	Horizontal with Board	1	0.295 in	7.5 mm	Green	M3	Polyamide (PA) Nylon	3.9 Lb-In	4.4 Lb-In	0.45 Nm	0.5 Nm
Phoenix Contact 1988147	Through Hole	Screw - Leaf Spring Wire Guard	6	300 VDC	20 A	12 AWG	20 AWG	Horizontal with Board	1	0.295 in	7.5 mm	Green	M3	Polyamide (PA) Nylon	3.9 Lb-In	4.4 Lb-In	0.45 Nm	0.5 Nm

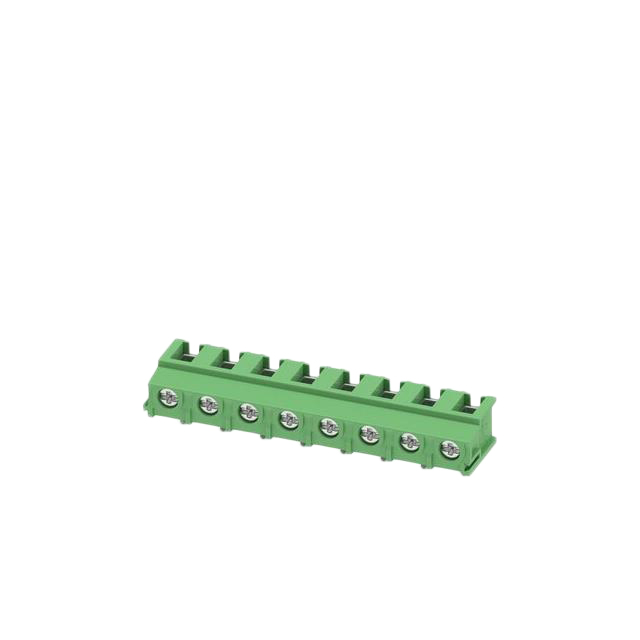

Phoenix Contact 1988011	Through Hole	Screw - Leaf Spring Wire Guard	8	300 VDC	20 A	12 AWG	20 AWG	Vertical with Board	1	0.295 in	7.5 mm	Green	M3	Polyamide (PA) Nylon	3.9 Lb-In	4.4 Lb-In	0.45 Nm	0.5 Nm	Interlocking (Side)
