895-136 Series
Manufacturer: EDAC Inc.
Beta
⌘K

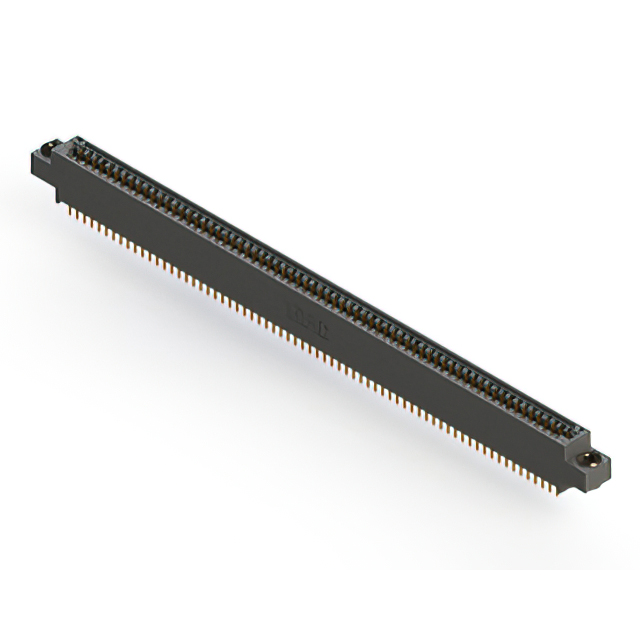

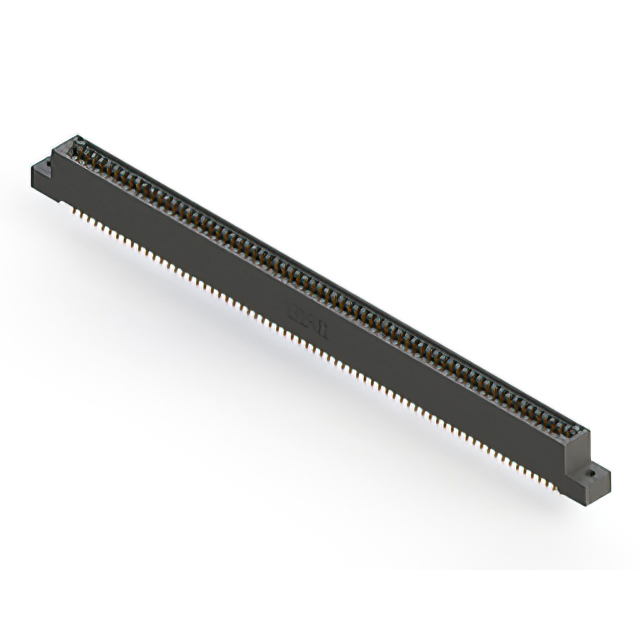

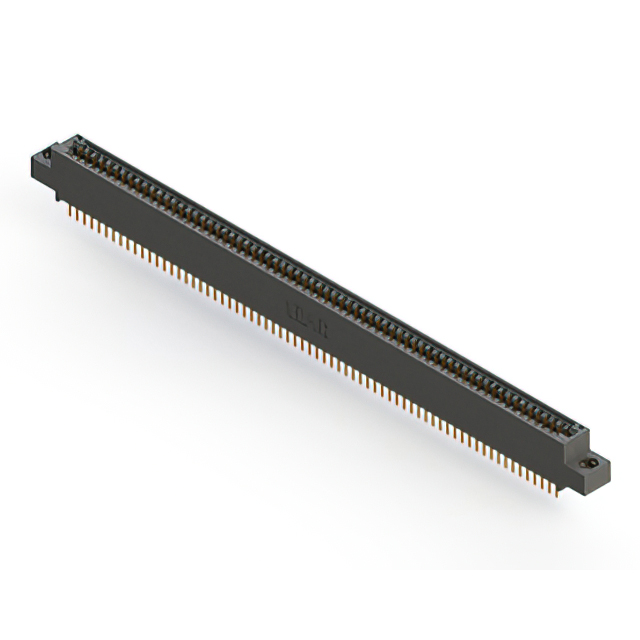

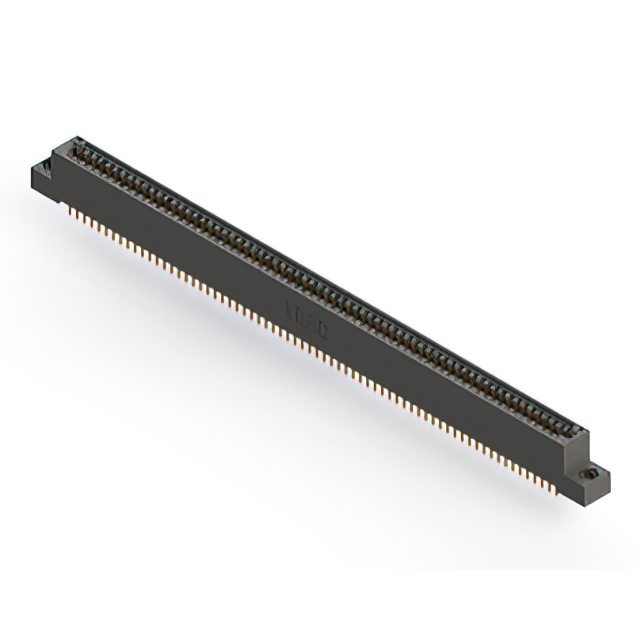

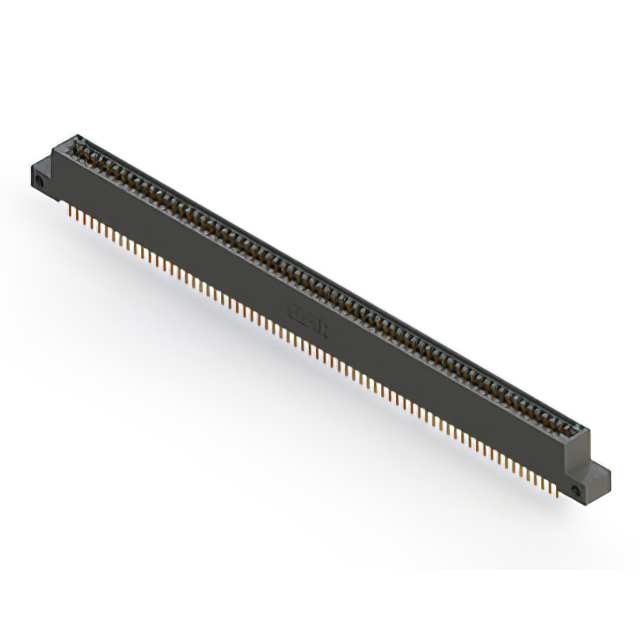

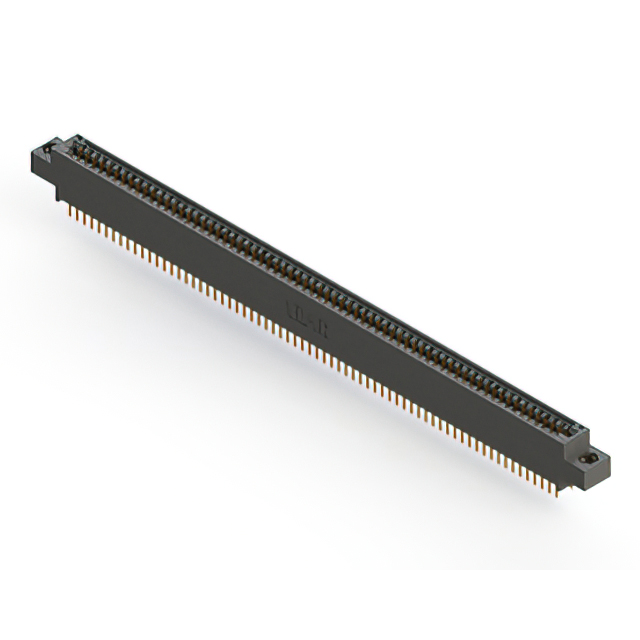

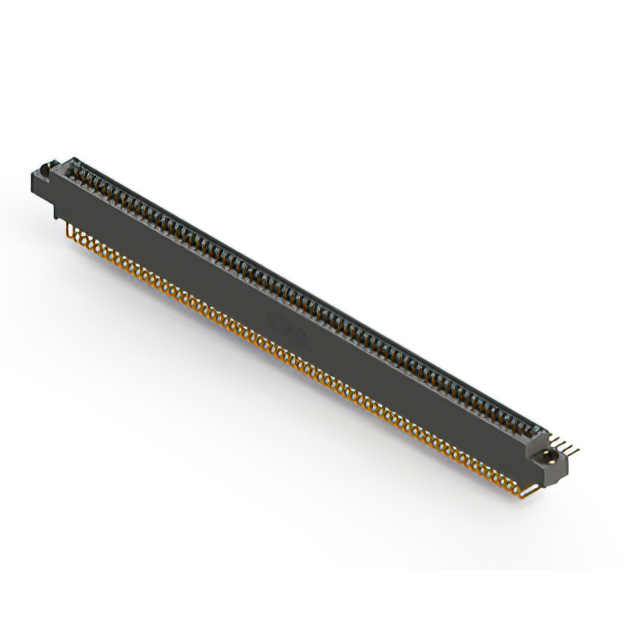

CONN EDGE DUAL FML 136POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions | Pitch | Pitch | Contact Finish | Contact Material | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Read Out | Contact Type | Mounting Type | Number of Rows [custom] | Color | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 136 | 0.1 " | 2.54 mm | Gold | Copper Alloy | Solder | 125 °C | -40 C | Female | Dual | Cantilever | Through Hole | 2 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 68 | 0.25 Ám | 10 Áin | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Non Specified - Dual Edge |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 136 | 0.1 " | 2.54 mm | Gold | Copper Alloy | Solder | 125 °C | -40 C | Female | Dual | Cantilever | Through Hole | 2 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 68 | 0.25 Ám | 10 Áin | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Dual Edge |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 136 | 0.1 " | 2.54 mm | Gold | Copper Alloy | Wire Wrap | 125 °C | -40 C | Female | Dual | Cantilever | Through Hole | 2 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 68 | 0.25 Ám | 10 Áin | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Non Specified - Dual Edge |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 136 | 0.1 " | 2.54 mm | Gold | Copper Alloy | Solder | 125 °C | -40 C | Female | Dual | Cantilever | Through Hole | 2 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 68 | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 136 | 0.1 " | 2.54 mm | Gold | Copper Alloy | Solder | 125 °C | -40 C | Female | Dual | Cantilever | Through Hole | 2 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 68 | 0.25 Ám | 10 Áin | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Dual Edge |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 136 | 0.1 " | 2.54 mm | Gold | Copper Alloy | Solder | 125 °C | -40 C | Female | Dual | Cantilever | Right Angle Through Hole | 2 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 68 | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | ||
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 136 | 0.1 " | 2.54 mm | Gold | Copper Alloy | Wire Wrap | 125 °C | -40 C | Female | Dual | Cantilever | Through Hole | 2 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 68 | 0.25 Ám | 10 Áin | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | Non Specified - Dual Edge |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 136 | 0.1 " | 2.54 mm | Gold | Copper Alloy | Solder | 125 °C | -40 C | Female | Dual | Cantilever | Through Hole | 2 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 68 | 0.25 Ám | 10 Áin | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Dual Edge |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 136 | 0.1 " | 2.54 mm | Gold | Copper Alloy | Solder | 125 °C | -40 C | Female | Dual | Cantilever | Through Hole | 2 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 68 | 0.25 Ám | 10 Áin | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Dual Edge |
 EDAC Inc. | 2 | Polyphenylene Sulfide (PPS) | 136 | 0.1 " | 2.54 mm | Gold | Copper Alloy | Solder | 125 °C | -40 C | Female | Dual | Cantilever | Through Hole | 2 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 68 | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge |
