2842132 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 20P,2MM,BRK HDR,DRVT,2.8,0.76AU,TB W/CAP

Part	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Number of Rows	Fastening Type	Features	Connector Type	Contact Type	Termination	Insulation Color	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Contact Shape	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Voltage Rating	Contact Length - Post [x]	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Positions	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Contact Finish - Mating
TE Connectivity Raychem Cable Protection 1-2842132-0	4 mm	0.157 in	1.5 mm	0.059 "	2	Push-Pull	Pick and Place	Breakaway Header	Male Pin	Solder	Black	Unshrouded	125 °C	-40 °C	Thermoplastic	0.079 in	2 mm	Through Hole	Square	Copper Alloy	2 çm	78.7 çin	Tin	0.079 in	2 mm	All	125 VAC	0.11 in	2.79 mm	30 Áin	0.76 Ám	2 A	20	8.3 mm	0.327 in	UL94 V-0	Gold

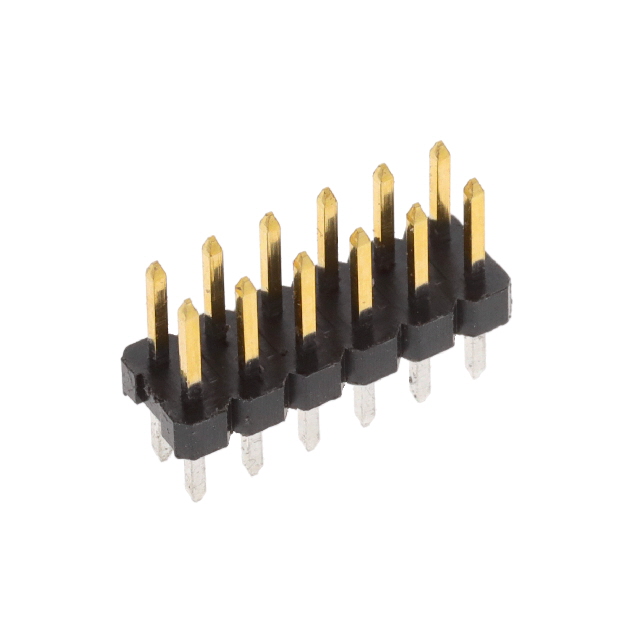

TE Connectivity Raychem Cable Protection 2842132-6	4 mm	0.157 in	1.5 mm	0.059 "	2	Push-Pull	Pick and Place	Breakaway Header	Male Pin	Solder	Black	Unshrouded	125 °C	-40 °C	Thermoplastic	0.079 in	2 mm	Through Hole	Square	Copper Alloy	2 çm	78.7 çin	Tin	0.079 in	2 mm	All	125 VAC	0.11 in	2.79 mm	30 Áin	0.76 Ám	2 A	12	8.3 mm	0.327 in	UL94 V-0	Gold
TE Connectivity Raychem Cable Protection 2842132-5	4 mm	0.157 in	1.5 mm	0.059 "	2	Push-Pull	Pick and Place	Breakaway Header	Male Pin	Solder	Black	Unshrouded	125 °C	-40 °C	Thermoplastic	0.079 in	2 mm	Through Hole	Square	Copper Alloy	2 çm	78.7 çin	Tin	0.079 in	2 mm	All	125 VAC	0.11 in	2.79 mm	30 Áin	0.76 Ám	2 A	10	8.3 mm	0.327 in	UL94 V-0	Gold

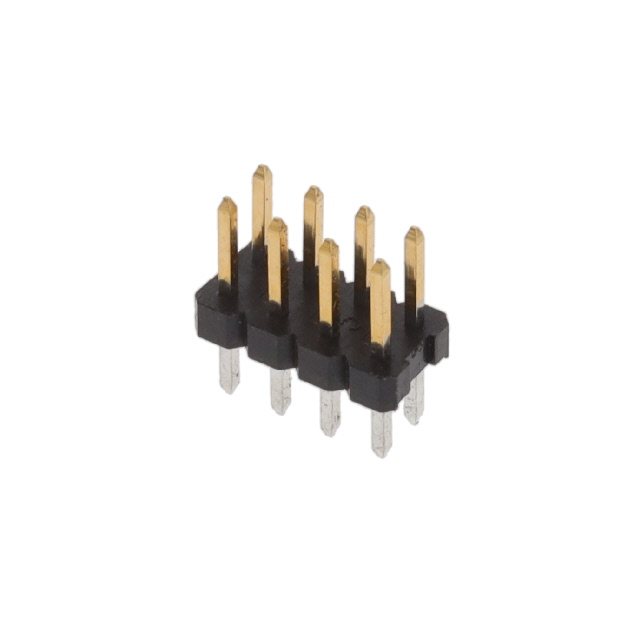

TE Connectivity Raychem Cable Protection 2842132-4	4 mm	0.157 in	1.5 mm	0.059 "	2	Push-Pull	Pick and Place	Breakaway Header	Male Pin	Solder	Black	Unshrouded	125 °C	-40 °C	Thermoplastic	0.079 in	2 mm	Through Hole	Square	Copper Alloy	2 çm	78.7 çin	Tin	0.079 in	2 mm	All	125 VAC	0.11 in	2.79 mm	30 Áin	0.76 Ám	2 A	8	8.3 mm	0.327 in	UL94 V-0	Gold
