AFB03505 Series

Catalog

FAN AXIAL 35X10MM BALL 5VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Lifetime @ Temp.	Material - Frame	Material - Blade	Fan Type	Power (Watts)	Bearing Type	Width [y]	Weight	Weight	Air Flow	Air Flow	Noise	RPM	Size / Dimension [x]	Size / Dimension	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Static Pressure	Static Pressure	Voltage - Rated	Termination	Approval Agency
Delta Electronics AFB03505LA-C	5.5 V	4 VDC	60 mA	30000 Hrs	Plastic	Plastic	Tubeaxial	300 mW	Ball	10 mm	10.89 g	0.024 lb	3.4 CFM	0.095 m³/min	10 dB(A)	4500 RPM	35 mm	Square	35 mm	70 °C	-10 °C	0.048 in H2O	11.9 Pa	5 V	2 Wire Leads

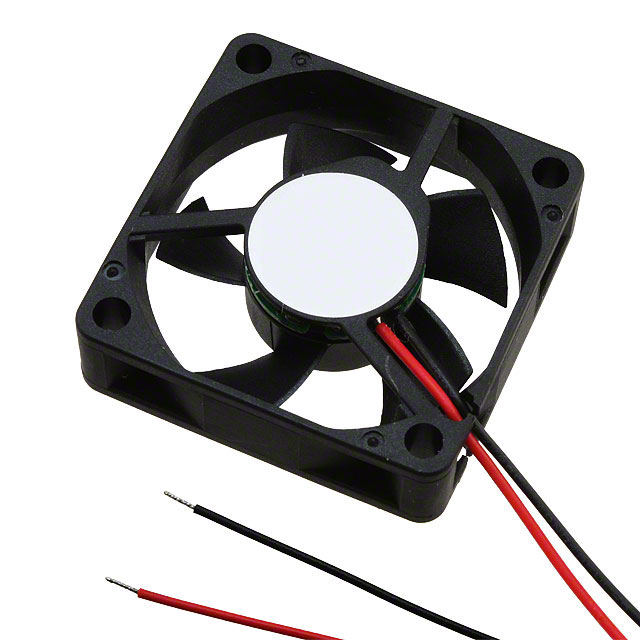

Delta Electronics AFB03505HA-A	5.5 V	4 VDC	140 mA	30000 Hrs	Plastic	Plastic	Tubeaxial	700 mW	Ball	10 mm	10.89 g	0.024 lb	5.5 CFM	0.154 mł/min	22 dB(A)	7000 RPM	35 mm	Square	35 mm	70 °C	-10 °C	0.106 in H2O	26.4 Pa	5 V	2 Wire Leads	CE CSA UL VDE

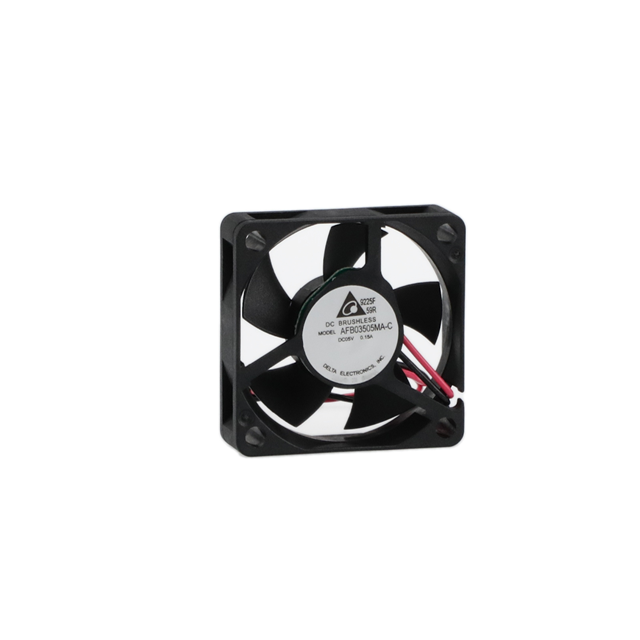

Delta Electronics AFB03505MA-C	5.5 V	4 VDC	100 mA	30000 Hrs	Plastic	Plastic	Tubeaxial	0.5 W	Ball	10 mm	10.43 g	0.023 lb	4.3 CFM	0.12 m³/min	16 dB	5800 RPM	35 mm	Square	35 mm	70 °C	-10 °C	0.076 in H2O	18.9 Pa	5 V	2 Wire Leads
