SCP8UTJ5 Series

Catalog

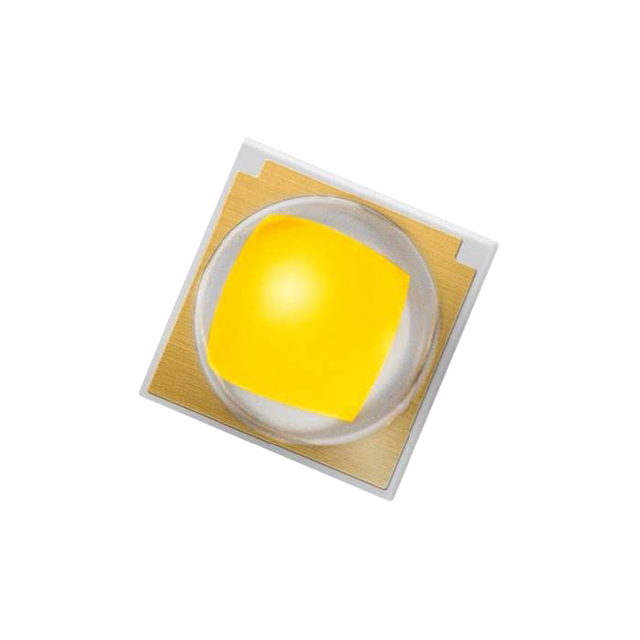

LED LH231B WARM WHT 3500K SMD

Part	Thermal Resistance of Package	Supplier Device Package	Current - Max [Max]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Flux @ 85°C, Current - Test [Min]	Flux @ 85°C, Current - Test [Max]	CRI (Color Rendering Index)	Mounting Type	Lumens/Watt @ Current - Test	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Color	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 85°C, Current - Test	CCT (K)	CCT (K)
Samsung Semiconductor, Inc. SCP8UTJ5HEL1ULNF6E	2 °C/W	SMD	2 A	120 °	2.9 V	270 lm	330 lm	80	Surface Mount	148 lm/W	1111 (2828 Metric)	0.11 in	2.8 mm	2.8 mm	0.11 "	Warm White	0.019 in	0.48 mm
Samsung Semiconductor, Inc. SCP8UTJ5HEL1UUMF6E	2 °C/W	SMD	2 A	120 °	2.9 V			80	Surface Mount	138 lm/W	1111 (2828 Metric)	0.11 in	2.8 mm	2.8 mm	0.11 "	Warm White	0.019 in	0.48 mm	280 lm	3500 K	3-Step MacAdam Ellipse
