CK Series

Catalog

KEYLOCK SWITCH, 0.748" PANEL CUTOUT, ON-OFF-ON, SPDT, CK SERIES, 3 POSITION, SOLDER LUG, 3 A

Part	Electrical Life	Mechanical Life	Depth Behind Flange	Features	Key Removable Positions	Actuator Type	Voltage Rating - AC	Contact Finish	Current Rating (Amps)	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Angle of Throw	Contact Timing	Mounting Type	Contact Material	Switch Function	Panel Cutout Dimensions [diameter]	Circuit	Number of Positions	Key Removable Positions
NKK Switches CKL13ETW01-006	10000 Cycles	30000 Steps	34.6 mm	Epoxy Sealed Terminals	2	Tubular Key	250 V	Silver	3 A	Solder Lug	-25 °C	70 °C	45 °	Non-Shorting (BBM)	Panel Mount	Silver (Ag)	On-Off-On	19 mm	SPDT
NKK Switches CKL12AFW01	10000 Cycles	30000 Steps	34.6 mm	Epoxy Sealed Terminals		Flat Key	250 V	Silver	3 A	Solder Lug	-25 °C	70 °C	90 °	Non-Shorting (BBM)	Panel Mount	Silver (Ag)	On-On	19 mm	SPDT	2	All
NKK Switches CKL12ATW01-020				Epoxy Sealed Terminals		Tubular Key	250 V	Silver	3 A	Solder Lug	-25 °C	70 °C	90 °	Non-Shorting (BBM)	Panel Mount	Silver (Ag)	On-On	19 mm	SPDT	2	All

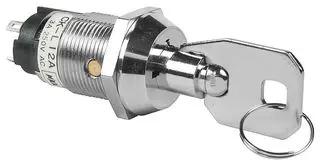

NKK Switches CKL12ATW01-001				Epoxy Sealed Terminals		Tubular Key	250 V	Silver	3 A	Solder Lug	-25 °C	70 °C	90 °	Non-Shorting (BBM)	Panel Mount	Silver (Ag)	On-On	19 mm	SPDT	2	All
NKK Switches CKM12BFW01-006	10000 Cycles	30000 Steps	31.2 mm	Epoxy Sealed Terminals	1	Flat Key	250 V	Silver	3 A	Solder Lug	-25 °C	70 °C	90 °	Non-Shorting (BBM)	Panel Mount	Silver (Ag)	On-On	16 mm	SPDT	2
NKK Switches CKL12ATW01-047				Epoxy Sealed Terminals		Tubular Key	250 V	Silver	3 A	Solder Lug	-25 °C	70 °C	90 °	Non-Shorting (BBM)	Panel Mount	Silver (Ag)	On-On	19 mm	SPDT	2	All
NKK Switches CKL12ATW01-004				Epoxy Sealed Terminals		Tubular Key	250 V	Silver	3 A	Solder Lug	-25 °C	70 °C	90 °	Non-Shorting (BBM)	Panel Mount	Silver (Ag)	On-On	19 mm	SPDT	2	All
NKK Switches CKL12BFW01-018	10000 Cycles	30000 Steps	34.6 mm	Epoxy Sealed Terminals	1	Flat Key	250 V	Silver	3 A	Solder Lug	-25 °C	70 °C	90 °	Non-Shorting (BBM)	Panel Mount	Silver (Ag)	On-On	19 mm	SPDT	2
