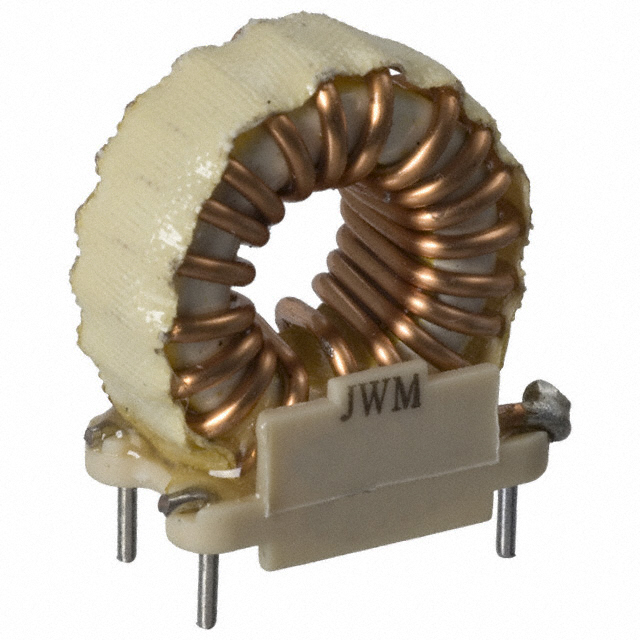

6700 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FIXED IND 35UH 2.5A 35 MOHM TH
| Part | Inductance Frequency - Test | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) | Mounting Type | DC Resistance (DCR) [Max] | Inductance | Material - Core | Package / Case | Type | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 1 kHz | 15 % | 0.425 in | 0.7 " | 17.78 mm | 10.8 mm | 1 in | 25.4 mm | Through Hole | 35 mOhm | 35 µH | Iron Powder | Radial Vertical 4 Leads (Open) | Toroidal | Shielded | -55 C | 105 ░C | 2.5 A | ||||||
Bourns Inc. | 1 kHz | 15 % | 1.812 in | 22.86 mm | Through Hole | 920 mOhm | 2.25 mH | Iron Powder | Radial Vertical 4 Leads (Open) | Toroidal | Shielded | -55 C | 105 ░C | 1.75 A | 22.86 mm | 46.02 mm | 1.95 in | 49.53 mm | ||||||
Bourns Inc. | 1 kHz | 15 % | 0.8 " | 1.25 in | 31.75 mm | 20.32 mm | 1.375 in | 34.93 mm | Through Hole | 700 µH | Iron Powder | Radial Vertical 4 Leads (Open) | Toroidal | Shielded | -55 C | 105 ░C | 2.25 A | 420 mOhm | ||||||
Bourns Inc. | 1 kHz | 15 % | 0.425 in | 0.875 in | 22.22 mm | 10.8 mm | 1 in | 25.4 mm | Through Hole | 25 µH | Iron Powder | Radial Vertical 4 Leads (Open) | Toroidal | Shielded | -55 C | 105 ░C | 5.5 Amps | 14 mOhm | ||||||
Bourns Inc. | 1 kHz | 15 % | 0.6 in | 1.125 " | 28.58 mm | 15.24 mm | Through Hole | 75 µH | Iron Powder | Radial Vertical 4 Leads (Open) | Toroidal | Shielded | -55 C | 105 ░C | 5 A | 1.25 " | 31.75 mm | 40 mOhm | ||||||
Bourns Inc. | 1 kHz | 15 % | 0.8 " | 1.25 in | 31.75 mm | 20.32 mm | 1.375 in | 34.93 mm | Through Hole | 12 mOhm | 50 µH | Iron Powder | Radial Vertical 4 Leads (Open) | Toroidal | Shielded | -55 C | 105 ░C | 9.5 A | ||||||
Bourns Inc. | 1 kHz | 15 % | 0.425 in | 0.875 in | 22.22 mm | 10.8 mm | 1 in | 25.4 mm | Through Hole | 8 mOhm | 10 µH | Iron Powder | Radial Vertical 4 Leads (Open) | Toroidal | Shielded | -55 C | 105 ░C | 11 A | ||||||
Bourns Inc. | 1 kHz | 15 % | 1.812 in | 22.86 mm | Through Hole | 500 µH | Iron Powder | Radial Vertical 4 Leads (Open) | Toroidal | Shielded | -55 C | 105 ░C | 4 A | 22.86 mm | 46.02 mm | 1.95 in | 49.53 mm | 150 mOhm | ||||||
Bourns Inc. | 1 kHz | 15 % | 0.425 in | 0.85 in | 21.59 mm | 10.8 mm | 1 in | 25.4 mm | Through Hole | 50 mOhm | 70 µH | Iron Powder | Radial Vertical 4 Leads (Open) | Toroidal | Shielded | -55 C | 105 ░C | 3 A | ||||||
Bourns Inc. | 1 kHz | 15 % | 1.1 in | 2.125 " | 53.97 mm | 27.94 mm | 2.25 in | Through Hole | 1.16 Ohm | 4 mH | Iron Powder | Radial Vertical 4 Leads (Open) | Toroidal | Shielded | -55 C | 105 ░C | 1.75 A | 57.15 mm |
