28349 Series
Manufacturer: Phoenix Contact
Beta
⌘K

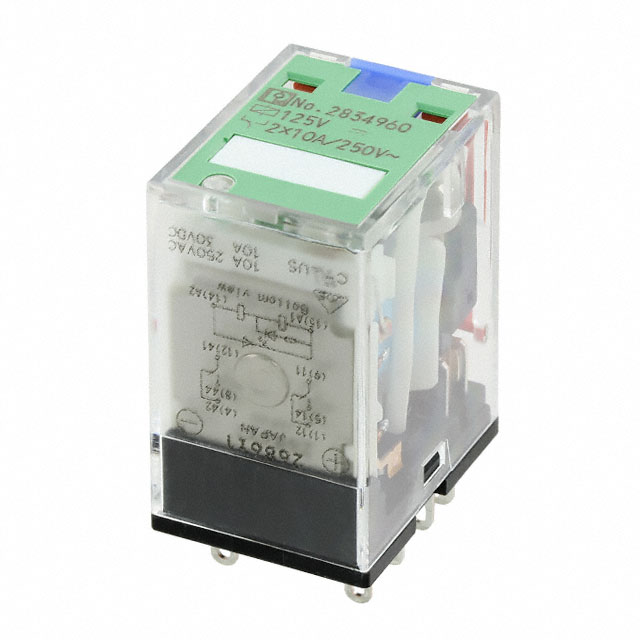

RELAY GEN PURPOSE DPDT 10A 125V
| Part | Coil Resistance | Approval Agency | Termination Style | Features | Contact Form | Contact Material | Coil Type | Mounting Type | Coil Voltage | Release Time | Relay Type | Operate Time | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 17.36 kOhms | cULus EAC UL VDE | Plug In | Diode Mechanical Indicator Test Button | DPDT (2 Form C) | Silver (Ag) | Non Latching | Socketable | 125 VDC | 14 ms | General Purpose | 13 ms | 250 VAC 250 VDC | -55 C | 70 °C | 10 A | 7.2 mA |
 Phoenix Contact | 61.11 kOhms | cULus EAC UL VDE | Plug In | Diode Mechanical Indicator Test Button | DPDT (2 Form C) | Silver (Ag) | Non Latching | Socketable | 220 VDC | 14 ms | General Purpose | 13 ms | 250 VAC 250 VDC | -55 C | 70 °C | 10 A | 3.6 mA |
