CAB434RF Series
Manufacturer: GCT
Beta
⌘K

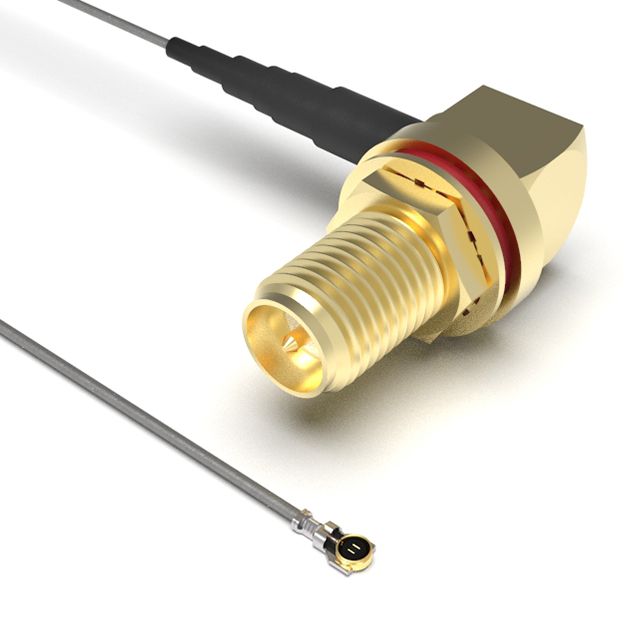

CBL ASSY RPSMA-MHF5L J-PL 7.874"
| Part | Overall Impedance | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector Mounting Type | 1st Contact Gender | Features | Frequency - Max [Max] | Color | 1st Connector | Cable Type | Cable Type [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Impedance | 2nd Connector | Length | Length | Ingress Protection | 2nd Contact Gender | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Free Hanging (In-Line) | Male | IP Rated Unmated | 6000 MHz | Gray | RP-SMA Jack Right Angle | Coaxial Cable | 1.13 mm | 85 °C | -40 C | 50 Ohms | IPEX MHF5L Plug Right Angle | 200 mm | 7.874 in | IP67/IP68 | Female | RP-SMA to IPEX MHF5L | |
50 Ohms | Panel Mount | Bulkhead - Front Side Nut | Free Hanging (In-Line) | Male | IP Rated Unmated | 6000 MHz | Gray | RP-SMA Jack Right Angle | Coaxial Cable | 1.13 mm | 85 °C | -40 C | 50 Ohms | I-PEX MHF5L Plug Right Angle | 200 mm | 7.874 in | IP67/IP68 | Female | RP-SMA to I-PEX MHF5L |
