R12415 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

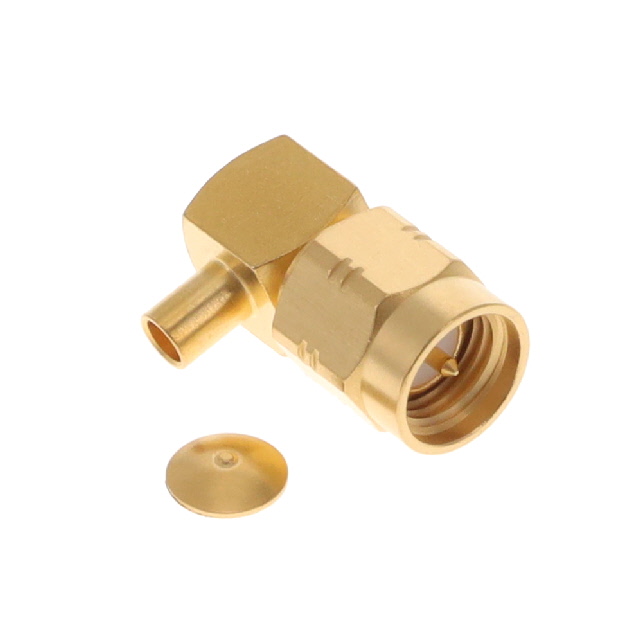

SMA / RIGHT ANGLE PLUG SOLDER TY
| Part | Body Material | Body Finish | Center Contact Plating | Voltage Rating | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Connector Type | Impedance | Housing Color | Frequency - Max [Max] | Shield Termination | Number of Ports | Contact Termination | Connector Style | Mounting Type | Center Contact Material | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Brass | Gold | Gold | 335 V | Polytetrafluoroethylene (PTFE) | 105 ░C | -65 ░C | Threaded | Plug Male Pin | 50 Ohms | Gold | 12.4 GHz | Solder | 1 | Solder | SMA | Free Hanging (In-Line) Right Angle | Brass | RG-405 (.085" Semi Rigid) |
 Radiall USA, Inc. | Brass | Gold | Gold | 250 V | Polytetrafluoroethylene (PTFE) | 105 ░C | -65 ░C | Threaded | Plug Male Pin | 50 Ohms | Gold | 12.4 GHz | Solder | 1 | Solder | SMA | Free Hanging (In-Line) Right Angle | Brass |
