A3BRB Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

IDC CABLE - ASR14B/AE14G/APR14B

Part	Length [x]	Length [x]	Number of Rows [custom]	Pitch - Connector	Pitch - Connector	Contact Finish	Number of Positions	Shielding	Pitch - Cable	Pitch - Cable	Cable Termination	Connector Type	Features	Contact Finish Thickness	Contact Finish Thickness	Length	Length	Length	Color	Number of Positions [custom]
TE Connectivity AMP Connectors A3BRB-1418G	457.2 mm	1.5 ft	2	0.1 in	2.54 mm	Gold	14	Unshielded	0.05 in	1.27 mm	IDC	Socket to Plug	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám

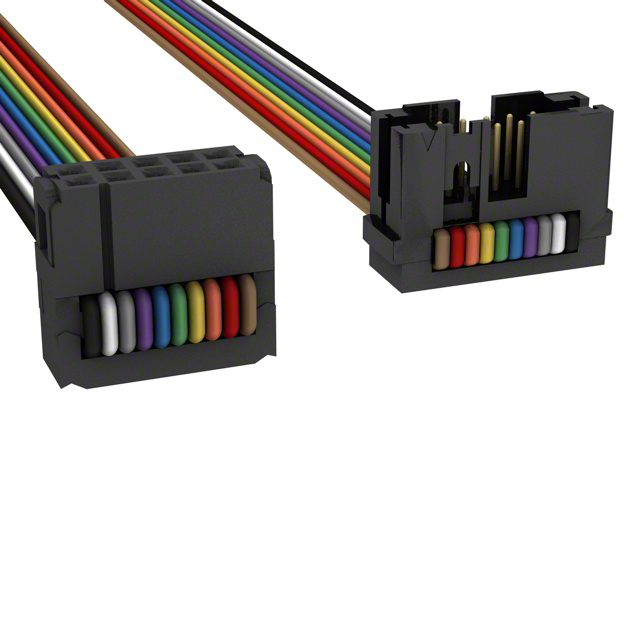

TE Connectivity AMP Connectors A3BRB-1006M			2	0.1 in	2.54 mm	Gold	10	Unshielded	0.05 in	1.27 mm	IDC	Socket to Plug	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	152.4 mm	0.5 '	6 "	Multiple Ribbon

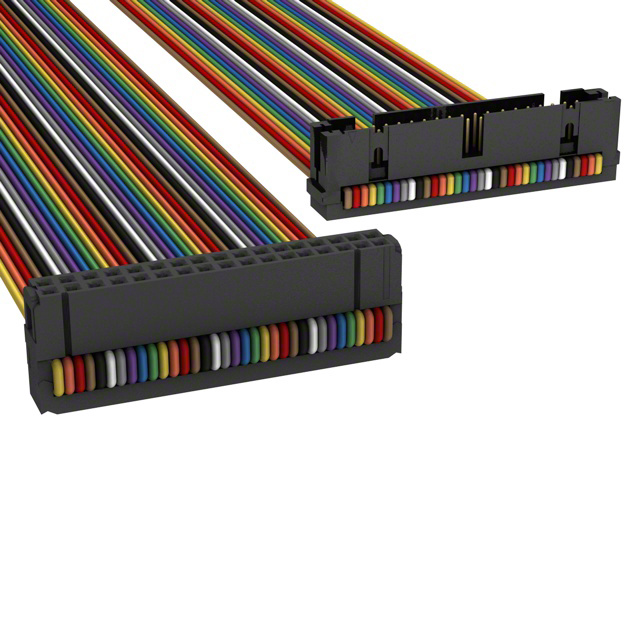

TE Connectivity AMP Connectors A3BRB-3436M			2	0.1 in	2.54 mm	Gold		Unshielded	0.05 in	1.27 mm	IDC	Socket to Plug	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	91.44 cm	3 ft		Multiple Ribbon	34
TE Connectivity AMP Connectors A3BRB-5006G			2	0.1 in	2.54 mm	Gold	50	Unshielded	0.05 in	1.27 mm	IDC	Socket to Plug	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	152.4 mm	0.5 '	6 "
TE Connectivity AMP Connectors A3BRB-2036M			2	0.1 in	2.54 mm	Gold	20	Unshielded	0.05 in	1.27 mm	IDC	Socket to Plug	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	91.44 cm	3 ft		Multiple Ribbon
TE Connectivity AMP Connectors A3BRB-2636M			2	0.1 in	2.54 mm	Gold	26	Unshielded	0.05 in	1.27 mm	IDC	Socket to Plug	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	91.44 cm	3 ft		Multiple Ribbon
TE Connectivity AMP Connectors A3BRB-5018G	457.2 mm	1.5 ft	2	0.1 in	2.54 mm	Gold	50	Unshielded	0.05 in	1.27 mm	IDC	Socket to Plug	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám

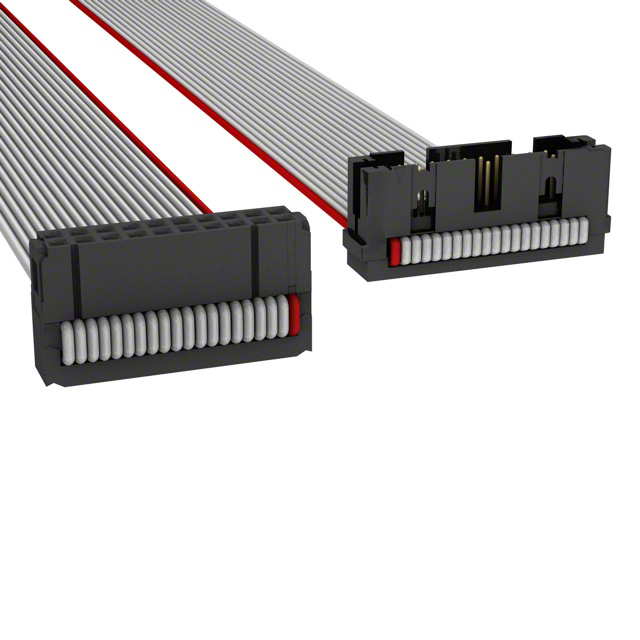

TE Connectivity AMP Connectors A3BRB-2018G	457.2 mm	1.5 ft	2	0.1 in	2.54 mm	Gold	20	Unshielded	0.05 in	1.27 mm	IDC	Socket to Plug	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám

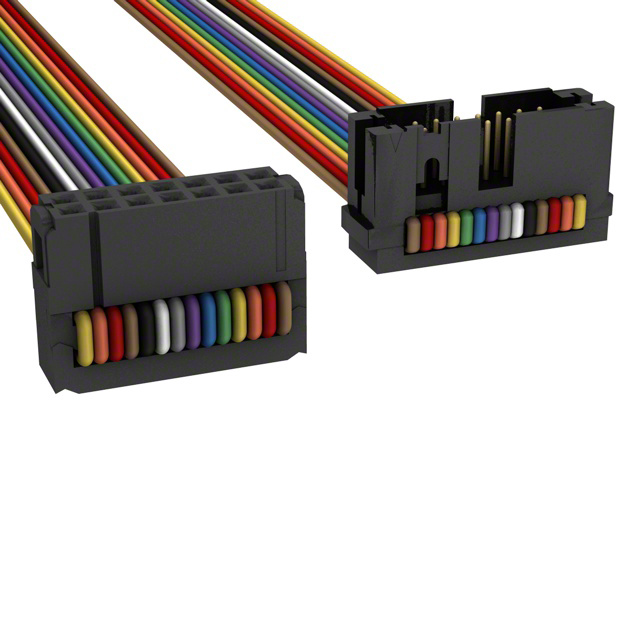

TE Connectivity AMP Connectors A3BRB-1406M			2	0.1 in	2.54 mm	Gold	14	Unshielded	0.05 in	1.27 mm	IDC	Socket to Plug	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám	152.4 mm	0.5 '	6 "	Multiple Ribbon
TE Connectivity AMP Connectors A3BRB-2618G	457.2 mm	1.5 ft	2	0.1 in	2.54 mm	Gold	26	Unshielded	0.05 in	1.27 mm	IDC	Socket to Plug	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	30 Áin	0.76 Ám
