PKB441 Series

Catalog

DC DC CONVERTER 12V 450W

Part	Applications	Features	Control Features	Power (Watts)	Supplier Device Package	Package / Case	Standard Number	Type	Efficiency	Voltage - Isolation	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output 1	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Approval Agency

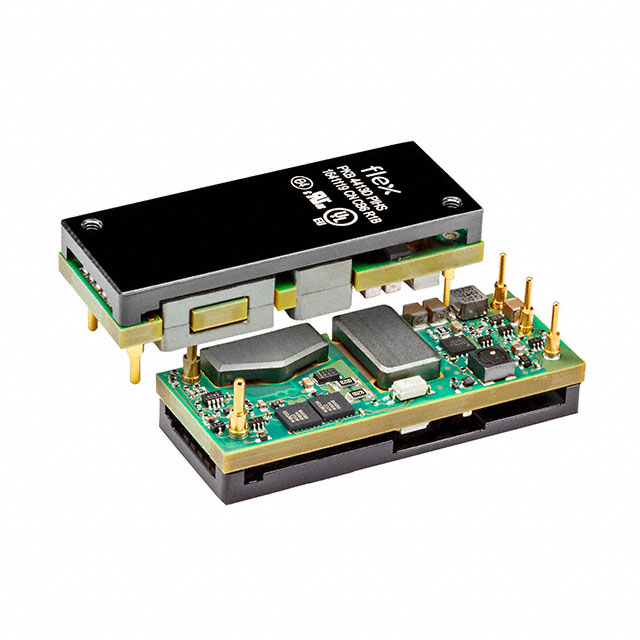

Flex Power Modules PKB4413DPIHS	ITE (Commercial)	Adjustable Output Baseplate Remote On/Off	Active Low Enable	450 W	Eighth Brick	Eighth Brick	62368-1	Intermediate Bus Converter	96 %	1.5 kV	37.5 A	60 V	Through Hole	12 V	1	-40 °C	125 °C	0.52 in	22.7 mm	58.4 mm	0.89 in	2.3 in	13.2 mm	36 V	CB CSA IEC TUV UL
Flex Power Modules PKB4418SIOANB	ITE (Commercial)	Adjustable Output Remote On/Off Remote Sense	Active Low Enable	45 W	Eighth Brick	Eighth Brick	62368-1	Isolated Module	88.8 %	2250 VDC	30 A	75 V	Surface Mount	1.5 V	1	-40 °C	120 °C	0.33 in	22.7 mm	58.4 mm	0.89 in	2.3 in	8.4 mm	36 V	CB CSA IEC TUV UL
Flex Power Modules PKB4413DAPIHS	ITE (Commercial)	Adjustable Output Remote On/Off	Active Low Enable	408 W	Eighth Brick	Eighth Brick	62368-1	Isolated Module	96.2 %	1.5 kV	34 A	75 V	Through Hole	12 V	1	-40 °C	125 °C	0.52 in	22.7 mm	58.4 mm	0.89 in	2.3 in	13.2 mm	36 V	CB CSA IEC TUV UL
Flex Power Modules PKB4418PIOANB	ITE (Commercial)	Adjustable Output Remote On/Off Remote Sense	Active Low Enable	45 W	Eighth Brick	Eighth Brick	62368-1	Isolated Module	88.8 %	2250 VDC	30 A	75 V	Through Hole	1.5 V	1	-40 °C	120 °C	0.32 "	22.7 mm	58.4 mm	0.89 in	2.3 in	8.1 mm	36 V	CB CSA IEC TUV UL
Flex Power Modules PKB4418PINB	ITE (Commercial)	Adjustable Output Remote On/Off Remote Sense	Active Low Enable	45 W	Eighth Brick	Eighth Brick	62368-1	Isolated Module	90 %	2250 VDC	25 A	75 V	Through Hole	1.8 V	1	-40 °C	120 °C	0.32 "	22.7 mm	58.4 mm	0.89 in	2.3 in	8.1 mm	36 V	CB CSA IEC TUV UL
