HLMP-EG1 Series

Catalog

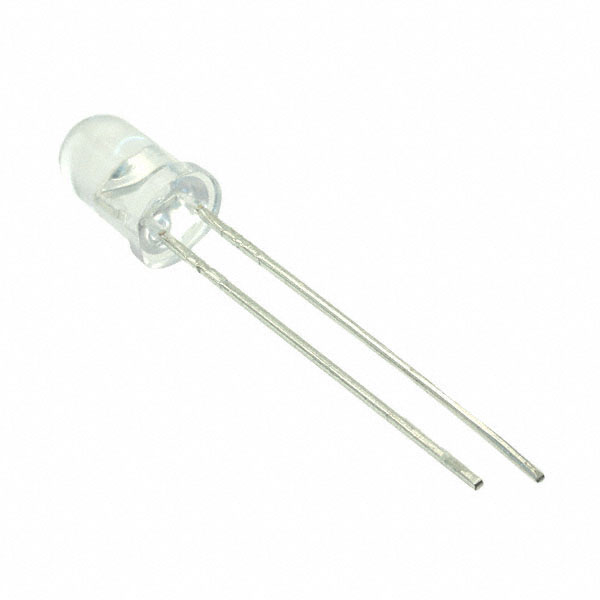

LED RED CLEAR T-1 3/4 T/H

Part	Package / Case	Wavelength - Peak	Color	Current - Test	Viewing Angle	Lens Size	Lens Size	Supplier Device Package	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Height (Max) [Max]	Configuration	Wavelength - Dominant	Lens Style	Mounting Type	Lens Color	Lens Transparency	Height (Max) [Max] [z]	Size / Dimension [diameter]
Broadcom Limited HLMP-EG1A-Z10DD	Radial	634 nm	Red	20 mA	15 °	T-1 3/4	5 mm	T-1 3/4	16500 mcd	2.1 V	8.91 mm	Standard	626 nm	Round with Domed Top	Through Hole	Colorless	Clear
Broadcom Limited HLMP-EG1A-Z10DV	Radial	634 nm	Red	20 mA	15 °	T-1 3/4	5 mm	T-1 3/4	16500 mcd	2.1 V	8.91 mm	Standard	626 nm	Round with Domed Top	Through Hole		Clear
Broadcom Limited HLMP-EG1T-Z20DD	Radial	629 nm	Red	20 mA	15 °	T-1 3/4	5 mm	T-1 3/4 (5mm)		2.1 V		Standard	621 nm	Round with Domed Top	Through Hole			13.28 mm	5 mm

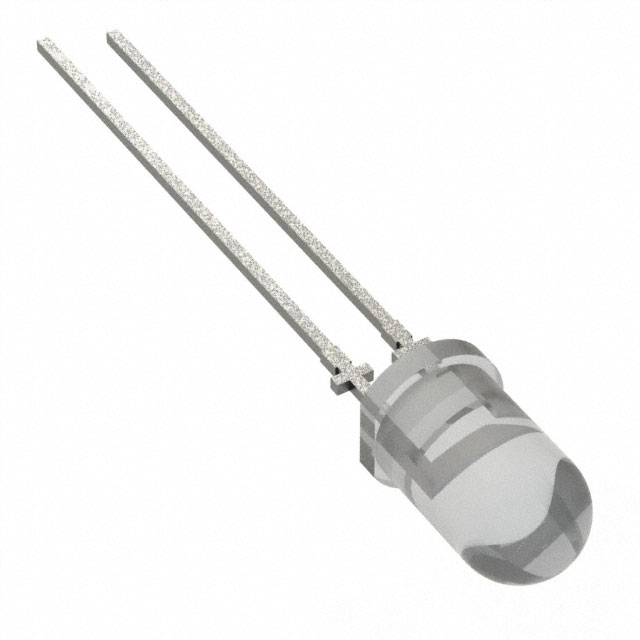

Broadcom Limited HLMP-EG1H-Y10DD	Radial	634 nm	Red	20 mA	15 °	T-1 3/4	5 mm	T-1 3/4	15150 mcd	2.1 V	8.91 mm	Standard	626 nm	Round with Domed Top	Through Hole		Clear
Broadcom Limited HLMP-EG1B-Z10DV	Radial	634 nm	Red	20 mA	15 °	T-1 3/4	5 mm	T-1 3/4	16500 mcd	2.1 V		Standard	626 nm	Round with Domed Top	Through Hole		Clear	12.64 mm
Broadcom Limited HLMP-EG1S-Z20DD	Radial	629 nm	Red	20 mA	15 °	T-1 3/4	5 mm	T-1 3/4 (5mm)		2.1 V	8.91 mm	Standard	621 nm	Round with Domed Top	Through Hole				5 mm
