MB2411S Series

Catalog

SWITCH PUSH SPDT 0.4VA 28V

Part	Electrical Life	Mechanical Life	Voltage Rating - DC	Voltage Rating - AC	Actuator Type	Actuator Marking	Features	Switch Function	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Type	Current Rating (Amps)	Termination Style	Panel Cutout Dimensions [diameter]
NKK Switches MB2411S2G40-FC	100000 Cycles	200000 Cycles	28 V	28 V	Button Round	No Marking	Epoxy Sealed Terminals	On-Mom	Right Angle Through Hole Vertical	SPDT	85 °C	-30 ░C	Red	Standard	0.4 VA	PC Pin
NKK Switches MB2411S1G01-HC	100000 Cycles	200000 Cycles	28 V	28 V	Button Round	No Marking	Epoxy Sealed Terminals	On-Mom	Panel Mount Rear	SPDT	85 °C	-30 ░C	Red	Standard	0.4 VA	Solder Lug	6.5 mm
NKK Switches MB2411S1W03-HB	25000 Steps	200000 Cycles		125 V	Button Round	No Marking	Epoxy Sealed Terminals	On-Mom	Panel Mount Rear	SPDT	85 °C	-30 ░C	White	Standard	3 A	PC Pin	6.5 mm
NKK Switches MB2411S1W01-FA	25000 Steps	200000 Cycles		125 V	Button Round	No Marking	Epoxy Sealed Terminals	On-Mom	Panel Mount Rear	SPDT	85 °C	-30 ░C	Black	Standard	3 A	Solder Lug	6.5 mm
NKK Switches MB2411S1W03-HC	25000 Steps	200000 Cycles		125 V	Button Round	No Marking	Epoxy Sealed Terminals	On-Mom	Panel Mount Rear	SPDT	85 °C	-30 ░C	Red	Standard	3 A	PC Pin	6.5 mm
NKK Switches MB2411S1G01-HB	100000 Cycles	200000 Cycles	28 V	28 V	Button Round	No Marking	Epoxy Sealed Terminals	On-Mom	Panel Mount Rear	SPDT	85 °C	-30 ░C	White	Standard	0.4 VA	Solder Lug	6.5 mm

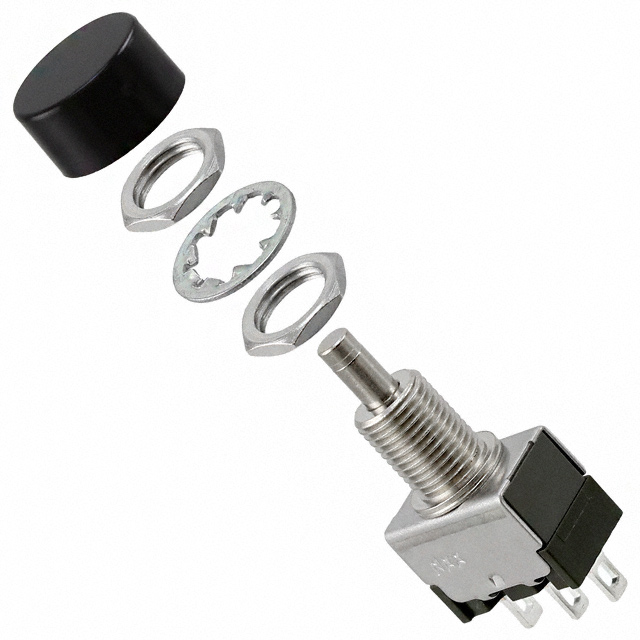

NKK Switches MB2411S1W01-HA	25000 Steps	200000 Cycles		125 V	Button Round	No Marking	Epoxy Sealed Terminals	On-Mom	Panel Mount Rear	SPDT	85 °C	-30 ░C	Black	Standard	3 A	Solder Lug	6.5 mm
NKK Switches MB2411S2G40-HC	100000 Cycles	200000 Cycles	28 V	28 V	Button Round	No Marking	Epoxy Sealed Terminals	On-Mom	Right Angle Through Hole Vertical	SPDT	85 °C	-30 ░C	Red	Standard	0.4 VA	PC Pin

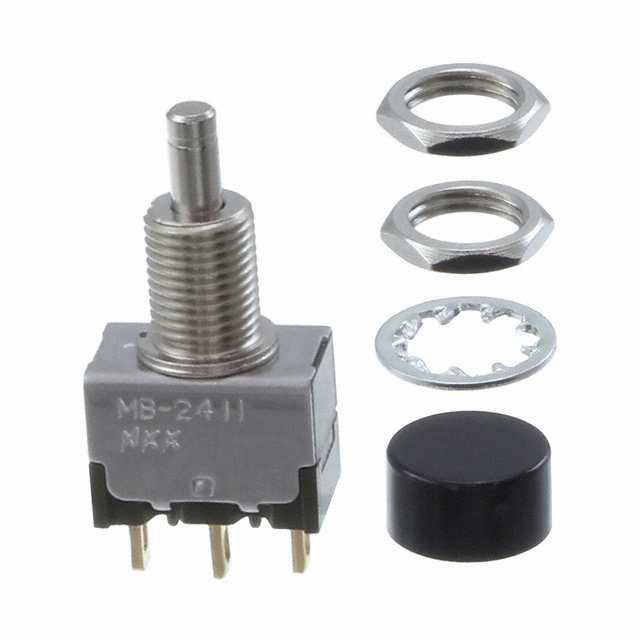

NKK Switches MB2411S1G01-HA	100000 Cycles	200000 Cycles	28 V	28 V	Button Round	No Marking	Epoxy Sealed Terminals	On-Mom	Panel Mount Rear	SPDT	85 °C	-30 ░C	Black	Standard	0.4 VA	Solder Lug	6.5 mm

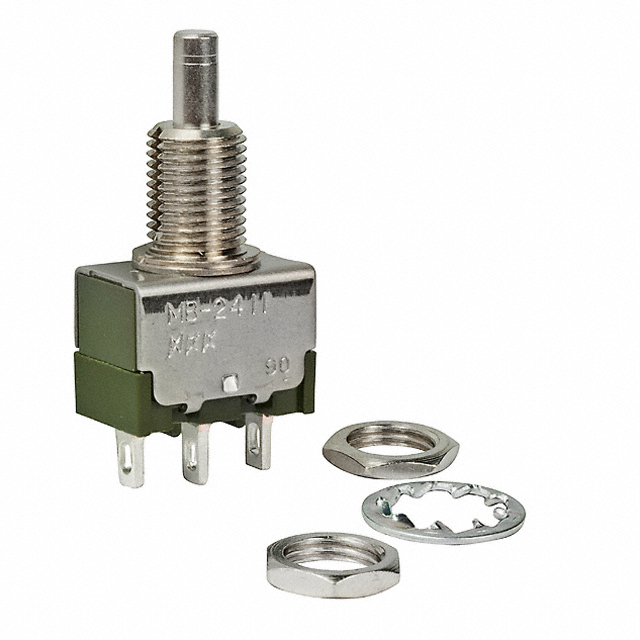

NKK Switches MB2411S1W01	25000 Steps	200000 Cycles		125 V	Plunger for Cap	No Marking	Epoxy Sealed Terminals	On-Mom	Panel Mount Rear	SPDT	85 °C	-30 ░C		Standard	3 A	Solder Lug	6.5 mm
