TSM850 Series

Catalog

MOSFET N-CHANNEL 60V 3A SOT23

Part	Mounting Type	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs (Max)	Package / Case	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	FET Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds

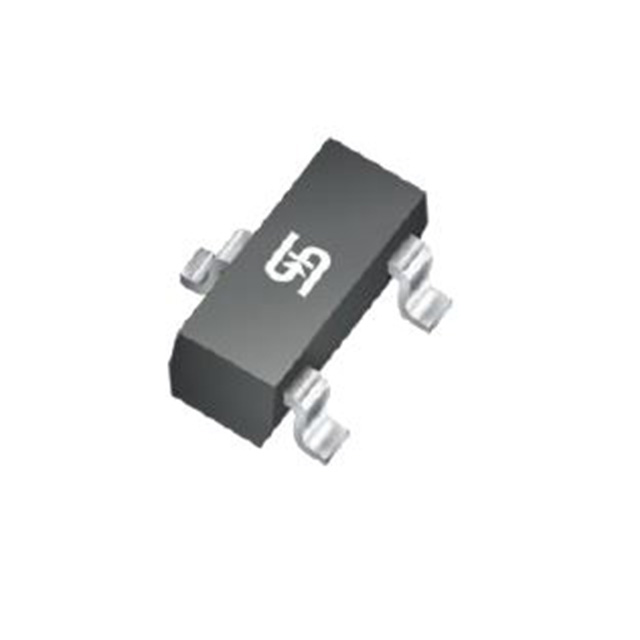

Taiwan Semiconductor Corporation TSM850N06CX RFG	Surface Mount	1.7 W	9.5 nC	20 V	SC-59 SOT-23-3 TO-236-3	85 mOhm	4.5 V 10 V	N-Channel	SOT-23	150 °C	-55 °C	MOSFET (Metal Oxide)	2.5 V	3 A	60 V	529 pF
Taiwan Semiconductor Corporation TSM850N06CX	Surface Mount		9.5 nC	20 V	SC-59 SOT-23-3 TO-236-3	85 mOhm	4.5 V 10 V	N-Channel	SOT-23	150 °C	-55 °C	MOSFET (Metal Oxide)	2.5 V	2.3 A 3 A	60 V	529 pF
