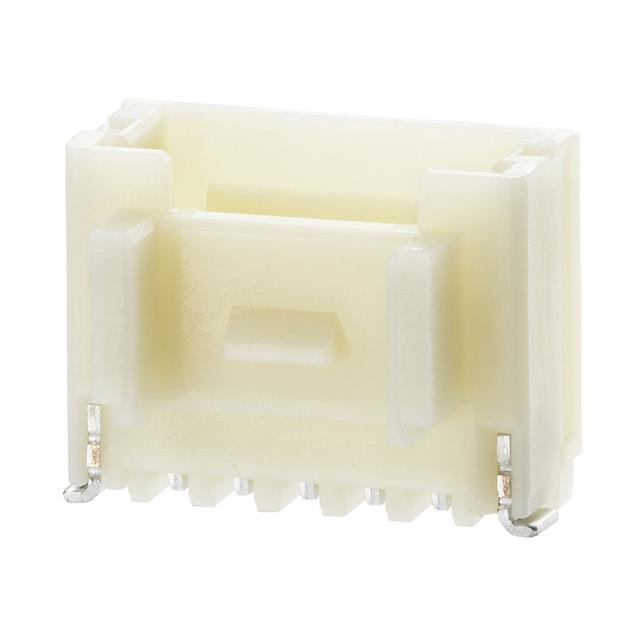

1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Vertical, Surface Mount, 0.76µm Gold Plated, Outer Positive Lock, 5 Circuits, Natural
1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Vertical, Surface Mount, 0.76µm Gold Plated, Outer Positive Lock, 5 Circuits, Natural
1.00mm Pitch, Pico-Clasp PCB Header, Single Row, Vertical, Surface Mount, 0.76µm Gold Plated, Outer Positive Lock, 5 Circuits, Natural
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Connector Type | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Termination | Contact Shape | Features | Shrouding | Pitch - Mating | Pitch - Mating | Contact Type | Insulation Material | Fastening Type | Contact Finish - Post | Contact Finish - Mating | Contact Material | Insulation Color | Mounting Type | Insulation Height | Insulation Height [z] | Style | Current Rating (Amps) | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | -40 °C | 105 ░C | All | Header | UL94 V-0 | 30 Áin | 0.76 Ám | Automotive General Purpose Industrial Medical | Solder | Rectangular | Pick and Place Solder Retention | Shrouded - 4 Wall | 0.039 in | 1 mm | Male Pin | Nylon Polyamide (PA) | Locking Ramp | Gold | Gold | Phosphor Bronze | Natural | Surface Mount | 5.4 mm | 0.213 in | Board to Cable/Wire | Varies by Wire Gauge | 50 V | 2 µin | 0.051 µm | 1 |
