TPS61042 Series
Manufacturer: Texas Instruments
Beta
⌘K
30-V, 500-MA SWITCH BOOST CONVERTER IN QFN-8 FOR WHITE LED APPLICATIONS
| Part | Applications | Internal Switch(s) | Topology | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Voltage - Output | Current - Output / Channel | Frequency | Dimming | Type | Voltage - Supply (Max) [Max] | Voltage - Supply (Min) [Min] | Mounting Type | Number of Outputs | Package / Case | Supplied Contents | Outputs and Type | Outputs and Type | Features | Utilized IC / Part | Voltage - Input [Min] | Voltage - Input [Max] | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Backlight | Step-Up (Boost) | 85 C | -40 ¯C | 8-SON (3x3) | 27.5 V | 60 mA | 1 MHz | PWM | DC DC Regulator | 6 V | 1.8 V | Surface Mount | 1 | 8-VDFN Exposed Pad | |||||||||
Texas Instruments | Backlight | Step-Up (Boost) | 85 C | -40 ¯C | 8-SON (3x3) | 27.5 V | 60 mA | 1 MHz | PWM | DC DC Regulator | 6 V | 1.8 V | Surface Mount | 1 | 8-VDFN Exposed Pad | |||||||||
 Texas Instruments | Backlight | Step-Up (Boost) | 85 C | -40 ¯C | 8-SON (3x3) | 27.5 V | 60 mA | 1 MHz | PWM | DC DC Regulator | 6 V | 1.8 V | Surface Mount | 1 | 8-VDFN Exposed Pad | |||||||||

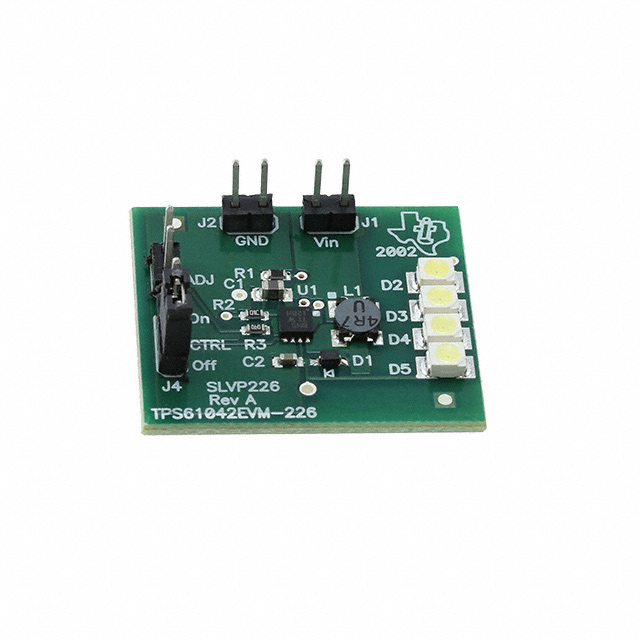

 Texas Instruments | 20 mA | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Dimmable | TPS61042 | 1.8 V | 6 V | Board(s) | |||||||||||||||
Texas Instruments | Backlight | Step-Up (Boost) | 85 C | -40 ¯C | 8-SON (3x3) | 27.5 V | 60 mA | 1 MHz | PWM | DC DC Regulator | 6 V | 1.8 V | Surface Mount | 1 | 8-VDFN Exposed Pad |
