CABLE 391 Series
Manufacturer: GCT
Beta
⌘K

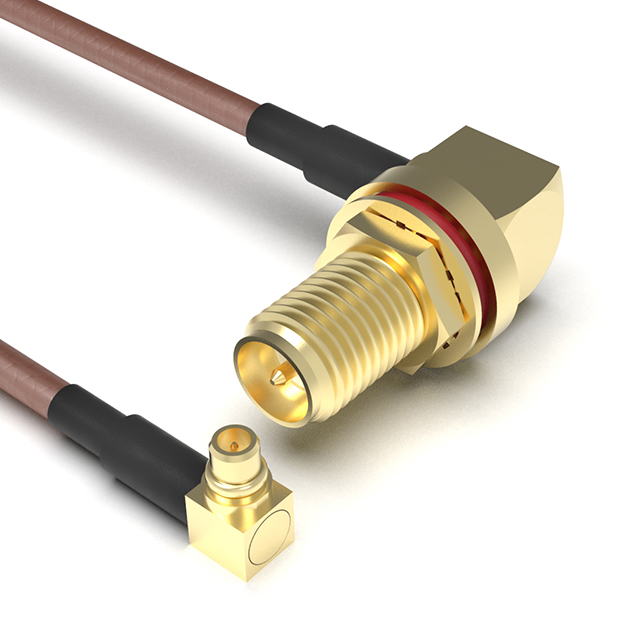

CBL ASSY SMA-MMCX JCK-PLG 7.874"
| Part | Cable Type | Operating Temperature [Max] | Operating Temperature [Min] | Cable Impedance | Color | 2nd Connector | 2nd Connector Mounting Type | Frequency - Max [Max] | Ingress Protection | Overall Impedance | Style | Length | Length | 1st Connector Mounting Feature | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector | Features | 2nd Contact Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RG-178 | 125 °C | -40 C | 50 Ohms | Brown | MMCX Plug Right Angle | Free Hanging (In-Line) | 6000 MHz | IP67/IP68 | 50 Ohms | SMA to MMCX | 200 mm | 7.874 in | Bulkhead - Front Side Nut | Female | Panel Mount | SMA Jack Right Angle | IP Rated Unmated | Male | |
RG-178 | 125 °C | -40 C | 50 Ohms | Brown | MMCX Plug Right Angle | Free Hanging (In-Line) | 6000 MHz | IP67/IP68 | 50 Ohms | SMA to MMCX | 200 mm | 7.874 in | Bulkhead - Front Side Nut | Female | Panel Mount | SMA Jack Right Angle | IP Rated Unmated | Male |
