1-435802 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH PIANO DIP SPST 0.025A 24V
| Part | Electrical Life | Length | Length | Body Material | Pitch | Pitch | Height Above Board [z] | Height Above Board [z] | Voltage Rating | Actuator Type | Actuator Level | Contact Finish | Circuit | Features | Washable | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions | Termination Style | Contact Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

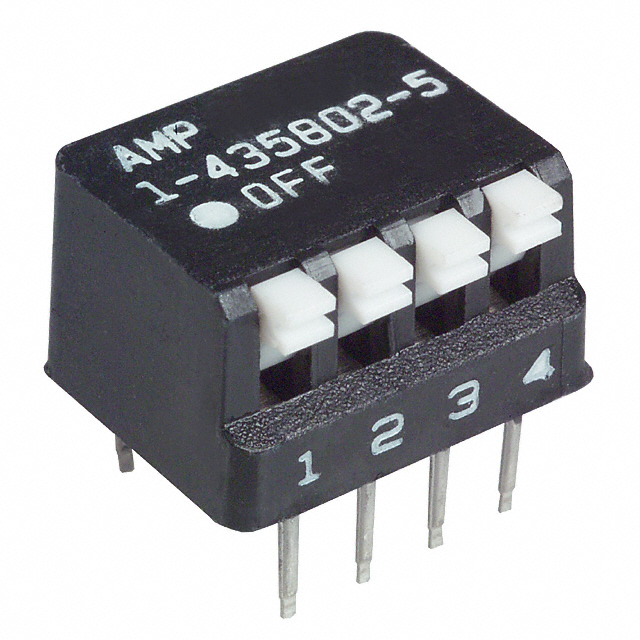

 TE Connectivity AMP Connectors | 7000 Cycles | 12.19 mm | 0.48 in | Polyester (PET) Glass Filled | 2.54 mm | 0.1 " | 7.37 mm | 0.29 in | 24 VDC | Piano | Raised | Gold | SPST | Tape Seal | 25 mA | -55 C | 105 ░C | Right Angle Through Hole | 4 | PC Pin | Copper Alloy | |||

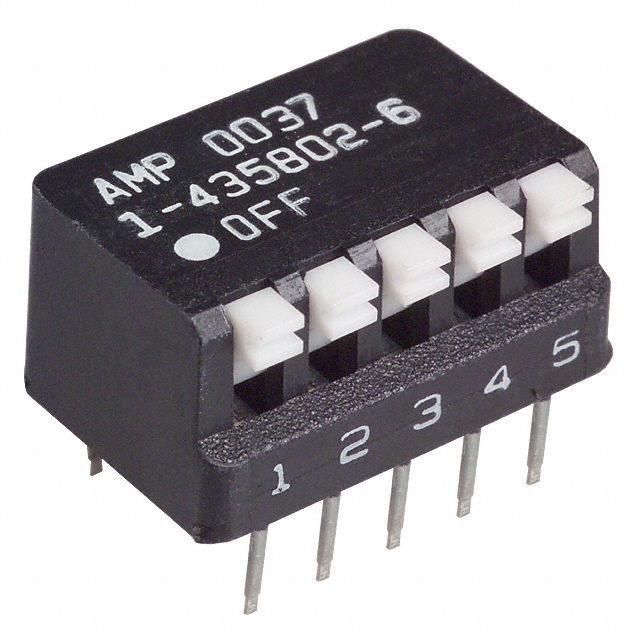

 TE Connectivity AMP Connectors | 7000 Cycles | Polyester (PET) Glass Filled | 2.54 mm | 0.1 " | 7.37 mm | 0.29 in | 24 VDC | Piano | Raised | Gold | SPST | Tape Seal | 25 mA | -55 C | 105 ░C | Right Angle Through Hole | 5 | PC Pin | Copper Alloy | 0.58 in | 14.73 mm |
