TSC2008-Q1 Series

Automotive Catalog Nano-Power Touch Screen Controller with SPI

Catalog

Automotive Catalog Nano-Power Touch Screen Controller with SPI

Part	Primary Attributes	Function	Secondary Attributes	Supplied Contents	Type	Resolution (Bits)	Package / Case	Supplier Device Package	Touchscreen	Interface	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Reference	Qualification	Grade

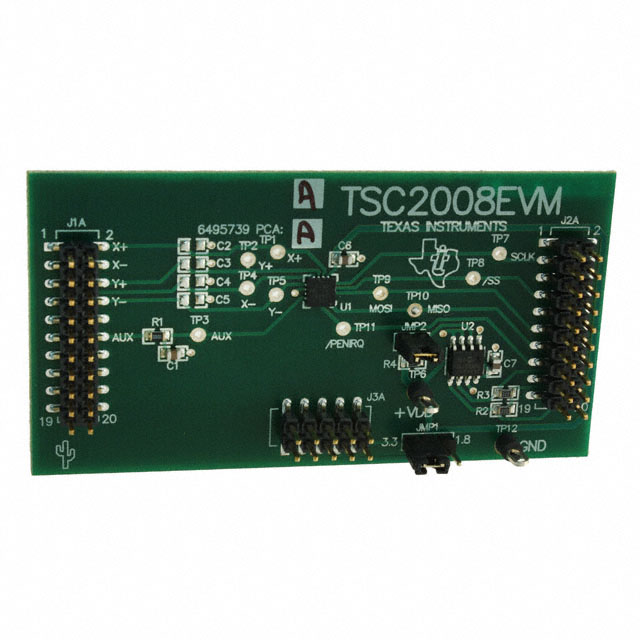

Texas Instruments TSC2008EVM	4-Wire Resistive	Touch Screen Controller	Graphical User Interface (GUI)	Board(s)	Interface
Texas Instruments TSC2008IRGVT						8 b 12 b	16-VFQFN Exposed Pad	16-VQFN (3x3)	4 Wire Resistive	SPI	Surface Mount	1.2 V	3.6 V	85 °C	-40 °C	External
Texas Instruments TSC2008IRGVR						8 b 12 b	16-VFQFN Exposed Pad	16-VQFN (3x3)	4 Wire Resistive	SPI	Surface Mount	1.2 V	3.6 V	85 °C	-40 °C	External

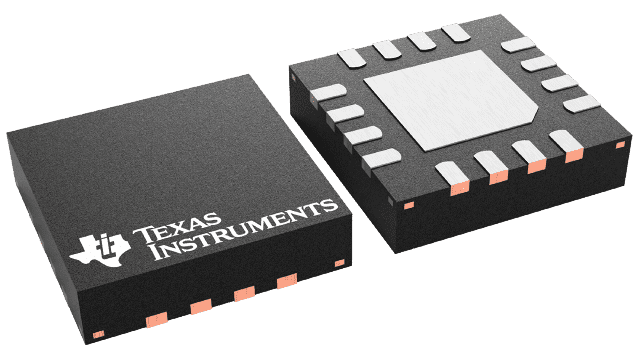

Texas Instruments TSC2008TRGVRQ1						8 b 12 b	16-VQFN Exposed Pad	16-VQFN (4x4)	4 Wire Resistive	SPI	Surface Mount	1.2 V	3.6 V	105 ░C	-40 °C	External	AEC-Q100	Automotive

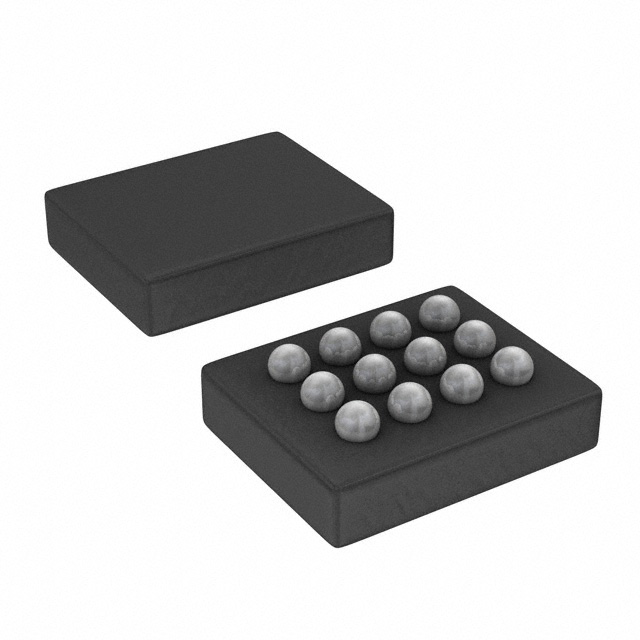

Texas Instruments TSC2008IYZGT						8 b 12 b	12-UFBGA DSBGA	12-DSBGA	4 Wire Resistive	SPI	Surface Mount	1.2 V	3.6 V	85 °C	-40 °C	External

Catalog

Automotive Catalog Nano-Power Touch Screen Controller with SPI

Key Features

• 4-Wire Touch Screen InterfaceSingle 1.2V to 3.6V Supply/ReferenceRatiometric ConversionEffective Throughput Rate:Up to 20kHz (8-Bit) or 10kHz (12-Bit)Preprocessing to Reduce Bus ActivityHigh-Speed SPI™ (up to 25MHz)Simple Command-Based User Interface:TSC2046 Compatible8- or 12-Bit ResolutionOn-Chip Temperature MeasurementTouch Pressure MeasurementDigital BufferedPENIRQOn-Chip, ProgrammablePENIRQPull-upAuto Power-Down ControlLow Power (12-Bit, 8.2kHz Eq Rate):30.4µA at 1.2V, fSCLK= 5MHz35.5µA at 1.8V, fSCLK= 10MHz44.6µA at 2.7V, fSCLK= 10MHzPower-On, Software, and SureSet™ ResetsEnhanced ESD Protection:±8kV HBM±1kV CDM±25kV Air Gap Discharge±15kV Contact Discharge1.5 x 2 WCSP-12 and 4 x 4 QFN-16 PackagesAPPLICATIONSCellular PhonesPDA, GPS, and Media PlayersPortable InstrumentsPoint-of-Sale TerminalsMulti-Screen Touch Control SystemsU.S. Patent No. 6246394; other patents pending.SureSet is a trademark of Texas Instruments.SPI is a trademark of Motorola Inc.All other trademarks are the property of their respective owners.4-Wire Touch Screen InterfaceSingle 1.2V to 3.6V Supply/ReferenceRatiometric ConversionEffective Throughput Rate:Up to 20kHz (8-Bit) or 10kHz (12-Bit)Preprocessing to Reduce Bus ActivityHigh-Speed SPI™ (up to 25MHz)Simple Command-Based User Interface:TSC2046 Compatible8- or 12-Bit ResolutionOn-Chip Temperature MeasurementTouch Pressure MeasurementDigital BufferedPENIRQOn-Chip, ProgrammablePENIRQPull-upAuto Power-Down ControlLow Power (12-Bit, 8.2kHz Eq Rate):30.4µA at 1.2V, fSCLK= 5MHz35.5µA at 1.8V, fSCLK= 10MHz44.6µA at 2.7V, fSCLK= 10MHzPower-On, Software, and SureSet™ ResetsEnhanced ESD Protection:±8kV HBM±1kV CDM±25kV Air Gap Discharge±15kV Contact Discharge1.5 x 2 WCSP-12 and 4 x 4 QFN-16 PackagesAPPLICATIONSCellular PhonesPDA, GPS, and Media PlayersPortable InstrumentsPoint-of-Sale TerminalsMulti-Screen Touch Control SystemsU.S. Patent No. 6246394; other patents pending.SureSet is a trademark of Texas Instruments.SPI is a trademark of Motorola Inc.All other trademarks are the property of their respective owners.

Description

The TSC2008 is a very low-power touch screen controller designed to work with power-sensitive, handheld applications that are based on advanced low-voltage processors. It works with a supply voltage as low as 1.2V, which can be supplied by a single-cell battery. It contains a complete, ultra-low power, 12-bit, analog-to-digital (A/D) resistive touch screen converter, including drivers and the control logic to measure touch pressure. In addition to these standard features, the TSC2008 offers preprocessing of the touch screen measurements to reduce bus loading, thus reducing the consumption of host processor resources that can then be redirected to more critical functions. The TSC2008 supports an SPI serial bus and data transmission. It offers programmable resolution of 8 or 12 bits to accommodate different screen sizes and performance needs. The TSC2008 is available in a 12-lead,(1,555 ±0,055mm) x (2,055 ±0,055mm) 3 x 4 array, wafer chip-scale package (WCSP), and a 16-pin, 4 x 4 QFN package. The TSC2008 is characterized for the -40°C to +85°C industrial temperature range. The TSC2008 is a very low-power touch screen controller designed to work with power-sensitive, handheld applications that are based on advanced low-voltage processors. It works with a supply voltage as low as 1.2V, which can be supplied by a single-cell battery. It contains a complete, ultra-low power, 12-bit, analog-to-digital (A/D) resistive touch screen converter, including drivers and the control logic to measure touch pressure. In addition to these standard features, the TSC2008 offers preprocessing of the touch screen measurements to reduce bus loading, thus reducing the consumption of host processor resources that can then be redirected to more critical functions. The TSC2008 supports an SPI serial bus and data transmission. It offers programmable resolution of 8 or 12 bits to accommodate different screen sizes and performance needs. The TSC2008 is available in a 12-lead,(1,555 ±0,055mm) x (2,055 ±0,055mm) 3 x 4 array, wafer chip-scale package (WCSP), and a 16-pin, 4 x 4 QFN package. The TSC2008 is characterized for the -40°C to +85°C industrial temperature range.
