580-M10 Series

Catalog

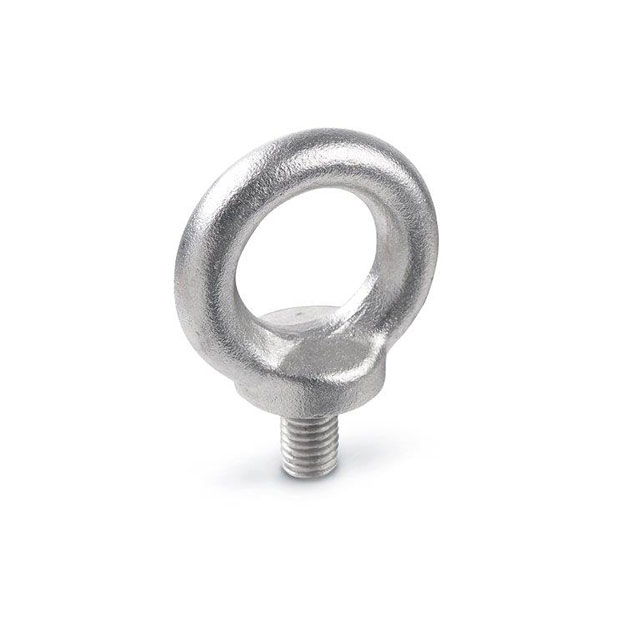

STAINLESS STEEL LIFTING EYE BOLT

Part	Length - Overall [x]	Length - Overall [x]	Length - Below Head [x]	Length - Below Head [x]	Head Height	Head Height	Head Diameter	Head Diameter [diameter]	Type	Thread Size	Material	Plating
J.W. Winco 580-M10-NI	61.98 mm	2.44 in	0.67 in	17.02 mm	1.77 "	44.96 mm	44.96 mm	1.77 in	Bolt	M10	Stainless Steel
J.W. Winco 580-M10-A4	61.98 mm	2.44 in	0.67 in	17.02 mm	1.77 "	44.96 mm	44.96 mm	1.77 in	Bolt	M10	Stainless Steel
J.W. Winco 580-M10-ST	61.98 mm	2.44 in	0.67 in	17.02 mm	1.77 "	44.96 mm	44.96 mm	1.77 in	Bolt	M10		Zinc
