EVJ-C Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

POT 50K OHM 1/20W LINEAR

Part	Taper	Rotation	Tolerance	Number of Gangs	Built in Switch	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Termination Style	Actuator Length [x]	Actuator Length [x]	Bushing Thread	Size - Body [y]	Size - Body [x]	Size - Body [y]	Size - Body [x]	Adjustment Type	Number of Turns	Resistance (Ohms)	Actuator Type	Power (Watts)	Power (Watts)	Resistance (Ohms)	Mounting Type	Actuator Length [z]	Actuator Length [z]

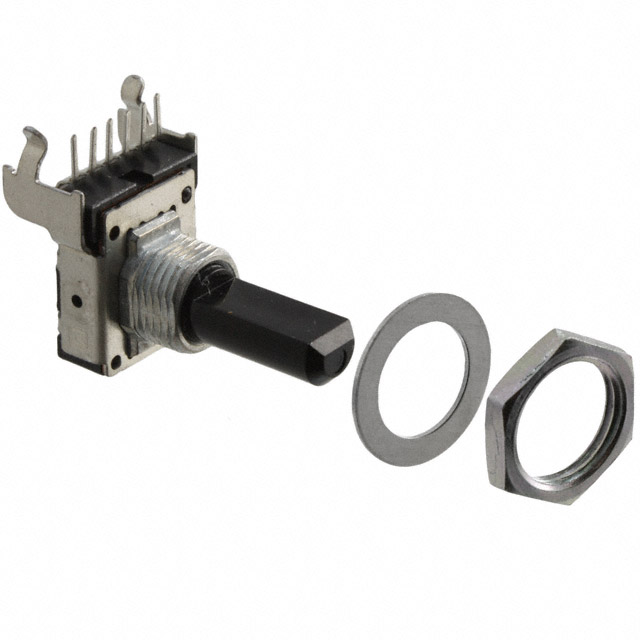

Panasonic Industrial Automation Sales EVJ-C51F02B54	Linear	300 ░	20 %	2	Detent	0.236 in	6 mm	Board Locks PC Pins	0.689 in	17.5 mm	M9 x 0.75	12.1 mm	15.5 mm	0.476 "	0.61 "	Side Adjustment	1	50 kOhms	Flatted	0.05 W	50 mW
Panasonic Industrial Automation Sales EVJ-C51F02B14	Linear	300 ░	20 %	2	Detent	0.236 in	6 mm	Board Locks PC Pins	0.689 in	17.5 mm	M9 x 0.75	12.1 mm	15.5 mm	0.476 "	0.61 "	Side Adjustment	1		Flatted	0.05 W	50 mW	10k
Panasonic Industrial Automation Sales EVJ-C00F25A14	Logarithmic	300 ░	20 %	2		0.236 in	6 mm	Board Locks PC Pins				12.1 mm	15.5 mm	0.476 "	0.61 "	Side Adjustment	1		Flatted	0.05 W	50 mW	10k	Snap In Through Hole	0.72 in	18.3 mm
Panasonic Industrial Automation Sales EVJ-C56F02B53	Linear	300 ░	20 %	2		0.236 in	6 mm	Board Locks PC Pins	0.689 in	17.5 mm		12.1 mm	15.5 mm	0.476 "	0.61 "	Side Adjustment	1	5 kOhms	Flatted	0.05 W	50 mW		Snap In Through Hole
Panasonic Industrial Automation Sales EVJ-C20F02D53	Logarithmic	300 ░	20 %	2		0.236 in	6 mm	Board Locks PC Pins	0.689 in	17.5 mm	M9 x 0.75	12.1 mm	15.5 mm	0.476 "	0.61 "	Side Adjustment	1	5 kOhms	Flatted	0.05 W	50 mW
Panasonic Industrial Automation Sales EVJ-C25F02A24	Logarithmic	300 ░	20 %	2		0.236 in	6 mm	Board Locks PC Pins	0.689 in	17.5 mm		12.1 mm	15.5 mm	0.476 "	0.61 "	Side Adjustment	1	20 kOhms	Flatted	0.05 W	50 mW		Snap In Through Hole
Panasonic Industrial Automation Sales EVJ-C25F02D53	Logarithmic	300 ░	20 %	2		0.236 in	6 mm	Board Locks PC Pins	0.689 in	17.5 mm		12.1 mm	15.5 mm	0.476 "	0.61 "	Side Adjustment	1	5 kOhms	Flatted	0.05 W	50 mW		Snap In Through Hole
Panasonic Industrial Automation Sales EVJ-C31F25B24	Linear	300 ░	20 %	2	Detent	0.236 in	6 mm	Board Locks PC Pins				12.1 mm	15.5 mm	0.476 "	0.61 "	Side Adjustment	1	20 kOhms	Flatted	0.05 W	50 mW		Snap In Through Hole	0.72 in	18.3 mm
Panasonic Industrial Automation Sales EVJ-C25F02A53	Logarithmic	300 ░	20 %	2		0.236 in	6 mm	Board Locks PC Pins	0.689 in	17.5 mm		12.1 mm	15.5 mm	0.476 "	0.61 "	Side Adjustment	1	5 kOhms	Flatted	0.05 W	50 mW		Snap In Through Hole
Panasonic Industrial Automation Sales EVJ-C25F02D14	Logarithmic	300 ░	20 %	2		0.236 in	6 mm	Board Locks PC Pins	0.689 in	17.5 mm		12.1 mm	15.5 mm	0.476 "	0.61 "	Side Adjustment	1		Flatted	0.05 W	50 mW	10k	Snap In Through Hole
