8467MN Series

Catalog

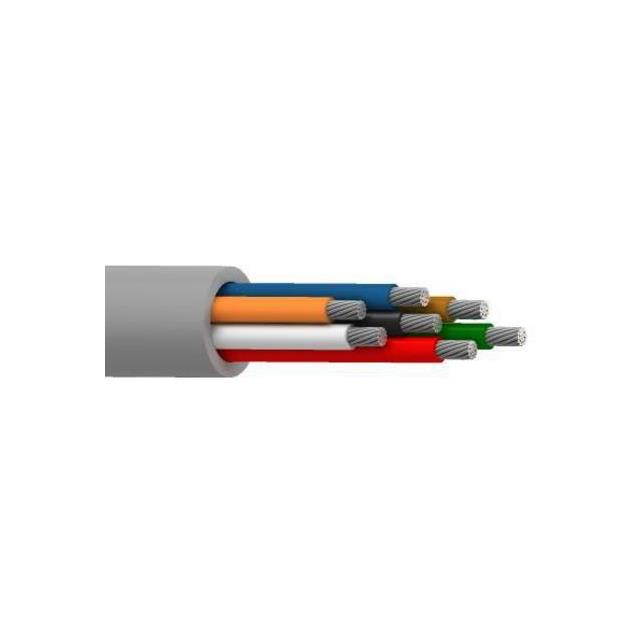

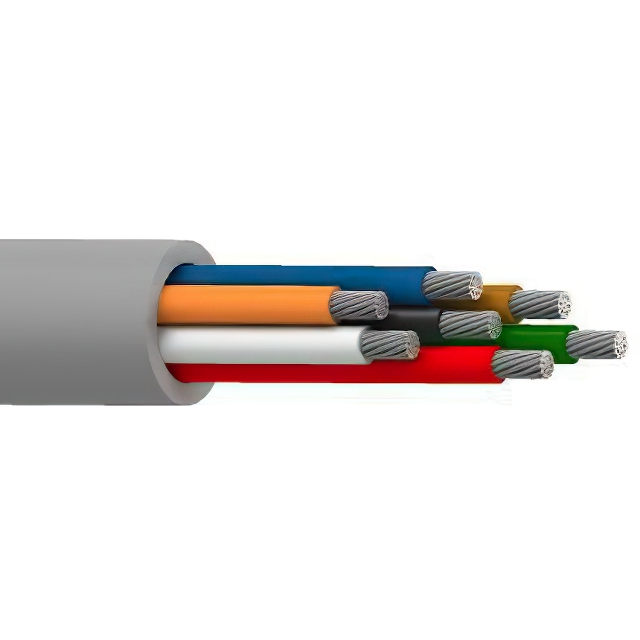

CABLE 7COND 18AWG GRAY

Part	Number of Conductors	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Wire Gauge	Length [x]	Length [x]	Jacket (Insulation) Material	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Voltage	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Length	Length
Belden Inc. 8467MN 008100	7	80 °C	-20 ░C	Gray	18 AWG	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.406 mm	0.016 in	Audio Control Instrumentation	300 VDC	UL Style 2937	41	34	Multi-Conductor	5.92 mm	0.233 in	Polypropylene (PP)
Belden Inc. 8467MN 0041000	7	80 °C	-20 ░C	Yellow	18 AWG			Poly-Vinyl Chloride (PVC)	Copper Tinned	0.406 mm	0.016 in	Audio Control Instrumentation	300 VDC	UL Style 2937	41	34	Multi-Conductor	5.92 mm	0.233 in	Polypropylene (PP)	304.8 m	1000 ft
Belden Inc. 8467MN 0081000	7	80 °C	-20 ░C	Gray	18 AWG			Poly-Vinyl Chloride (PVC)	Copper Tinned	0.406 mm	0.016 in	Audio Control Instrumentation	300 VDC	UL Style 2937	41	34	Multi-Conductor	5.92 mm	0.233 in	Polypropylene (PP)	304.8 m	1000 ft
Belden Inc. 8467MN 004100	7	80 °C	-20 ░C	Yellow	18 AWG	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.406 mm	0.016 in	Audio Control Instrumentation	300 VDC	UL Style 2937	41	34	Multi-Conductor	5.92 mm	0.233 in	Polypropylene (PP)
Belden Inc. 8467MN 006100	7	80 °C	-20 ░C	Blue	18 AWG	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)	Copper Tinned	0.406 mm	0.016 in	Audio Control Instrumentation	300 VDC	UL Style 2937	41	34	Multi-Conductor	5.92 mm	0.233 in	Polypropylene (PP)
