001506 Series

Manufacturer: Molex

Catalog

CONN HOUSING PL 8 POS 4.2MM CRIMP ST PANEL MOUNT NATURAL MINI-FIT® BMI BAG

Part	Note	Number of Rows [custom]	Contact Type	Contact Termination	Mounting Type	Number of Positions	Pitch	Pitch	Connector Type	Color	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing	Features

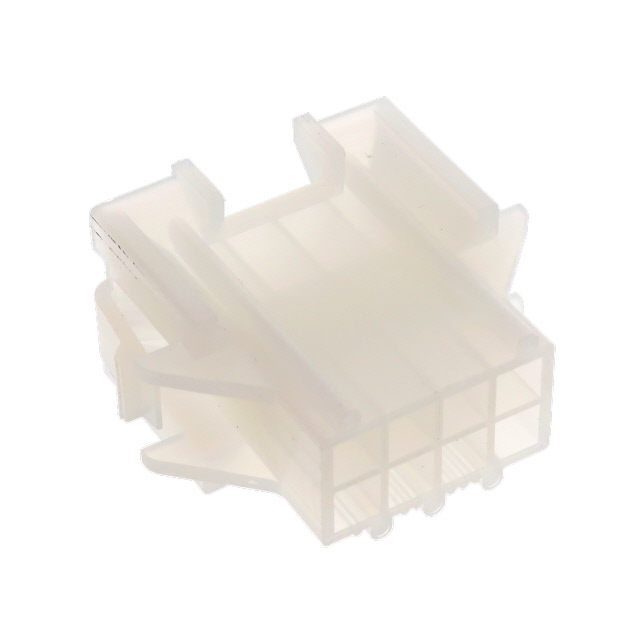

Molex 0015060085	Contacts Not Included	2	Male Pin	Crimp	Panel Mount Snap-In	8	0.165 in	4.2 mm	Plug	Natural	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	0.165 in	4.2 mm	Blind Mating
Molex 0015060101	Contacts Not Included	2	Female Socket	Crimp	Panel Mount	10	0.165 in	4.2 mm	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	0.165 in	4.2 mm	Blind Mating

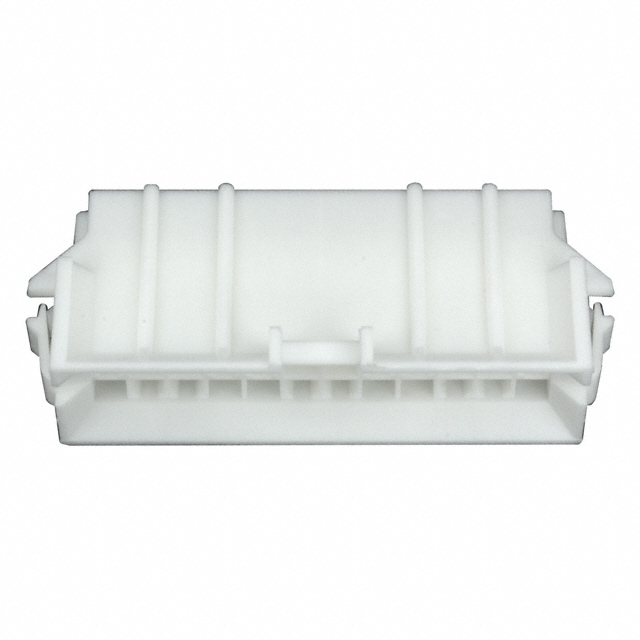

Molex 0015060246	Contacts Not Included	2	Male Pin	Crimp	Panel Mount Snap-In	24	0.165 in	4.2 mm	Plug	Natural	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	0.165 in	4.2 mm	Blind Mating
Molex 0015060041	Contacts Not Included	2	Female Socket	Crimp	Panel Mount	4	0.165 in	4.2 mm	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	0.165 in	4.2 mm	Blind Mating

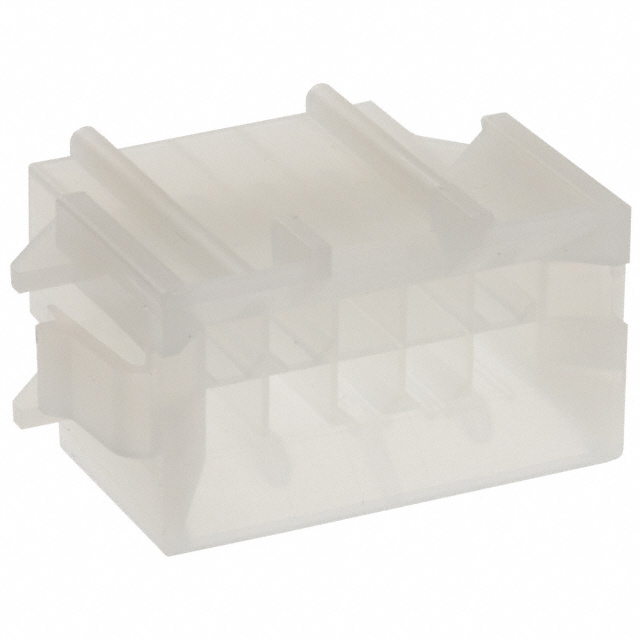

Molex 0015060105	Contacts Not Included	2	Male Pin	Crimp	Panel Mount Snap-In	10	0.165 in	4.2 mm	Plug	Natural	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	0.165 in	4.2 mm	Blind Mating

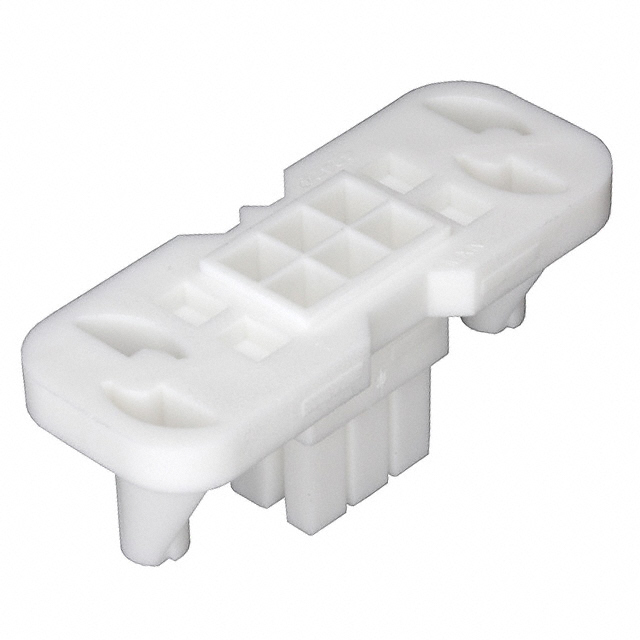

Molex 0015060061	Contacts Not Included	2	Female Socket	Crimp	Panel Mount	6	0.165 in	4.2 mm	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	0.165 in	4.2 mm	Blind Mating

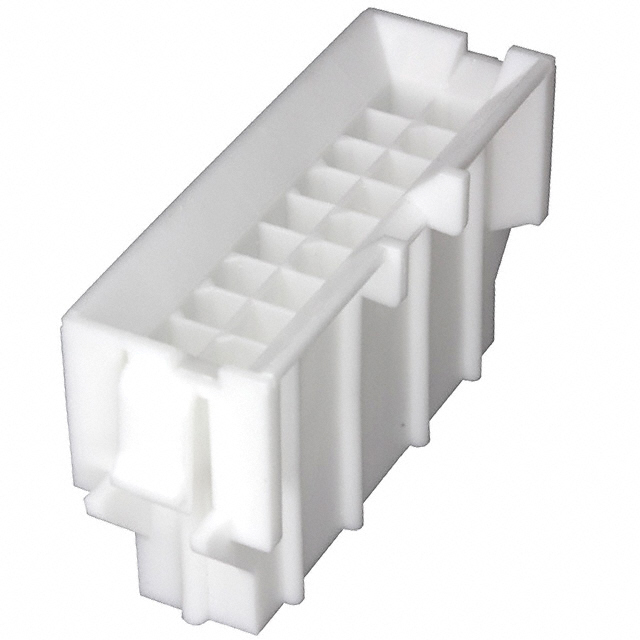

Molex 0015060186	Contacts Not Included	2	Male Pin	Crimp	Panel Mount Snap-In	18	0.165 in	4.2 mm	Plug	Natural	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	0.165 in	4.2 mm	Blind Mating

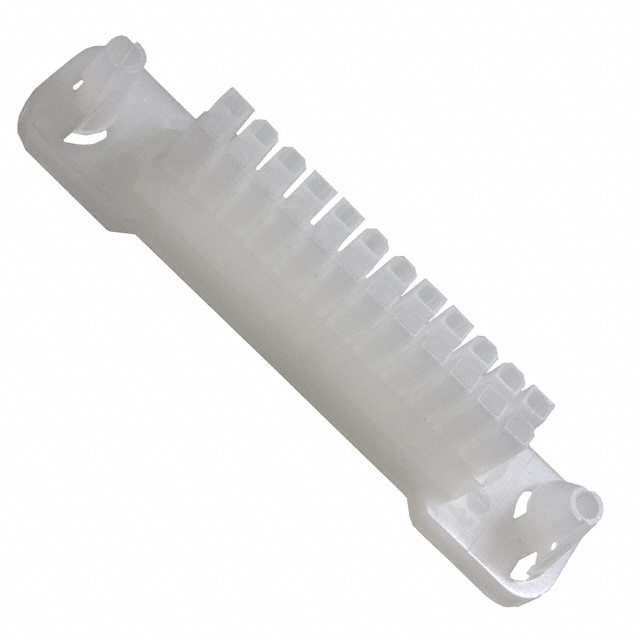

Molex 0015060240	Contacts Not Included	2	Female Socket	Crimp	Panel Mount	24	0.165 in	4.2 mm	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	0.165 in	4.2 mm	Blind Mating

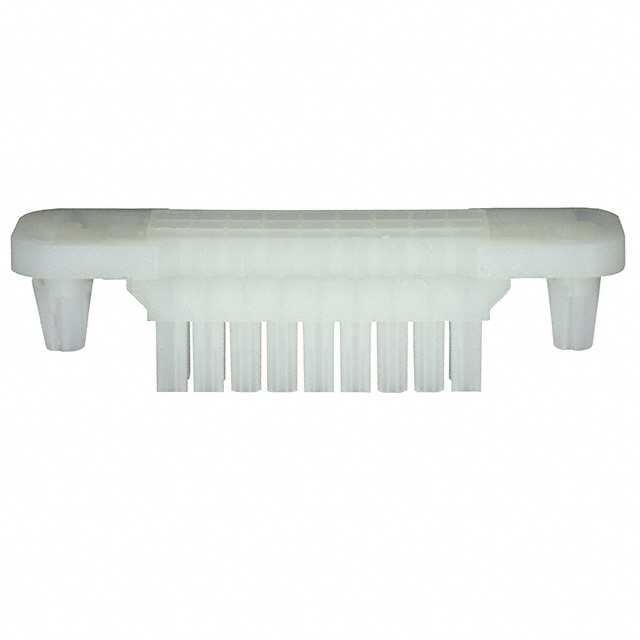

Molex 0015060180	Contacts Not Included	2	Female Socket	Crimp	Panel Mount	18	0.165 in	4.2 mm	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	0.165 in	4.2 mm	Blind Mating

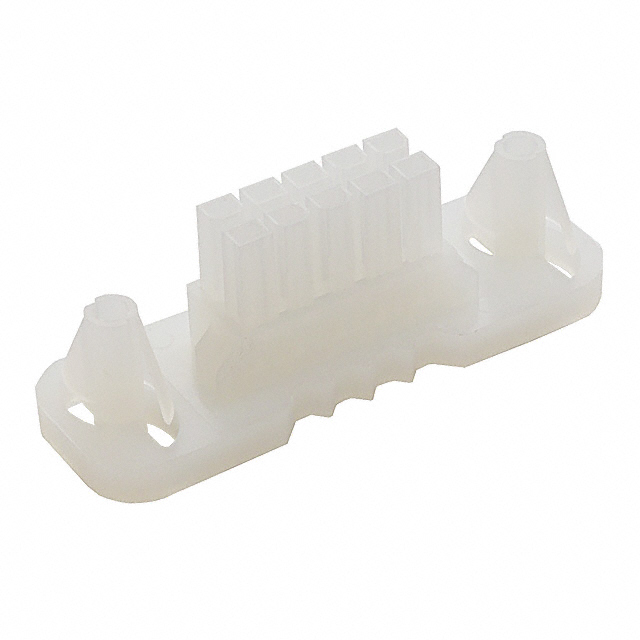

Molex 0015060100	Contacts Not Included	2	Female Socket	Crimp	Panel Mount	10	0.165 in	4.2 mm	Receptacle	Natural	Nylon 6/6 Polyamide (PA66)	-40 C	105 ░C	0.165 in	4.2 mm	Blind Mating
