KISSLING Series ES Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ACTUATION PROTECTION 24-63-029 BX

Part	Accessory Type	For Use With/Related Products	Reset Operation	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Ingress Protection	Mounting Type	Circuit	Voltage Rating - DC	Current Rating (Amps)	Termination Style
TE Connectivity AMP Connectors 24-63-029	E-Stop Shroud	ES Series

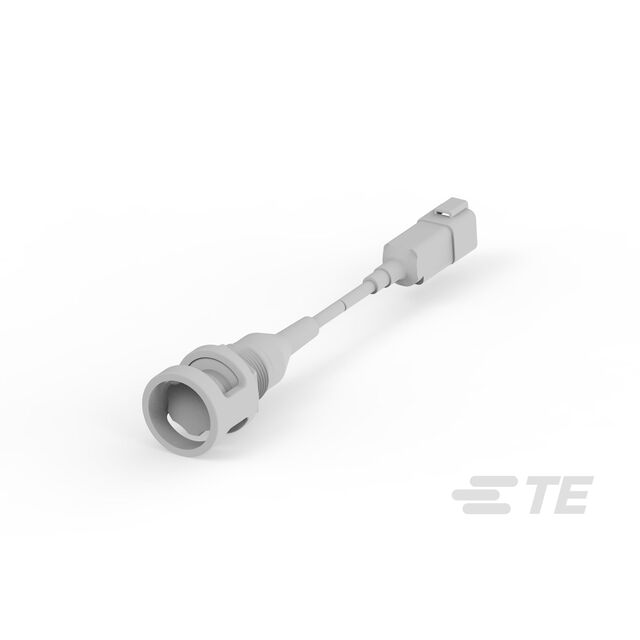

TE Connectivity AMP Connectors ES-2011-T321-030C 907			Twist	Off-On On-Off	85 °C	-40 C	30.5 mm	IP67/IP69K	Panel Mount Front	DPST-NO/NC	32 V	10 A

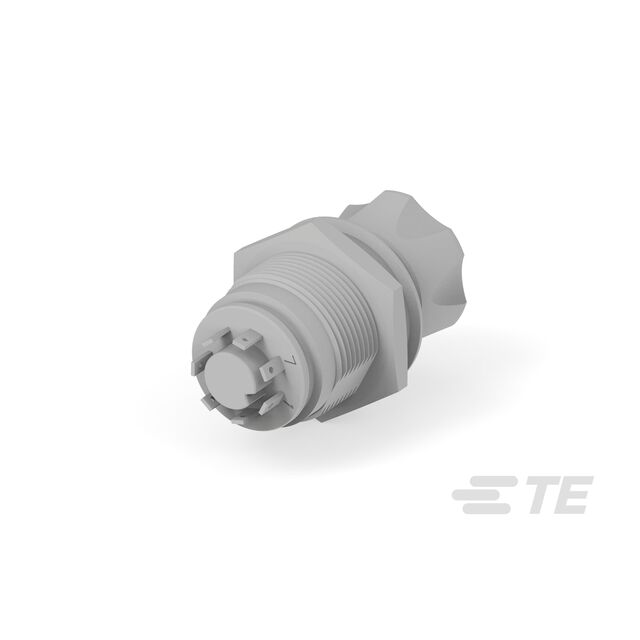

TE Connectivity AMP Connectors ES-2012-T211			Twist	Off-On On-Off	85 °C	-40 C	30.5 mm	IP67/IP69K	Panel Mount Front	3PST-2NC/1NO	32 V	10 A	Quick Connect - 0.110" (2.8mm)

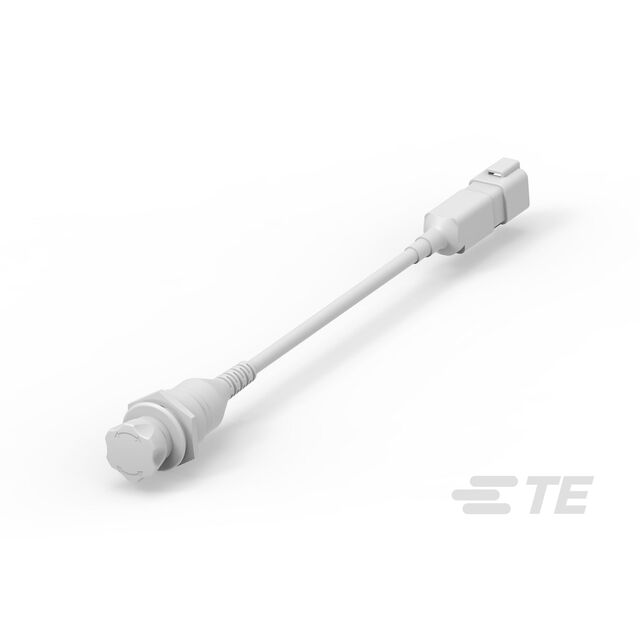

TE Connectivity AMP Connectors ES-2012-T311-020C			Twist	Off-On On-Off	85 °C	-40 C	30.5 mm	IP67/IP69K	Panel Mount Front	3PST-2NC/1NO	32 V	10 A
TE Connectivity AMP Connectors ES-2200-T311-020C			Twist	On-On	85 °C	-40 C	30.5 mm	IP67/IP69K	Panel Mount Front	3PDT	32 V	8 A

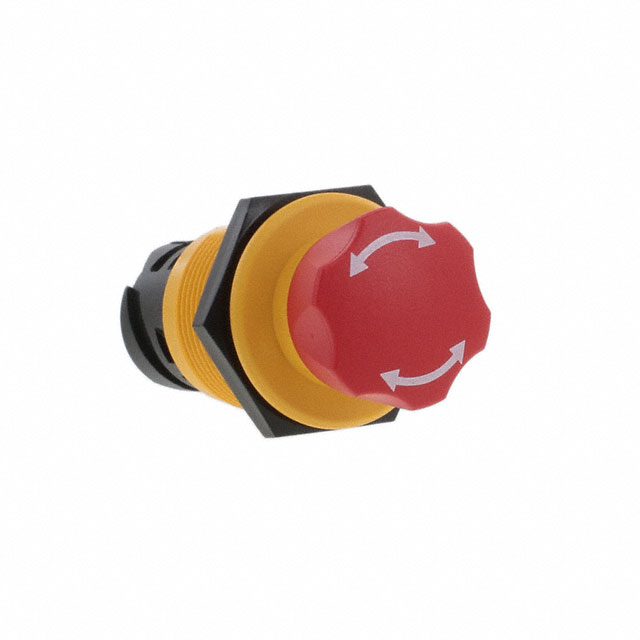

TE Connectivity AMP Connectors ES-2021-T111			Twist	Off-On On-Off	85 °C	-40 C	30.5 mm	IP67/IP69K	Panel Mount Front	3PST-2NO/1NC	32 V	10 A	Connector

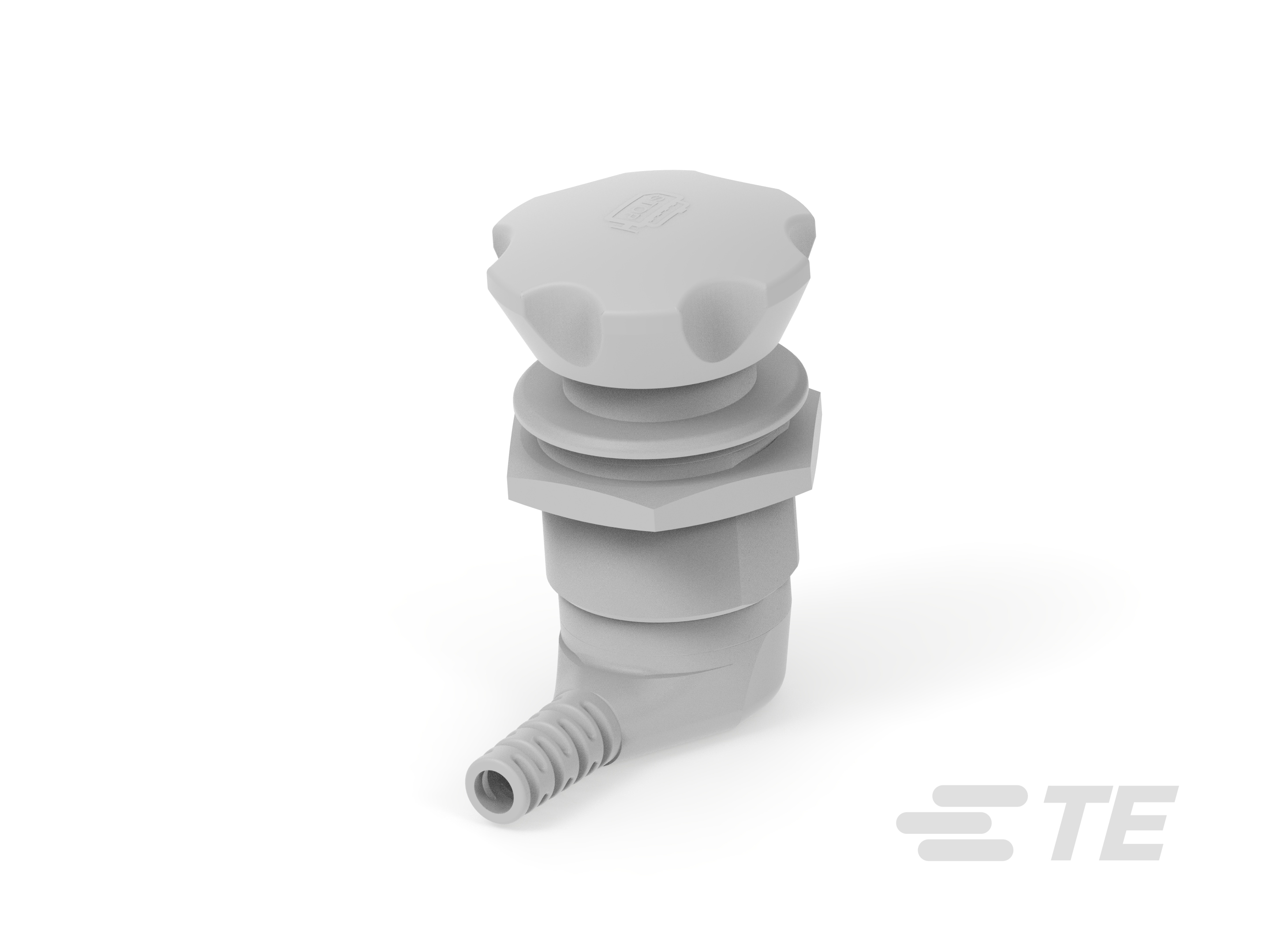

TE Connectivity AMP Connectors ES-2011-A412-020			Twist	Off-On On-Off	85 °C	-40 C	30.5 mm	IP67/IP69K	Panel Mount Front	DPST-NO/NC	32 V	10 A	Wire Leads

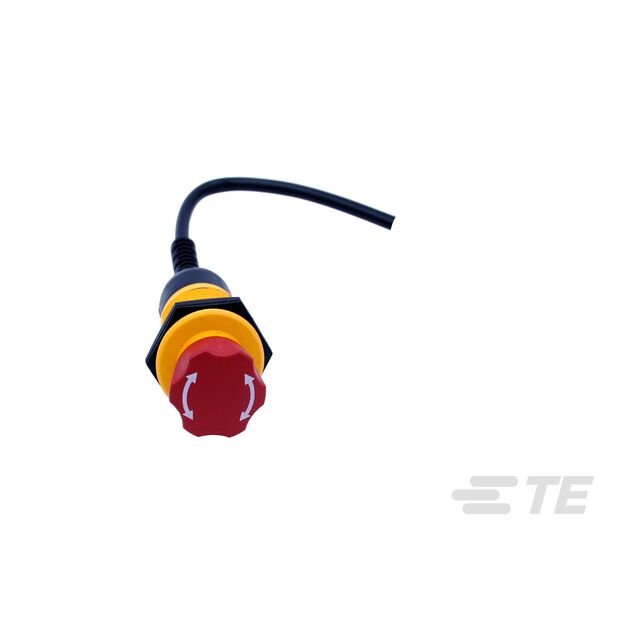

TE Connectivity AMP Connectors ES-2011-T311-018A			Twist	Off-On On-Off	85 °C	-40 C	30.5 mm	IP67/IP69K	Panel Mount Front	DPST-NO/NC	32 V	10 A

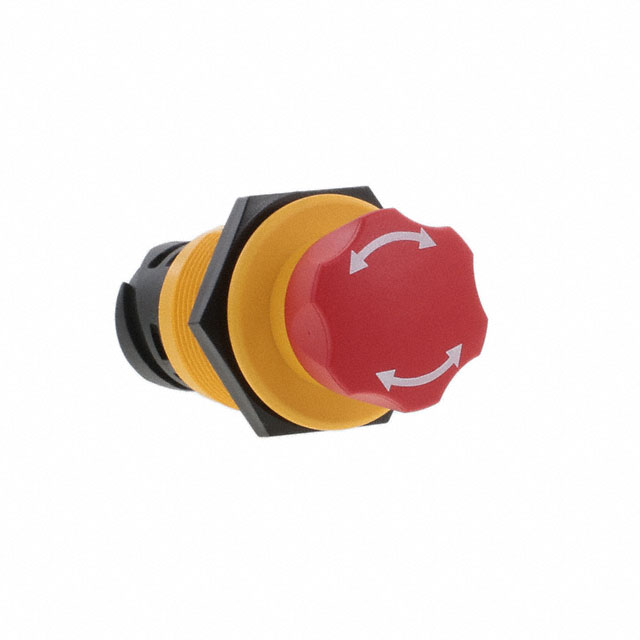

TE Connectivity AMP Connectors ES-2012-T111			Twist	Off-On On-Off	85 °C	-40 C	30.5 mm	IP67/IP69K	Panel Mount Front	3PST-2NC/1NO	32 V	10 A	Connector

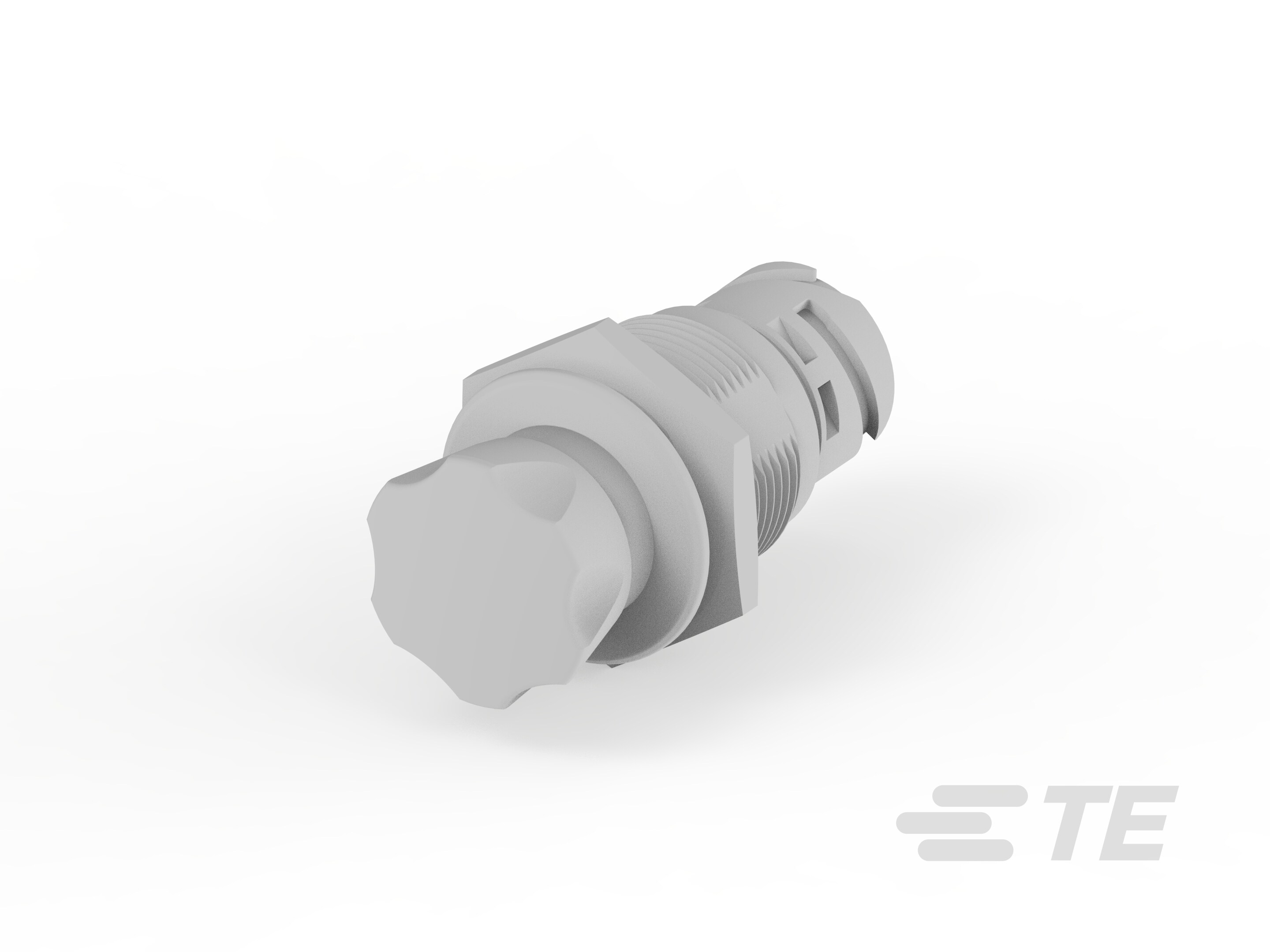

TE Connectivity AMP Connectors ES-2002-T121			Twist	On-On	85 °C	-40 C	30.5 mm	IP67/IP69K	Panel Mount Front	DPDT	32 V	10 A	Connector
