44AM1121 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

CABLE 2COND 18AWG WHITE SHLD

Part	Conductor Insulation	Shield Material	Operating Temperature	Voltage	Conductor Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Shield Type	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand	Conductor Strand [custom]	Length	Spool Size	Spool Size	Length [x]	Length [x]	Length	Length
TE Connectivity Aerospace, Defense and Marine 44AM1121-18-9/96-9	Polyvinylidene Fluoride (PVDF)	Copper Tinned	150 °C	600 V	Copper Tinned	Multi-Conductor	19	30 AWG	18 AWG	Braid	2	4.14 mm	0.163 in	85 %	Polyvinylidene Fluoride (PVDF)	0.127 mm	0.005 in
TE Connectivity Aerospace, Defense and Marine 44AM1121-26-6/9-9CS2275	Polyvinylidene Fluoride (PVDF)	Copper Tinned	150 °C	600 V	Copper Tinned	Multi-Conductor			26 AWG	Braid	2	2.57 mm	0.101 "	85 %	Polyvinylidene Fluoride (PVDF)	0.127 mm	0.005 in	19 38
TE Connectivity Aerospace, Defense and Marine 44AM1121-22-0/9-9CS356	Polyvinylidene Fluoride (PVDF)	Copper Tinned	150 °C	600 V	Copper Tinned	Multi-Conductor			22 AWG	Braid	2	3.23 mm	0.127 in	85 %	Polyvinylidene Fluoride (PVDF)	0.127 mm	0.005 in	34 AWG	19 Strands
TE Connectivity Aerospace, Defense and Marine 44AM1121-22-9/96-9	Polyvinylidene Fluoride (PVDF)	Copper Tinned	150 °C	600 V	Copper Tinned	Multi-Conductor			22 AWG	Braid	2	3.23 mm	0.127 in	85 %	Polyvinylidene Fluoride (PVDF)	0.127 mm	0.005 in	34 AWG	19 Strands	Enter Number of Feet in Order Quantity	609.6 m	2000 '
TE Connectivity Aerospace, Defense and Marine 44AM1121-12-0/9-9	Polyvinylidene Fluoride (PVDF)	Copper Silver Coated	150 °C	600 V	Copper Tinned	Multi-Conductor		28 AWG	12 AWG	Braid	2	6.38 mm	0.251 in	85 %	Polyvinylidene Fluoride (PVDF)	0.178 mm	0.007 in		37

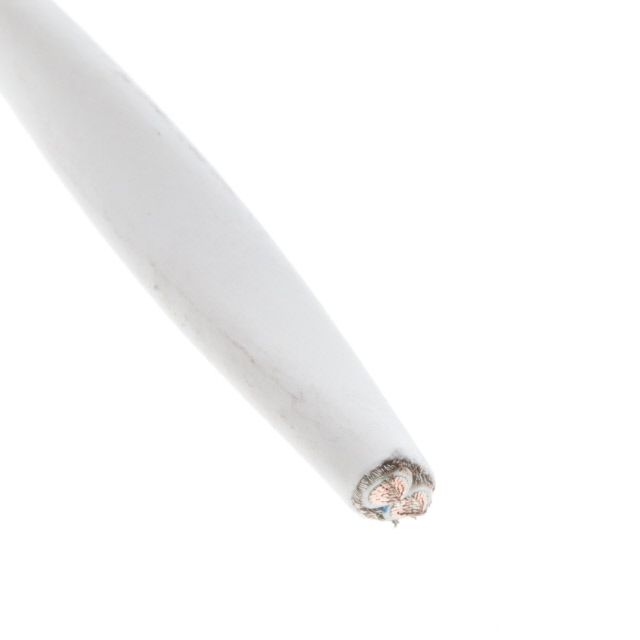

TE Connectivity Aerospace, Defense and Marine 44AM1121-12-9/96-9CS2275	Polyvinylidene Fluoride (PVDF)	Copper Silver Coated	150 °C	600 V	Copper Tinned	Multi-Conductor		28 AWG	12 AWG	Braid	2	6.38 mm	0.251 in	85 %	Polyvinylidene Fluoride (PVDF)	0.178 mm	0.007 in		37	Enter Number of Feet in Order Quantity	304.8 m	1000 ft	7.62 m 30.5 m 152.4 m	25 ft 50 ft 100 ft 500 '	1 ft 5 '	1.52 m 15.24 m 300 mm
TE Connectivity Aerospace, Defense and Marine 44AM1121-24-0/1-9CS356	Polyvinylidene Fluoride (PVDF)	Copper Tinned	150 °C	600 V	Copper Tinned	Multi-Conductor			24 AWG	Braid	2	2.87 mm	0.113 "	85 %	Polyvinylidene Fluoride (PVDF)	0.127 mm	0.005 in
TE Connectivity Aerospace, Defense and Marine 44AM1121-26-9/96-9CS2275	Polyvinylidene Fluoride (PVDF)	Copper Tinned	150 °C	600 V	Copper Tinned	Multi-Conductor			26 AWG	Braid	2	2.57 mm	0.101 "	85 %	Polyvinylidene Fluoride (PVDF)	0.127 mm	0.005 in	19 38
TE Connectivity Aerospace, Defense and Marine 44AM1121-20-0/9-9CS262	Polyvinylidene Fluoride (PVDF)	Copper Tinned	150 °C	600 V	Copper Tinned	Multi-Conductor	19	32 AWG	20 AWG	Braid	2	3.63 mm	0.143 in	85 %	Polyvinylidene Fluoride (PVDF)	0.127 mm	0.005 in
TE Connectivity Aerospace, Defense and Marine 44AM1121-22-6/9-9CS2275	Polyvinylidene Fluoride (PVDF)	Copper Tinned	150 °C	600 V	Copper Tinned	Multi-Conductor			22 AWG	Braid	2	3.23 mm	0.127 in	85 %	Polyvinylidene Fluoride (PVDF)	0.127 mm	0.005 in	34 AWG	19 Strands
