002217 Series

Manufacturer: Molex

Catalog

CONN RCPT 14POS 0.1 GOLD PCB

Part	Contact Material	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Applications	Contact Type	Contact Finish - Mating	Features	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions Loaded	Voltage Rating	Number of Positions	Style	Current Rating (Amps)	Number of Rows	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Mounting Type
Molex 0022173142	Brass	Nylon Polyamide (PA)	1.27 µm	50 µin	Square	Automotive General Purpose Medical Telecommunications	Cat Ear Female Non-Gendered	Gold	Board Hooks	Solder	80 °C	-40 C	Push-Pull	0.311 in	7.9 mm	0.1 "	2.54 mm	Receptacle Bottom Entry	All	250 VAC	14	Board to Board Cable	2.5 A	1	Tin	0.38 µm	15 µin	White	UL94 V-0	0.132 in	3.35 mm	Through Hole
Molex 0022172192	Brass	Nylon Polyamide (PA)	0.051 µm	2 µin	Square	Automotive General Purpose Medical Telecommunications	Cat Ear Female Non-Gendered	Gold	Board Hooks	Solder	80 °C	-40 C	Push-Pull	0.311 in	7.9 mm	0.1 "	2.54 mm	Receptacle Bottom Entry	All	250 VAC	19	Board to Board Cable	2.5 A	1	Gold	0.51 µm	20 µin	White	UL94 V-0	0.132 in	3.35 mm	Through Hole
Molex 0022172132	Brass	Nylon Polyamide (PA)	0.051 µm	2 µin	Square	Automotive General Purpose Medical Telecommunications	Cat Ear Female Non-Gendered	Gold	Board Hooks	Solder	80 °C	-40 C	Push-Pull	0.311 in	7.9 mm	0.1 "	2.54 mm	Receptacle Bottom Entry	All	250 VAC	13	Board to Board Cable	2.5 A	1	Gold	0.51 µm	20 µin	White	UL94 V-0	0.132 in	3.35 mm	Through Hole

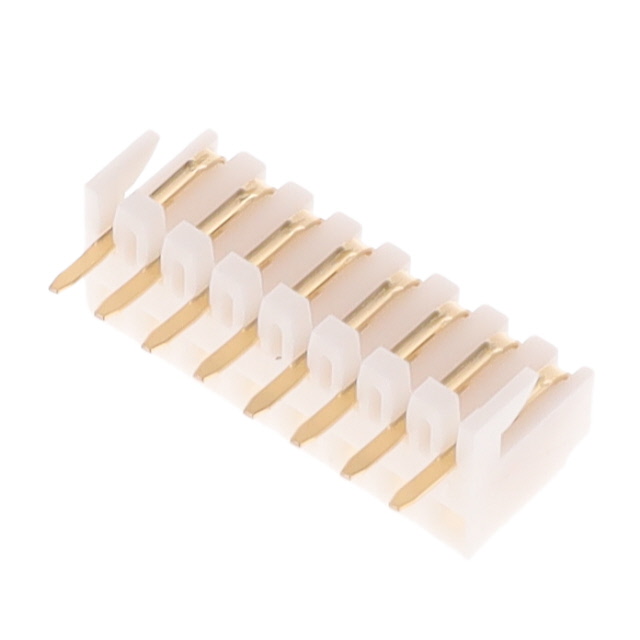

Molex 0022172082	Brass	Nylon Polyamide (PA)	0.051 µm	2 µin	Square	Automotive General Purpose Medical Telecommunications	Cat Ear Female Non-Gendered	Gold	Board Hooks	Solder	80 °C	-40 C	Push-Pull	0.311 in	7.9 mm	0.1 "	2.54 mm	Receptacle Bottom Entry	All	250 VAC	8	Board to Board Cable	2.5 A	1	Gold	0.51 µm	20 µin	White	UL94 V-0	0.132 in	3.35 mm	Through Hole
Molex 0022173087	Phosphor Bronze	Nylon Polyamide (PA)	2.54 µm	100 µin	Square	Automotive General Purpose Medical Telecommunications	Cat Ear Female Non-Gendered	Gold	Board Hooks	Solder	105 ░C	-40 C	Push-Pull	0.311 in	7.9 mm	0.1 "	2.54 mm	Receptacle Bottom Entry	All	250 VAC	8	Board to Board Cable	4 A	1	Tin	0.76 Ám	30 Áin	White	UL94 V-0			Through Hole
Molex 0022172144	Brass	Nylon Polyamide (PA)	2.54 µm	100 µin	Square	Automotive General Purpose Medical Telecommunications	Cat Ear Female Non-Gendered	Gold	Board Hooks	Solder	80 °C	-40 C	Push-Pull	0.311 in	7.9 mm	0.1 "	2.54 mm	Receptacle Bottom Entry	All	250 VAC	14	Board to Board Cable	2.5 A	1	Tin	0.76 Ám	30 Áin	White	UL94 V-0	0.132 in	3.35 mm	Through Hole

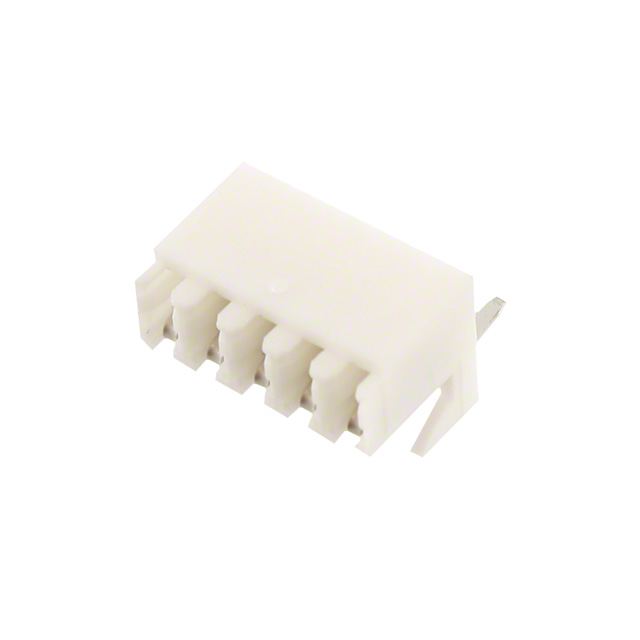

Molex 0022173052	Brass	Nylon Polyamide (PA)	1.27 µm	50 µin	Square	Automotive General Purpose Medical Telecommunications	Cat Ear Female Non-Gendered	Gold	Board Hooks	Solder	80 °C	-40 C	Push-Pull	0.311 in	7.9 mm	0.1 "	2.54 mm	Receptacle Bottom Entry	All	250 VAC	5	Board to Board Cable	2.5 A	1	Tin	0.38 µm	15 µin	White	UL94 V-0	0.132 in	3.35 mm	Through Hole
Molex 0022173196	Brass	Nylon Polyamide (PA)	2.54 µm	100 µin	Square	Automotive General Purpose Medical Telecommunications	Cat Ear Female Non-Gendered	Gold	Board Hooks	Solder	80 °C	-40 C	Push-Pull	0.311 in	7.9 mm	0.1 "	2.54 mm	Receptacle Bottom Entry	All	250 VAC	19	Board to Board Cable	2.5 A	1	Tin	0.76 Ám	30 Áin	White	UL94 V-0	0.132 in	3.35 mm	Through Hole

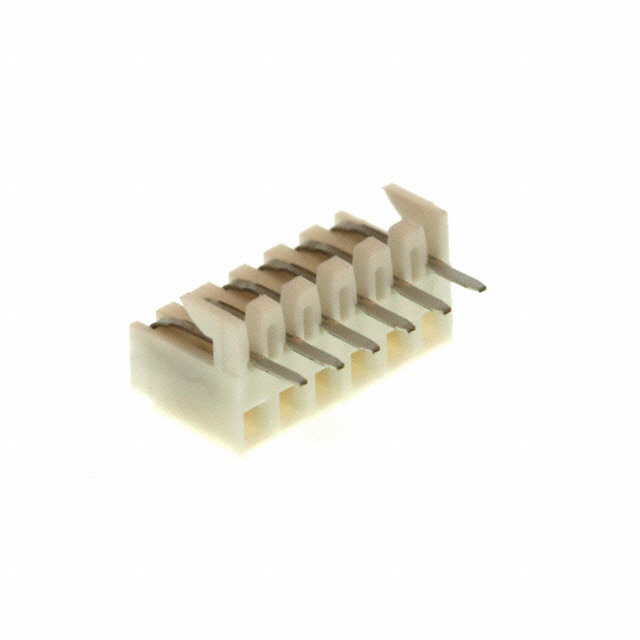

Molex 0022173062	Brass	Nylon Polyamide (PA)	1.27 µm	50 µin	Square	Automotive General Purpose Medical Telecommunications	Cat Ear Female Non-Gendered	Gold	Board Hooks	Solder	80 °C	-40 C	Push-Pull	0.311 in	7.9 mm	0.1 "	2.54 mm	Receptacle Bottom Entry	All	250 VAC	6	Board to Board Cable	2.5 A	1	Tin	0.38 µm	15 µin	White	UL94 V-0	0.132 in	3.35 mm	Through Hole
Molex 0022172094	Brass	Nylon Polyamide (PA)	2.54 µm	100 µin	Square	Automotive General Purpose Medical Telecommunications	Cat Ear Female Non-Gendered	Gold	Board Hooks	Solder	80 °C	-40 C	Push-Pull	0.311 in	7.9 mm	0.1 "	2.54 mm	Receptacle Bottom Entry	All	250 VAC	9	Board to Board Cable	2.5 A	1	Tin	0.76 Ám	30 Áin	White	UL94 V-0	0.132 in	3.35 mm	Through Hole
