GD VJLPL1.14 Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

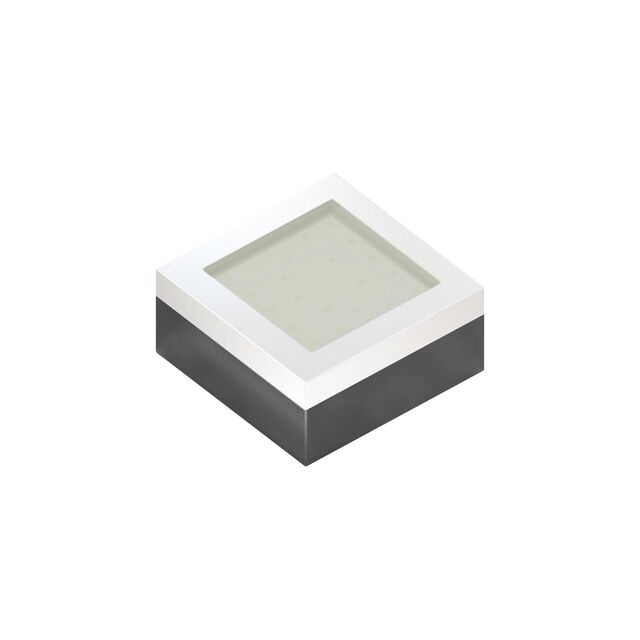

LED OSLON PURE 1414 BLUE 453NM
| Part | Thermal Resistance of Package | Color | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Temperature - Test | Viewing Angle | Mounting Type | Wavelength [Max] | Wavelength [Min] | Wavelength | Luminous Flux @ Current/Temperature | Package / Case | Package / Case | Voltage - Forward (Vf) (Typ) | Current - Max [Max] | Current - Test | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | 3.5 °C/W | Blue | 0.055 " | 1.4 mm | 0.055 in | 1.4 mm | 25 °C | 120 ° | Surface Mount | 457 nm | 449 nm | 453 nm | 660 mW | 1313 | 0505 | 2.93 V | 1 A | 350 mA | 0.95 mm | 0.037 in |
