P16OAR1 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSHBUTTON SPDT 8A 125V

Part	Electrical Life	Mechanical Life	Current Rating (Amps)	Voltage Rating - DC	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Termination Style	Actuator Type	Illumination Voltage (Nominal)	Circuit	Color - Actuator/Cap	Actuator Marking	Mounting Type	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage Rating - AC
E-Switch P16OAR1HREDRED	50000 Cycles	100000 Cycles	6 A 8 A	24 V	LED Red	16 mm	Quick Connect - 0.110" (2.8mm)	Button Mushroom Round	6 VDC	SPDT	Red	No Marking	Panel Mount Front	On-Mom	55 °C	-20 ░C	Illuminated Standard	125 V
E-Switch P16OAR1CRED	50000 Cycles	100000 Cycles	6 A 8 A	24 V	Incandescent Red	16 mm	Quick Connect - 0.110" (2.8mm)	Button Mushroom Round	28 VAC/DC	SPDT	Red	No Marking	Panel Mount Front	On-Mom	55 °C	-20 ░C	Illuminated Standard	125 V
E-Switch P16OAR1KREDRED	50000 Cycles	100000 Cycles	6 A 8 A	24 V	LED Red	16 mm	Quick Connect - 0.110" (2.8mm)	Button Mushroom Round	24 V	SPDT	Red	No Marking	Panel Mount Front	On-Mom	55 °C	-20 ░C	Illuminated Standard	125 V

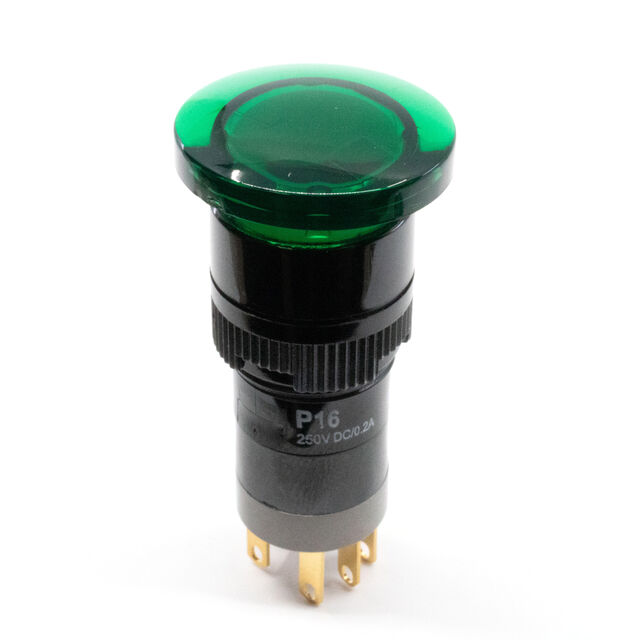

E-Switch P16OAR1KGRNGRN	50000 Cycles	100000 Cycles	6 A 8 A	24 V	Green LED	16 mm	Quick Connect - 0.110" (2.8mm)	Button Mushroom Round	24 V	SPDT	Green	No Marking	Panel Mount Front	On-Mom	55 °C	-20 ░C	Illuminated Standard	125 V
E-Switch P16OAR1JREDRED	50000 Cycles	100000 Cycles	6 A 8 A	24 V	LED Red	16 mm	Quick Connect - 0.110" (2.8mm)	Button Mushroom Round	12 VDC	SPDT	Red	No Marking	Panel Mount Front	On-Mom	55 °C	-20 ░C	Illuminated Standard	125 V
