3103-3 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PC PIN CIRC .040DIA GOLD

Part	Termination	Terminal Type	Length - Overall	Length - Overall	Length - Above Flange	Length - Above Flange	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Type	Terminal Style	Board Thickness [custom]	Board Thickness [custom]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange	Contact Material	Length - Below Flange [x]	Length - Below Flange [x]	Contact Finish	Insulation
Mill-Max Manufacturing Corp. 3103-3-00-21-00-00-08-0	Swage	PC Pin	0.433 in	11 mm	0.3 in	7.62 mm	0.043 in	1.09 mm	Through Hole	Single End	0.094 in	2.39 mm	20 µin	0.51 µm	1.77 mm	0.07 in	0.04 in	1.02 mm	Brass Alloy	2.87 mm	0.113 "	Gold	Non-Insulated

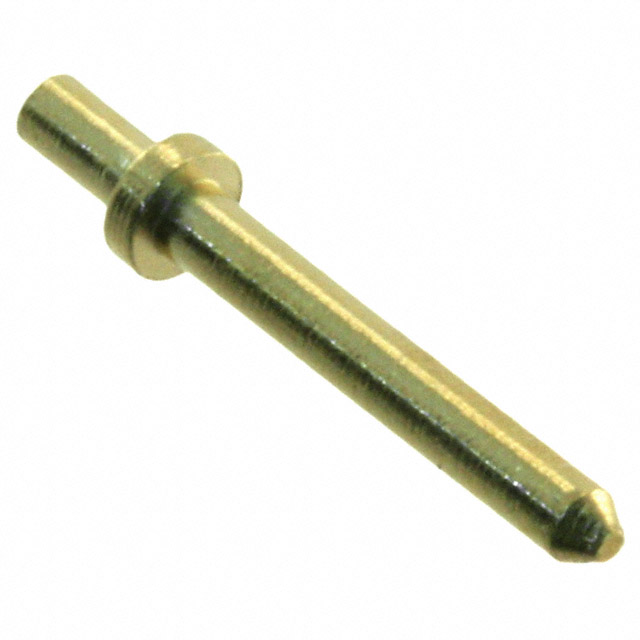

Mill-Max Manufacturing Corp. 3103-3-00-15-00-00-08-0	Swage	PC Pin	0.433 in	11 mm	0.3 in	7.62 mm	0.043 in	1.09 mm	Through Hole	Single End	0.094 in	2.39 mm	10 Áin	0.25 Ám	1.77 mm	0.07 in	0.04 in	1.02 mm	Brass Alloy	2.87 mm	0.113 "	Gold	Non-Insulated

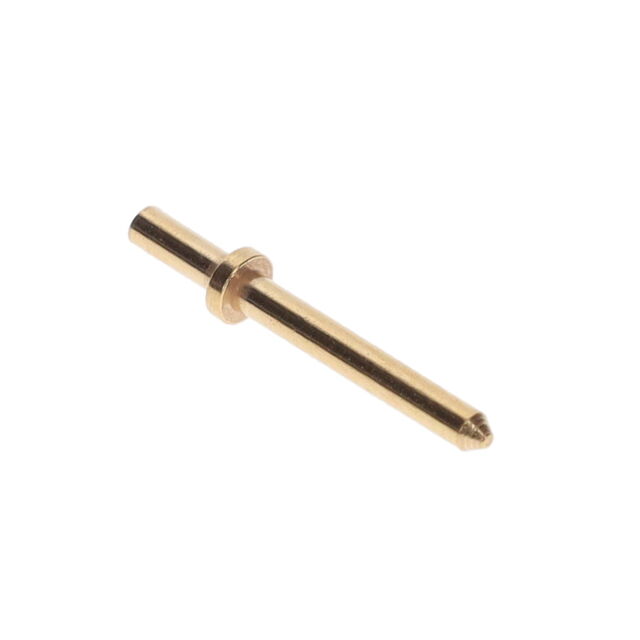

Mill-Max Manufacturing Corp. 3103-3-00-34-00-00-08-0	Swage	PC Pin	0.433 in	11 mm	0.3 in	7.62 mm	0.043 in	1.09 mm	Through Hole	Single End	0.094 in	2.39 mm	50 µin	1.27 µm	1.77 mm	0.07 in	0.04 in	1.02 mm	Brass Alloy	2.87 mm	0.113 "	Gold	Non-Insulated

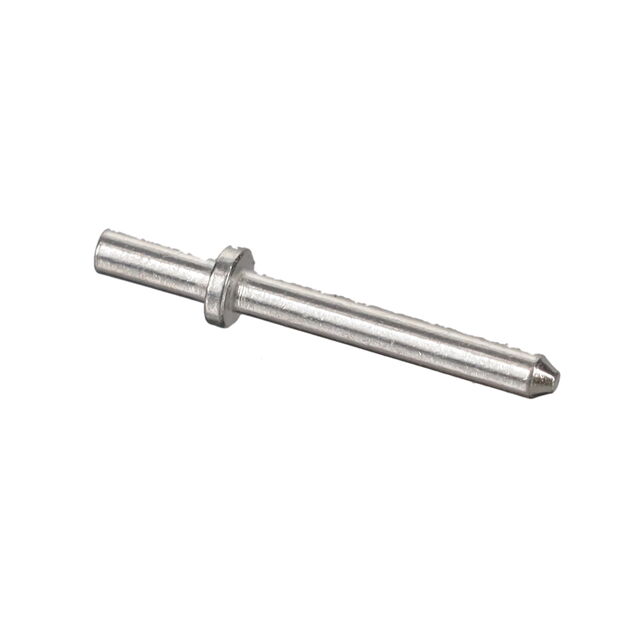

Mill-Max Manufacturing Corp. 3103-3-00-80-00-00-08-0	Swage	PC Pin	0.433 in	11 mm	0.3 in	7.62 mm	0.043 in	1.09 mm	Through Hole	Single End	0.094 in	2.39 mm	200 Áin	5.08 Ám	1.78 mm	0.07 in	0.04 in	1.02 mm	Brass Alloy	2.87 mm	0.113 "	Tin	Non-Insulated
Mill-Max Manufacturing Corp. 3103-3-00-01-00-00-08-0	Swage	PC Pin	0.433 in	11 mm	0.3 in	7.62 mm	0.043 in	1.09 mm	Through Hole	Single End	0.094 in	2.39 mm	200 Áin	5.08 Ám	1.77 mm	0.07 in	0.04 in	1.02 mm	Brass Alloy	2.87 mm	0.113 "	Tin-Lead	Non-Insulated
