NBSG11 Series

Catalog

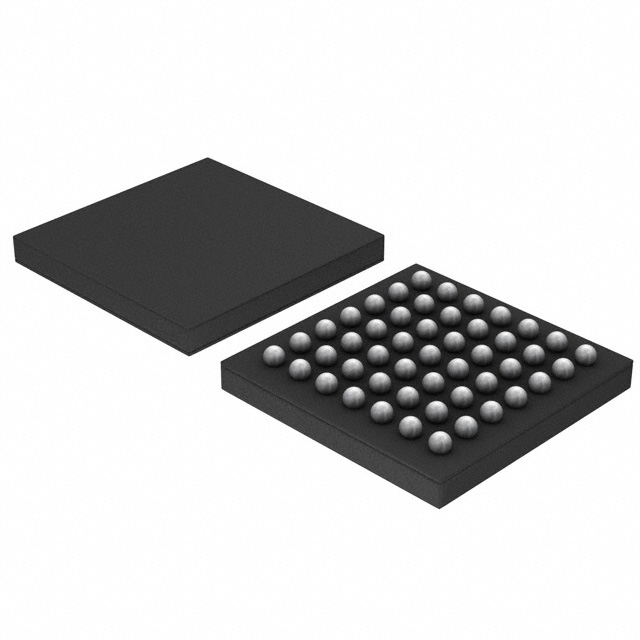

IC CLK BUFFER 2:10 6GHZ 49FCBGA

Part	Frequency - Max [Max]	Output	Operating Temperature [Min]	Operating Temperature [Max]	Ratio - Input:Output [custom]	Ratio - Input:Output [custom]	Number of Circuits	Supplier Device Package	Mounting Type	Package / Case	Input	Voltage - Supply [Min]	Voltage - Supply [Max]	Ratio - Input:Output [custom]	Type
ON Semiconductor NBSG111BAHTBG	6000 MHz	RSECL RSNECL RSPECL	-40 °C	70 °C	10	2	1	49-FCBGA (8x8)	Surface Mount	49-LFBGA FCBGA	CML ECL LVCMOS LVDS LVTTL NECL PECL	2.375 V	3.465 V
ON Semiconductor NBSG11MNR2	12 GHz	RSECL RSNECL RSPECL	-40 °C	85 °C			1	16-QFN (3x3)	Surface Mount	16-VFQFN Exposed Pad	CML LVCMOS LVDS LVTTL NECL PECL RSNECL	2.375 V	3.465 V	1:2	Fanout Buffer (Distribution)
ON Semiconductor NBSG11BAR2	12 GHz	RSECL RSNECL RSPECL	-40 °C	70 °C			1	16-FCBGA (4x4)	Surface Mount	16-LBGA FCBGA	CML LVCMOS LVDS LVTTL NECL PECL RSNECL	2.375 V	3.465 V	1:2	Fanout Buffer (Distribution)
ON Semiconductor NBSG11MN	12 GHz	RSECL RSNECL RSPECL	-40 °C	85 °C			1	16-QFN (3x3)	Surface Mount	16-VFQFN Exposed Pad	CML LVCMOS LVDS LVTTL NECL PECL RSNECL	2.375 V	3.465 V	1:2	Fanout Buffer (Distribution)
