LHB-06 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 6POS 3.96MM

Part	Insulation Material	Number of Rows	Contact Type	Insulation Color	Number of Positions Loaded	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Material	Shrouding	Material Flammability Rating	Termination	Contact Length - Post [x]	Contact Length - Post	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Voltage Rating	Contact Finish - Post	Current Rating (Amps)	Contact Shape	Number of Positions	Pitch - Mating	Pitch - Mating	Style	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height	Insulation Height [z]	Contact Length - Post

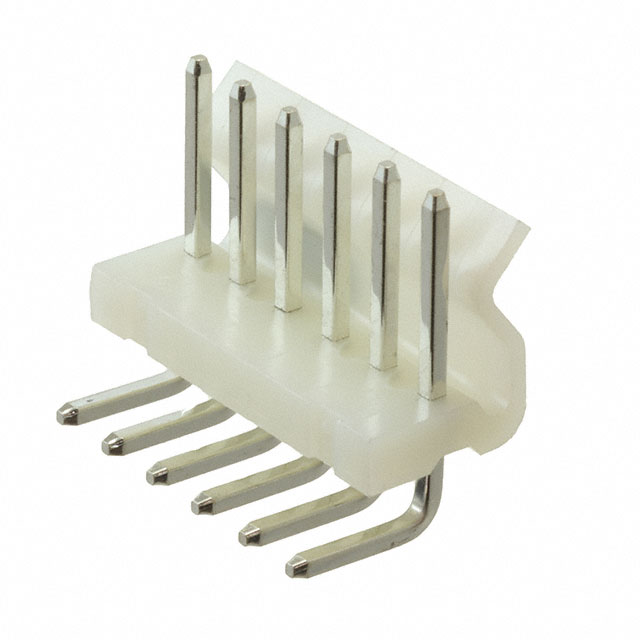

Adam Tech LHB-06-SB1	Nylon 6/6 Polyamide (PA66)	1	Male Pin	White	All	Right Angle Through Hole	11.3 mm	0.445 in	Brass	Shrouded - 1 Wall	UL94 V-2	Solder	0.134 "	3.4 mm	Header	85 °C	-25 °C	Friction Lock	250 VAC	Tin	5 A	Square	6	3.96 mm	0.156 in	Board to Cable/Wire

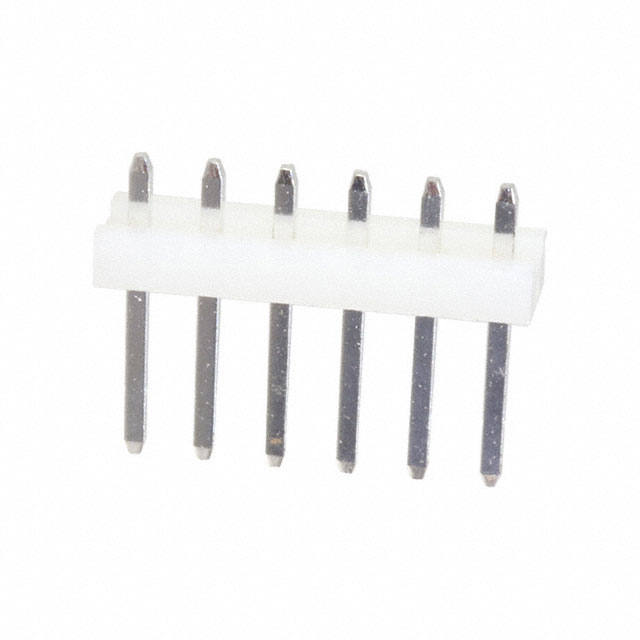

Adam Tech LHB-06-SA2	Nylon 6/6 Polyamide (PA66)	1	Male Pin	White	All	Through Hole	10.5 mm	0.413 in	Brass	Unshrouded	UL94 V-2	Solder	0.15 in		Header	105 ░C	-25 °C	Push-Pull	250 VAC	Tin	7 A	Square	6	3.96 mm	0.156 in		3.81 mm	17.5 mm	0.689 in	0.126 "	3.2 mm

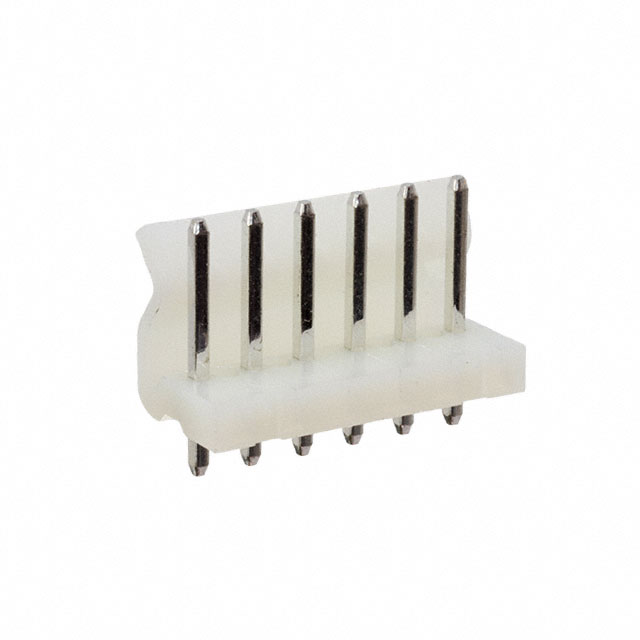

Adam Tech LHB-06-SA1	Nylon 6/6 Polyamide (PA66)	1	Male Pin	White	All	Through Hole	1.04 mm	0.041 in	Brass	Shrouded - 1 Wall	UL94 V-2	Solder		3.68 mm	Header	85 °C	-25 °C	Friction Lock	250 VAC	Tin	5 A	Square	6	3.96 mm	0.156 in	Board to Cable/Wire		0.69 in	17.53 mm	0.504 "		12.8 mm	0.145 in
