202-0038 Series
Manufacturer: Schmartboard, Inc.
Beta
⌘K

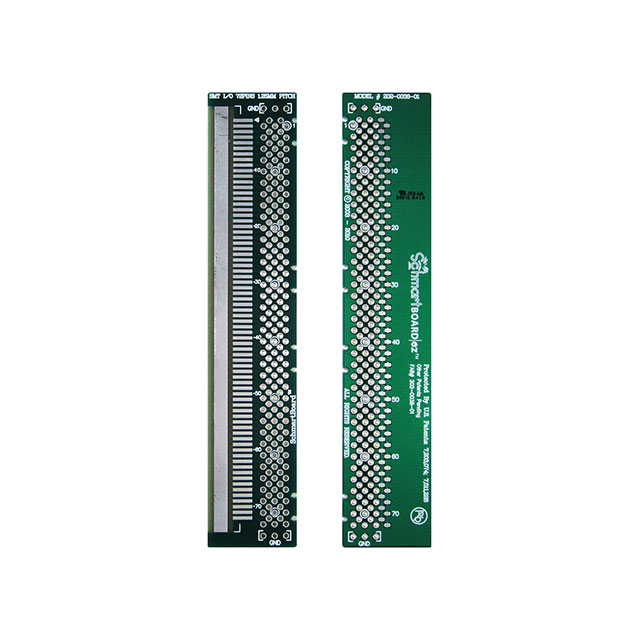

1.25MM PITCH MICROCONNECTOR ADAPTER WITH SCHMARTBOARD, EZ TECHNOLOGY
| Part | Pitch | Pitch | Pitch | Proto Board Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Plating | Circuit Pattern | Hole Diameter [diameter] | Hole Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Schmartboard, Inc. | Grid | 0.049 in | 1.25 mm | Breadboard General Purpose | 0.79 in | 20.2 mm | 101.4 mm | 3.99 " | Non-Plated Through Hole (NPTH) | Custom | 0.97 mm | 0.038 in |
