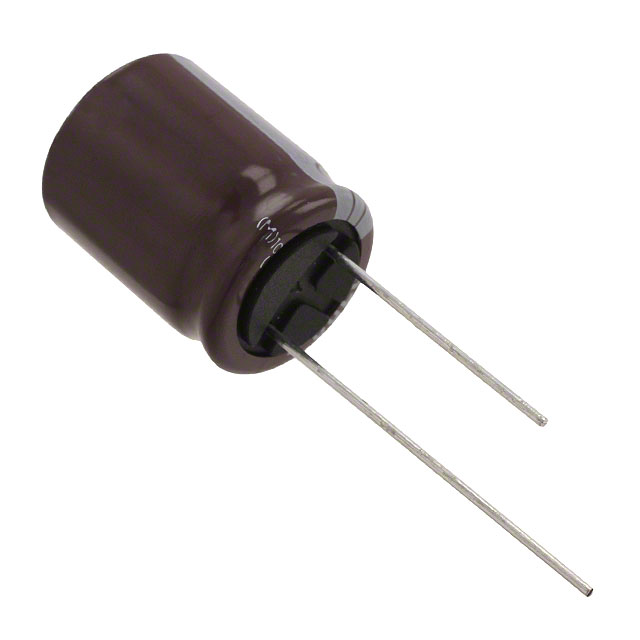

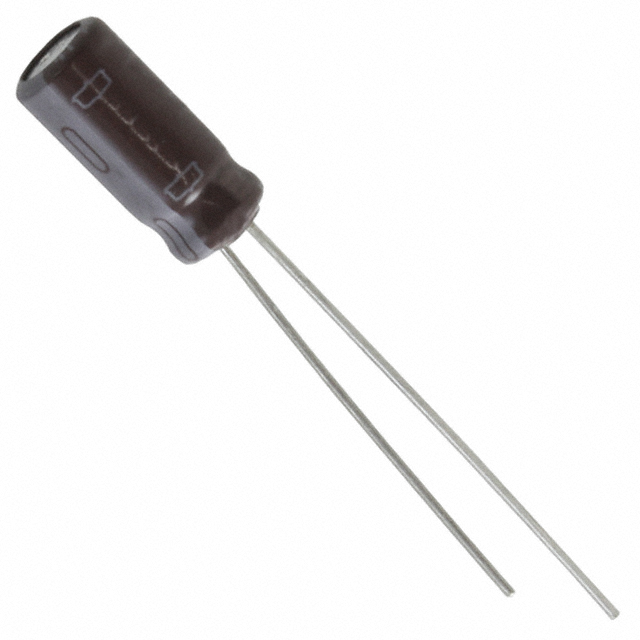

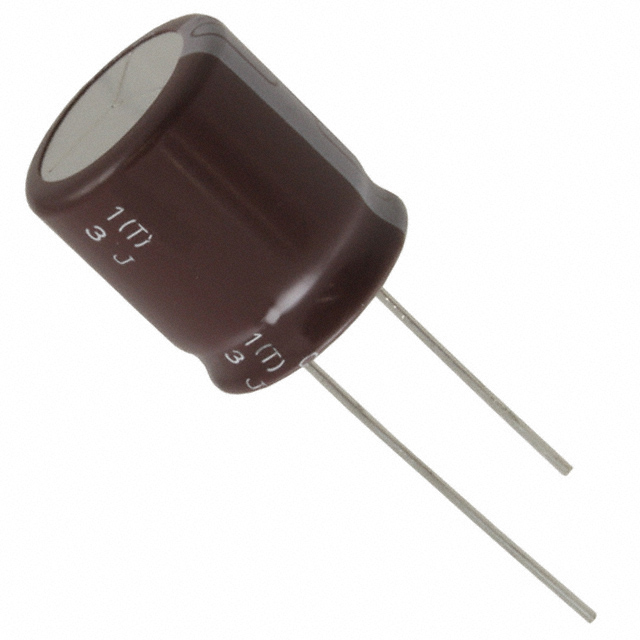

EKZE6R3E Series

Manufacturer: Chemi-Con

Catalog

CAP ALUM 1200UF 20% 6.3V RADIAL

Part	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Polarization	Ripple Current @ Low Frequency	Voltage - Rated	Tolerance	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Chemi-Con EKZE6R3ELL122MJ16S	1.2 mF	0.394 in	10 mm	17.5 mm	0.689 in	1.43 A	Polar	858 mA	6.3 VDC	20 %	0.197 "	5 mm	4000 Hrs	Through Hole	Can Radial	-40 C	105 ░C	General Purpose	38 mOhms
Chemi-Con EKZE6R3ETD331MF11D	330 µF	0.248 "	6.3 mm			405 mA	Polar	202.5 mA	6.3 VDC	20 %	0.098 in	2.5 mm	2000 Hrs	Through Hole	Can Radial	-40 C	105 ░C	General Purpose	130 mOhms	0.492 in	12.5 mm
Chemi-Con EKZE6R3ELL562ML20S	5.6 mF	0.63 in	16 mm			3.14 A	Polar	2.669 A	6.3 VDC	20 %	0.295 in	7.5 mm	5000 Hrs	Through Hole	Can Radial	-40 C	105 ░C	General Purpose	18 mOhms	21.5 mm		0.846 "
Chemi-Con EKZE6R3ELL392MK25S	3900 µF	0.492 in	12.5 mm		26.5 mm	2.77 A	Polar	2.0775 A	6.3 VDC	20 %	0.197 "	5 mm	5000 Hrs	Through Hole	Can Radial	-40 C	105 ░C	General Purpose	18 mOhms				1.043 in
Chemi-Con EKZE6R3ETD222MJ25S	2200 µF	0.394 in	10 mm		26.5 mm	2.15 A	Polar	1.6125 A	6.3 VDC	20 %	0.197 "	5 mm	4000 Hrs	Through Hole	Can Radial	-40 C	105 ░C	General Purpose	22 mOhms				1.043 in
Chemi-Con EKZE6R3ETD332MK20S	3.3 mF	0.492 in	12.5 mm			2.36 A	Polar	1.77 A	6.3 VDC	20 %	0.197 "	5 mm	5000 Hrs	Through Hole	Can Radial	-40 C	105 ░C	General Purpose	21 mOhms	21.5 mm		0.846 "
Chemi-Con EKZE6R3EMC152MJ20S	1.5 mF	0.394 in	10 mm			1.82 A	Polar	1.092 A	6.3 VDC	20 %	0.197 "	5 mm	4000 Hrs	Through Hole	Can Radial	-40 C	105 ░C	General Purpose	23 mOhms	21.5 mm		0.846 "
Chemi-Con EKZE6R3ETD122MJ16S	1.2 mF	0.394 in	10 mm	17.5 mm	0.689 in	1.43 A	Polar	858 mA	6.3 VDC	20 %	0.197 "	5 mm	4000 Hrs	Through Hole	Can Radial	-40 C	105 ░C	General Purpose	38 mOhms
Chemi-Con EKZE6R3ELL472MK30S	4700 µF	0.492 in	12.5 mm			3.29 A	Polar	2.7965 A	6.3 VDC	20 %	0.197 "	5 mm	5000 Hrs	Through Hole	Can Radial	-40 C	105 ░C	General Purpose	16 mOhms	31.5 mm		1.24 in
Chemi-Con EKZE6R3ETD152MJ20S	1.5 mF	0.394 in	10 mm			1.82 A	Polar	1.092 A	6.3 VDC	20 %	0.197 "	5 mm	4000 Hrs	Through Hole	Can Radial	-40 C	105 ░C	General Purpose	23 mOhms	21.5 mm		0.846 "
