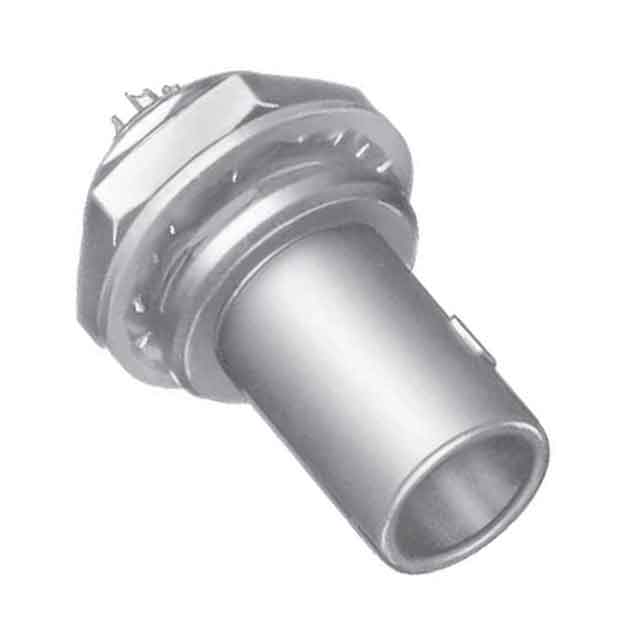

FAG.1B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 3P GOLD SLDR CUP

Part	Mounting Type	Orientation [custom]	Color	Shielding	Shell Finish	Contact Finish - Mating	Current Rating (Amps)	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Shell Size - Insert	Ingress Protection	Shell Material	Primary Material	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Contact Material	Material Flammability Rating	Mounting Feature	Shell Size - Insert [custom]	Number of Positions	Termination
LEMO FAG.1B.303.CLA	Panel Mount	G	Silver	Shielded	Chrome	Gold	12 Amps	39.4 µin	1 µm	303	IP50 - Dust Protected	Brass	Metal	Plug Male Pins	Push-Pull	-55 C	250 °C	Polyetheretherketone (PEEK)	Brass	UL94 V-0	Bulkhead - Rear Side Nut
LEMO FAG.1B.316.CLA	Panel Mount	G	Silver	Shielded	Chrome	Gold	1.5 A	39.4 µin	1 µm		IP50 - Dust Protected	Brass	Metal	Plug Male Pins	Push-Pull	-55 C	250 °C	Polyetheretherketone (PEEK)	Brass	UL94 V-0	Bulkhead - Rear Side Nut	316	16

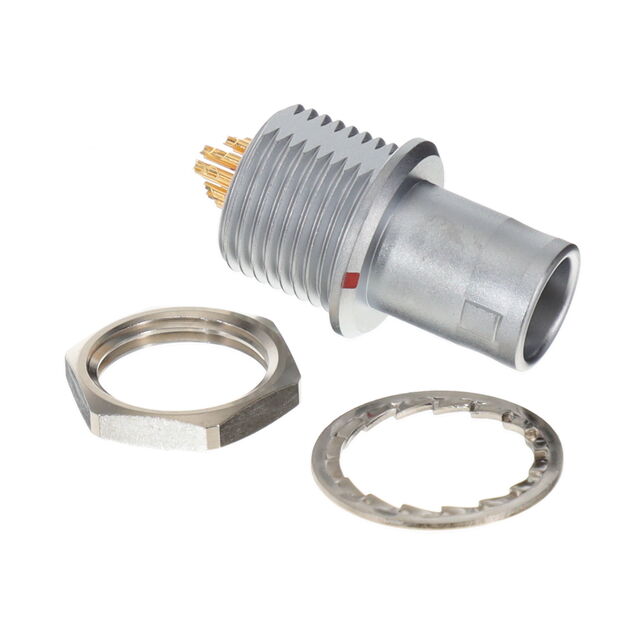

LEMO FAG.1B.314.CLA	Panel Mount	G	Silver	Shielded	Chrome	Gold	2 A	39.4 µin	1 µm	314	IP50 - Dust Protected	Brass	Metal	Plug Male Pins	Push-Pull	-55 C	250 °C	Polyetheretherketone (PEEK)	Brass	UL94 V-0	Bulkhead - Rear Side Nut		14

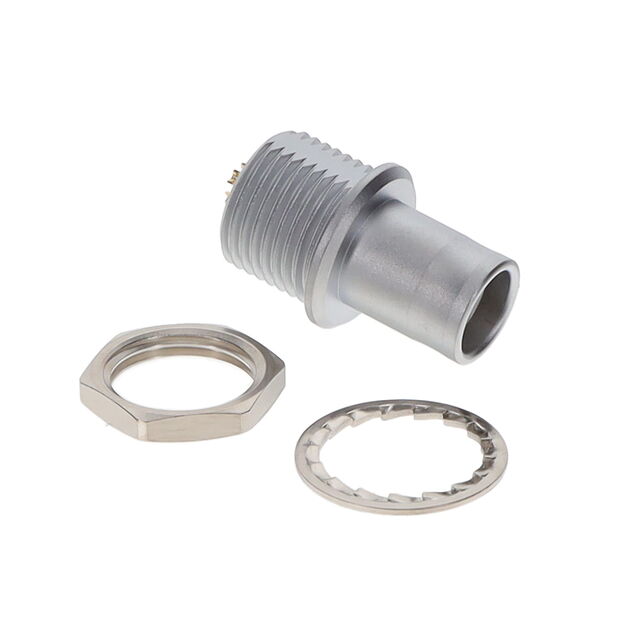

LEMO FAG.1B.305.CLA	Panel Mount	G	Silver	Shielded	Chrome	Gold	9 A	39.4 µin	1 µm	305	IP50 - Dust Protected	Brass	Metal	Plug Male Pins	Push-Pull	-55 C	250 °C	Polyetheretherketone (PEEK)	Brass	UL94 V-0	Bulkhead - Rear Side Nut		5
LEMO FAG.1B.310.CLD	Panel Mount Through Hole	G	Silver	Shielded	Chrome	Gold	2.5 A	39.4 µin	1 µm	310	IP50 - Dust Protected	Brass	Metal	Plug Male Pins	Push-Pull	-55 C	250 °C	Polyetheretherketone (PEEK)	Brass	UL94 V-0	Bulkhead - Rear Side Nut		10	Solder
