FLTWC0311 Series

Catalog

HOOK-UP STRND 18AWG 600V Y/B

Part	Conductor Material	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Wire Gauge	Cable Type	Jacket (Insulation) Material	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]	Operating Temperature	Conductor Strand [custom]	Conductor Strand	Length	Length
TE Connectivity Aerospace, Defense and Marine FLTWC0311-18-46	Copper Tinned	600 V	0.006 in	0.15 mm	135 °C	-65 ░C	19	30 AWG	UL Style 10208	18 AWG	Hook-Up	Polyester	Yellow Blue Stripe	0.065 in	1.65 mm

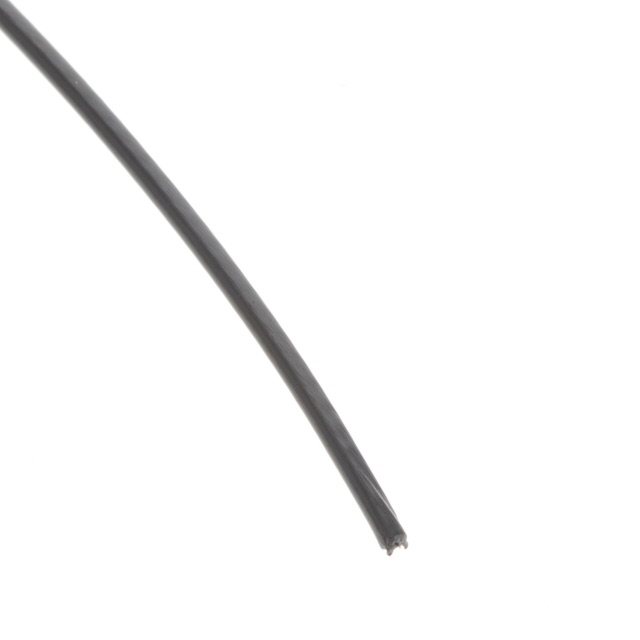

TE Connectivity Aerospace, Defense and Marine FLTWC0311-22-0	Copper Tinned	600 V	0.006 in	0.15 mm					UL Style 10208	22 AWG	Hook-Up	Polyester	Black	0.047 in	1.19 mm	7.62 m 30.5 m 152.4 m	25 ft 100 ft 500 '	135 °C	19 Strands	34 AWG
TE Connectivity Aerospace, Defense and Marine FLTWC0311-22-0-L150	Copper Tinned	600 V	0.006 in	0.15 mm	135 °C	-65 ░C			UL Style 10208	18 AWG	Hook-Up	Polyester	Black	0.047 in	1.19 mm				19 Strands	34 AWG

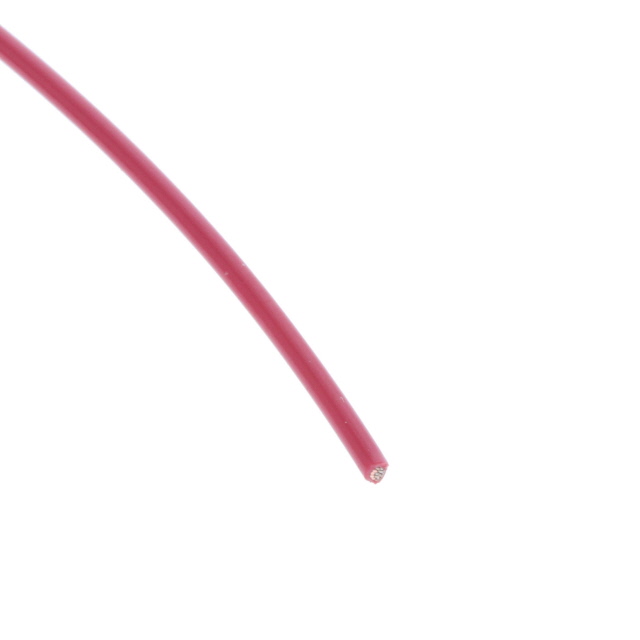

TE Connectivity Aerospace, Defense and Marine FLTWC0311-22-2	Copper Tinned	600 V	0.005 in	0.13 mm					UL Style 10208	22 AWG	Hook-Up	Polyester	Red	0.047 in	1.19 mm	7.62 m 152.4 m	25 ft 50 ft 500 '	135 °C	19 Strands	34 AWG	1.52 m 15.24 m 300 mm	1 ft 5 '
TE Connectivity Aerospace, Defense and Marine FLTWC0311-18-64	Copper Tinned	600 V	0.006 in	0.15 mm	135 °C	-65 ░C	19	30 AWG	UL Style 10208	18 AWG	Hook-Up	Polyester	Blue Yellow Stripe	0.065 in	1.65 mm
