320E11 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACT SPST-NO 0.025A 50V
| Part | Mechanical Life | Switch Travel | Actuator Material | Illumination | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Actuator Type | Contact Rating @ Voltage | Circuit | Features | Actuator Orientation | Termination Style | Switch Function | Outline [x] | Outline [y] | Actuator Height off PCB, Vertical [z] | Operating Force |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 1000000 Cycles | 0.6 mm | Polycarbonate (PC) | Non-Illuminated | -20 ░C | 70 °C | Through Hole | Square Button | 0.025 A | SPST-NO | Blue Cap | Top Actuated | PC Pin | Off-Mom | 12.4 mm | 12.4 mm | 9.95 mm | 135 gf |

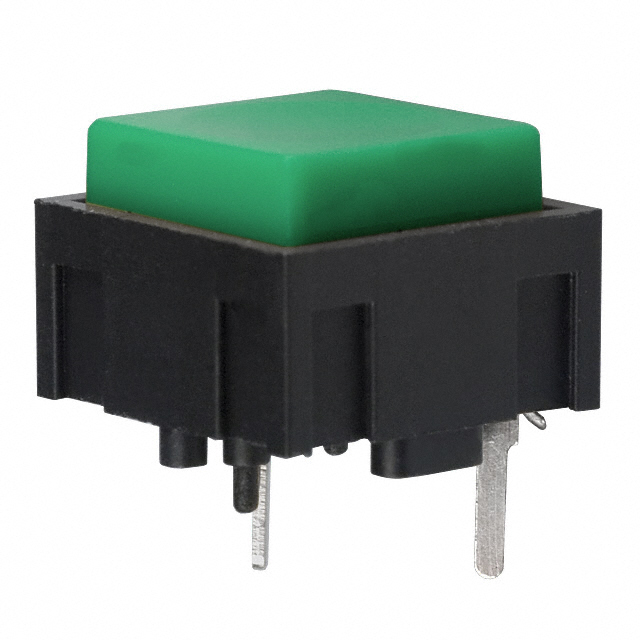

 E-Switch | 1000000 Cycles | 0.6 mm | Polycarbonate (PC) | Non-Illuminated | -20 ░C | 70 °C | Through Hole | Square Button | 0.025 A | SPST-NO | Green Cap | Top Actuated | PC Pin | Off-Mom | 12.4 mm | 12.4 mm | 9.95 mm | 135 gf |

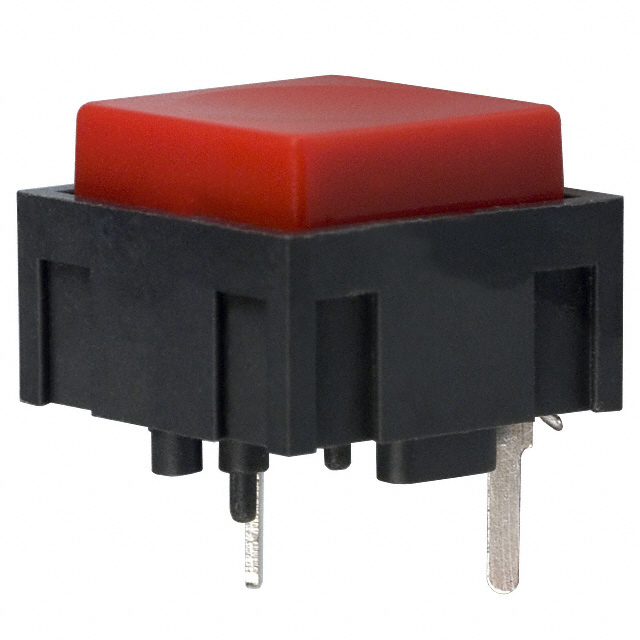

 E-Switch | 1000000 Cycles | 0.6 mm | Polycarbonate (PC) | Non-Illuminated | -20 ░C | 70 °C | Through Hole | Square Button | 0.025 A | SPST-NO | Red Cap | Top Actuated | PC Pin | Off-Mom | 12.4 mm | 12.4 mm | 9.95 mm | 135 gf |

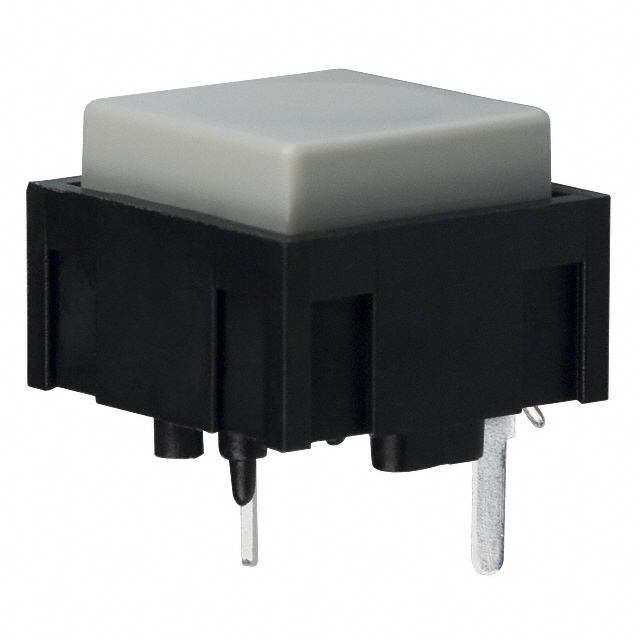

 E-Switch | 1000000 Cycles | 0.6 mm | Polycarbonate (PC) | Non-Illuminated | -20 ░C | 70 °C | Through Hole | Square Button | 0.025 A | SPST-NO | Gray Cap | Top Actuated | PC Pin | Off-Mom | 12.4 mm | 12.4 mm | 9.95 mm | 135 gf |
