8866-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Tail Diameter [diameter]	Tail Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Finish	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 8866-0-15-01-43-27-04-0	-55 C	125 °C	Beryllium Copper	0.51 mm	0.02 in	23.88 mm	0.94 in	Standard Tail	0.02 in	0.38 mm	0.015 "	0.51 mm	1.45 mm	0.057 in	30 Áin	0.76 Ám	Press-Fit	Gold
Mill-Max Manufacturing Corp. 8866-0-15-80-43-14-04-0	-55 C	125 °C	Beryllium Copper	0.51 mm	0.02 in	23.88 mm	0.94 in	Standard Tail	0.025 in	0.38 mm	0.015 "		1.45 mm	0.057 in	10 Áin	0.25 Ám	Press-Fit	Gold	0.64 mm

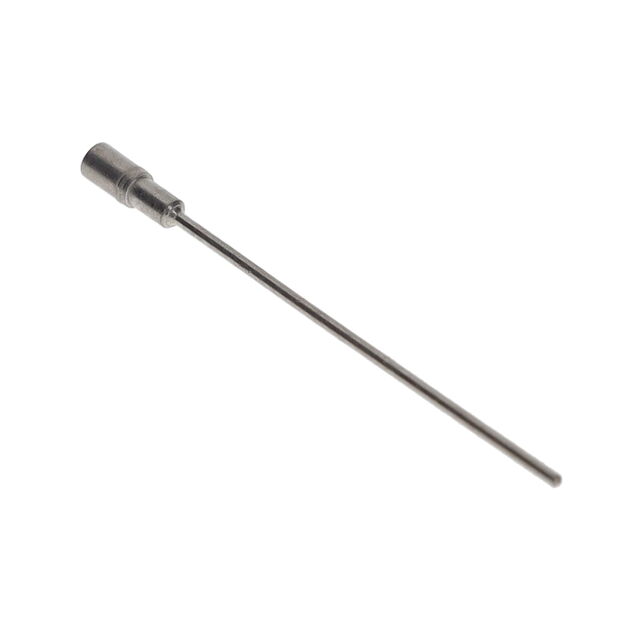

Mill-Max Manufacturing Corp. 8866-0-15-80-43-27-04-0	-55 C	125 °C	Beryllium Copper	0.51 mm	0.02 in	23.88 mm	0.94 in	Standard Tail	0.025 in	0.38 mm	0.015 "		1.45 mm	0.057 in	30 Áin	0.76 Ám	Press-Fit	Gold	0.64 mm
Mill-Max Manufacturing Corp. 8866-0-15-15-43-14-04-0	-55 C	125 °C	Beryllium Copper	0.51 mm	0.02 in	23.88 mm	0.94 in	Standard Tail	0.025 in	0.38 mm	0.015 "		1.45 mm	0.057 in	10 Áin	0.25 Ám	Press-Fit	Gold	0.64 mm
