53612 Series

Catalog

CONN HEADER VERT 40POS 2.54MM

Part	Style	Contact Length - Mating [x]	Contact Length - Mating	Termination	Number of Positions Loaded	Number of Positions	Shrouding	Insulation Material	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Features	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Color	Contact Type	Mounting Type	Contact Shape	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Material	Contact Finish - Mating	Contact Length - Post	Contact Length - Post
Amphenol ICC (FCI) 53612-S40-4	Board to Cable/Wire	0.23 in	5.84 mm	Solder	All	40	Shrouded - 4 Wall	Thermoplastic	Header	2.54 mm	0.1 in	16.26 mm	0.64 in	Keying Slot	0.12 in	3.05 mm	UL94 V-0	150 Áin	3.81 Ám	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Black	Male Pin	Through Hole	Square	2	15 µin	0.38 µm	Tin-Lead	Phosphor Bronze	Gold or Gold GXT™
Amphenol ICC (FCI) 53612-G20-8	Board to Cable/Wire	0.23 in	5.84 mm	Solder	All	20	Shrouded - 4 Wall	Thermoplastic	Header	2.54 mm	0.1 in	16.26 mm	0.64 in	Keying Slot			UL94 V-0	150 Áin	3.81 Ám	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Black	Male Pin	Surface Mount	Square	2	30 Áin	0.76 Ám	Tin-Lead	Phosphor Bronze	Gold or Gold GXT™

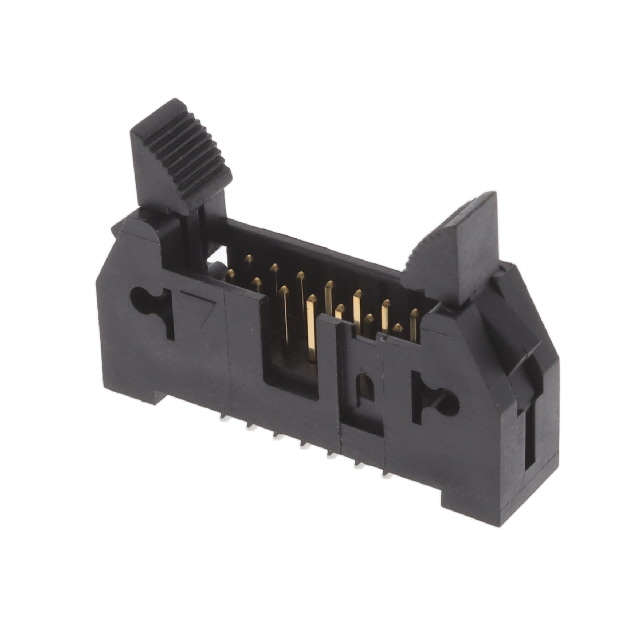

Amphenol ICC (FCI) 53612-G14-8LF	Board to Cable/Wire	0.23 in	5.84 mm	Solder	All	14	Shrouded - 4 Wall	Thermoplastic	Header	2.54 mm	0.1 in	16.26 mm	0.64 in	Keying Slot			UL94 V-0	100 µin	2.54 µm	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Black	Male Pin	Surface Mount	Square	2	30 Áin	0.76 Ám	Tin	Phosphor Bronze	Gold or Gold GXT™
Amphenol ICC (FCI) 53612-G40-4	Board to Cable/Wire	0.23 in	5.84 mm	Solder	All	40	Shrouded - 4 Wall	Thermoplastic	Header	2.54 mm	0.1 in	16.26 mm	0.64 in	Keying Slot	0.12 in	3.05 mm	UL94 V-0	150 Áin	3.81 Ám	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Black	Male Pin	Through Hole	Square	2	30 Áin	0.76 Ám	Tin-Lead	Phosphor Bronze	Gold or Gold GXT™
Amphenol ICC (FCI) 53612-S10-6	Board to Cable/Wire	0.23 in	5.84 mm	Solder	All	10	Shrouded - 4 Wall	Thermoplastic	Header	2.54 mm	0.1 in	16.26 mm	0.64 in	Keying Slot	0.15 in	3.81 mm	UL94 V-0	150 Áin	3.81 Ám	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Black	Male Pin	Through Hole	Square	2	15 µin	0.38 µm	Tin-Lead	Phosphor Bronze	Gold or Gold GXT™
Amphenol ICC (FCI) 53612-G14-7	Board to Cable/Wire	0.23 in	5.84 mm	Solder	All	14	Shrouded - 4 Wall	Thermoplastic	Header	2.54 mm	0.1 in	16.26 mm	0.64 in	Keying Slot			UL94 V-0	150 Áin	3.81 Ám	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Black	Male Pin	Through Hole	Square	2	30 Áin	0.76 Ám	Tin-Lead	Phosphor Bronze	Gold or Gold GXT™	0.675 in	17.15 mm
Amphenol ICC (FCI) 53612-S26-8LF	Board to Cable/Wire	0.23 in	5.84 mm	Solder	All	26	Shrouded - 4 Wall	Thermoplastic	Header	2.54 mm	0.1 in	16.26 mm	0.64 in	Keying Slot			UL94 V-0	100 µin	2.54 µm	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Black	Male Pin	Surface Mount	Square	2	15 µin	0.38 µm	Tin	Phosphor Bronze	Gold or Gold GXT™
Amphenol ICC (FCI) 53612-G20-6LF	Board to Cable/Wire	0.23 in	5.84 mm	Solder	All	20	Shrouded - 4 Wall	Thermoplastic	Header	2.54 mm	0.1 in	16.26 mm	0.64 in	Keying Slot	0.15 in	3.81 mm	UL94 V-0	100 µin	2.54 µm	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Black	Male Pin	Through Hole	Square	2	30 Áin	0.76 Ám	Tin	Phosphor Bronze	Gold or Gold GXT™
Amphenol ICC (FCI) 53612-G40-7	Board to Cable/Wire	0.23 in	5.84 mm	Solder	All	40	Shrouded - 4 Wall	Thermoplastic	Header	2.54 mm	0.1 in	16.26 mm	0.64 in	Keying Slot			UL94 V-0	150 Áin	3.81 Ám	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Black	Male Pin	Through Hole	Square	2	30 Áin	0.76 Ám	Tin-Lead	Phosphor Bronze	Gold or Gold GXT™	0.675 in	17.15 mm
Amphenol ICC (FCI) 53612-S20-6	Board to Cable/Wire	0.23 in	5.84 mm	Solder	All	20	Shrouded - 4 Wall	Thermoplastic	Header	2.54 mm	0.1 in	16.26 mm	0.64 in	Keying Slot	0.15 in	3.81 mm	UL94 V-0	150 Áin	3.81 Ám	0.1 in	2.54 mm	Latch Lock/Eject Hooks	Black	Male Pin	Through Hole	Square	2	15 µin	0.38 µm	Tin-Lead	Phosphor Bronze	Gold or Gold GXT™
