PPPC261 Series

Catalog

CONN HDR 26POS 0.1 GOLD PCB R/A

Part	Contact Material	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Connector Type	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Number of Positions Loaded	Voltage Rating	Number of Rows	Fastening Type	Insulation Color	Insulation Height	Insulation Height	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Post	Number of Positions	Contact Finish - Mating	Pitch - Mating	Pitch - Mating

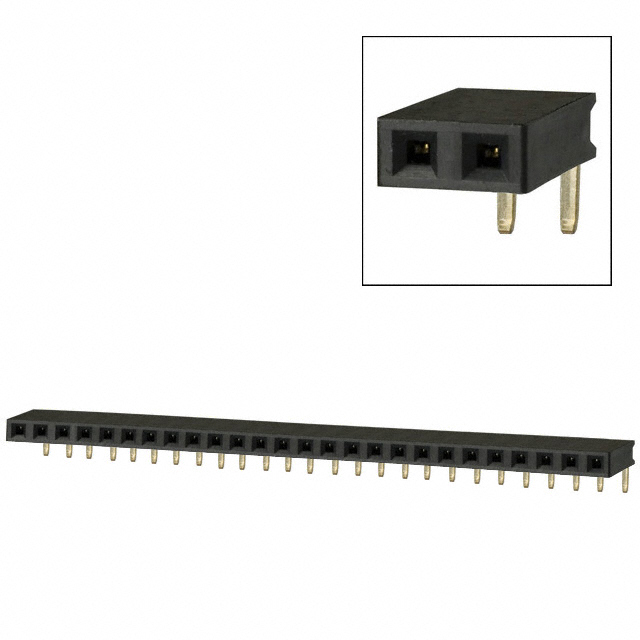

Sullins Connector Solutions PPPC261LGBN	Phosphor Bronze	Polyester	Square	Flash	Header	Female Socket	0.124 in	3.15 mm	Flash	-40 C	105 ░C	Right Angle Through Hole	Solder	All	250 V	1	Push-Pull	Black	0.1 in	2.54 mm	3 A	UL94 V-0	Gold	26	Gold	0.1 "	2.54 mm

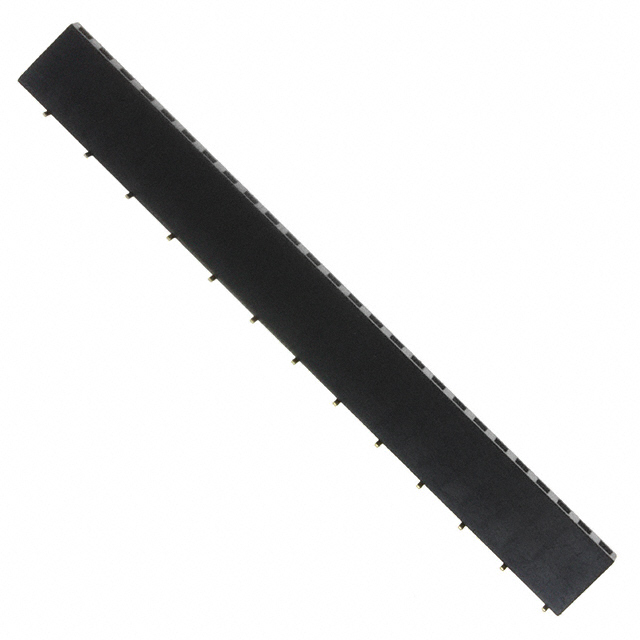

Sullins Connector Solutions PPPC261KFXC	Phosphor Bronze	Polyester	Square	Flash	Header Top or Bottom Entry	Female Socket			Flash	-40 C	105 ░C	Surface Mount	Solder	All	250 V	1	Push-Pull	Black	0.28 in	7.1 mm	3 A	UL94 V-0	Gold	26	Gold	0.1 "	2.54 mm
