109P0505 Series

Catalog

FAN AXIAL 52X15MM BALL 5VDC WIRE

Part	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Material - Blade	Termination	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	RPM	Approval Agency	Weight [custom]	Weight [custom]	Fan Type	Static Pressure	Static Pressure	Noise	Air Flow	Air Flow	Width [y]	Power (Watts)	Features
Sanyo Denki America Inc. 109P0505M702	Plastic	5.5 V	4.5 V	150 mA	Plastic	2 Wire Leads	Square	52 mm	52 mm	Ball	70 °C	-10 °C	5 V	3700 RPM	CSA TUV UL	0.122 lb	55.34 g	Tubeaxial	0.086 in H2O	21.5 Pa	22 dB(A)	0.202 mł/min	7.2 CFM	15 mm	0.75 W

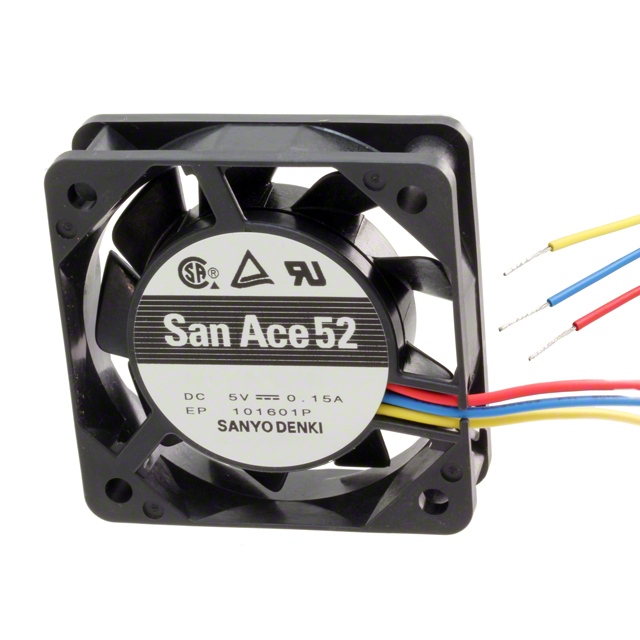

Sanyo Denki America Inc. 109P0505M701	Plastic	5.5 V	4.5 V	150 mA	Plastic	3 Wire Leads	Square	52 mm	52 mm	Ball	70 °C	-20 ░C	5 V	3700 RPM	CSA TUV UL	0.122 lb	55.34 g	Tubeaxial	0.086 in H2O	21.5 Pa	22 dB(A)	0.202 mł/min	7.2 CFM	15 mm	0.75 W	Locked Rotor Protection Speed Sensor (Tach)
