S14B-ZES Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

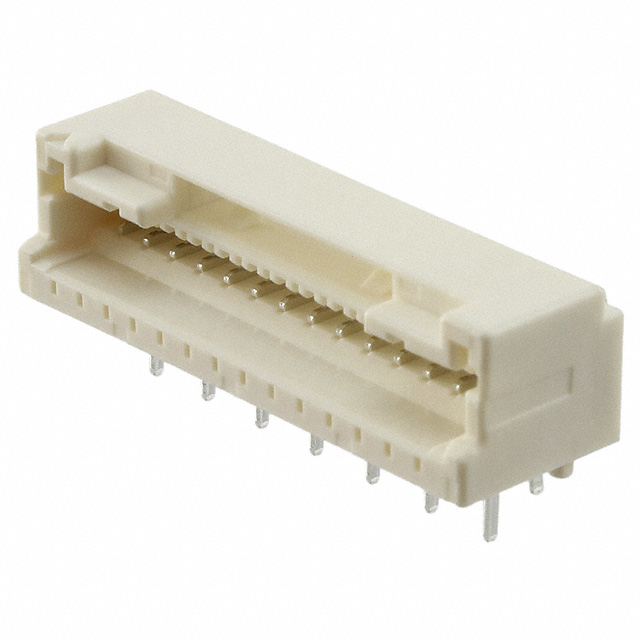

CONN HEADER R/A 14POS 1.5MM
| Part | Voltage Rating | Number of Positions | Insulation Material | Fastening Type | Contact Length - Post [x] | Contact Length - Post | Mounting Type | Style | Shrouding | Contact Type | Material Flammability Rating | Number of Rows | Insulation Color | Contact Shape | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Number of Positions Loaded | Contact Finish - Post | Current Rating (Amps) | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 100 V | 14 | Glass Filled Nylon 6/6 Polyamide (PA66) | Locking Ramp | 0.134 " | 3.4 mm | Right Angle Through Hole | Board to Cable/Wire | Shrouded - 4 Wall | Outer Shroud Contact | UL94 V-0 | 1 | Natural | Rectangular | Kinked Pin Solder | 85 °C | -25 °C | Header | All | Tin | 2 A | Copper Alloy | Board Guide |
